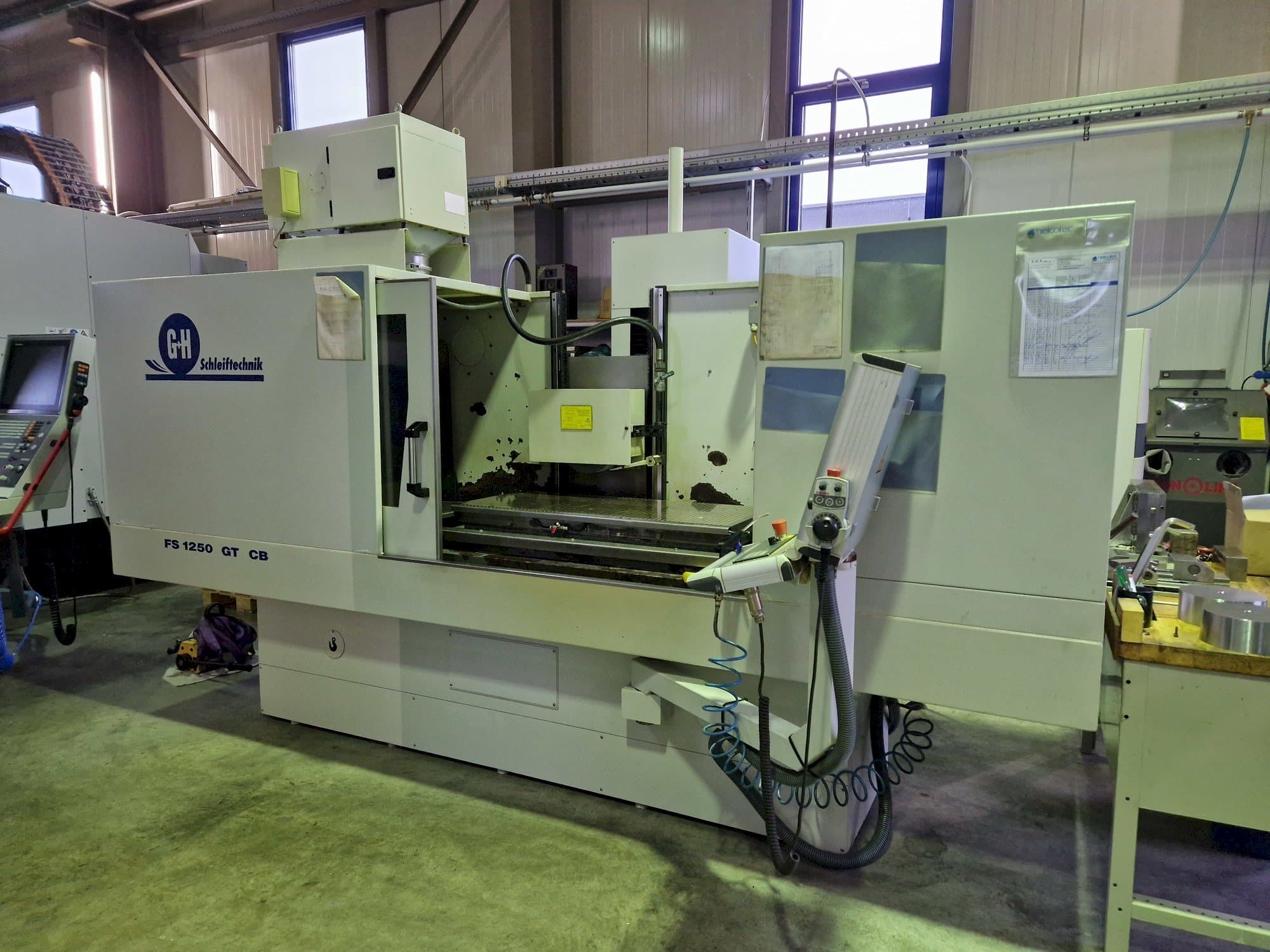

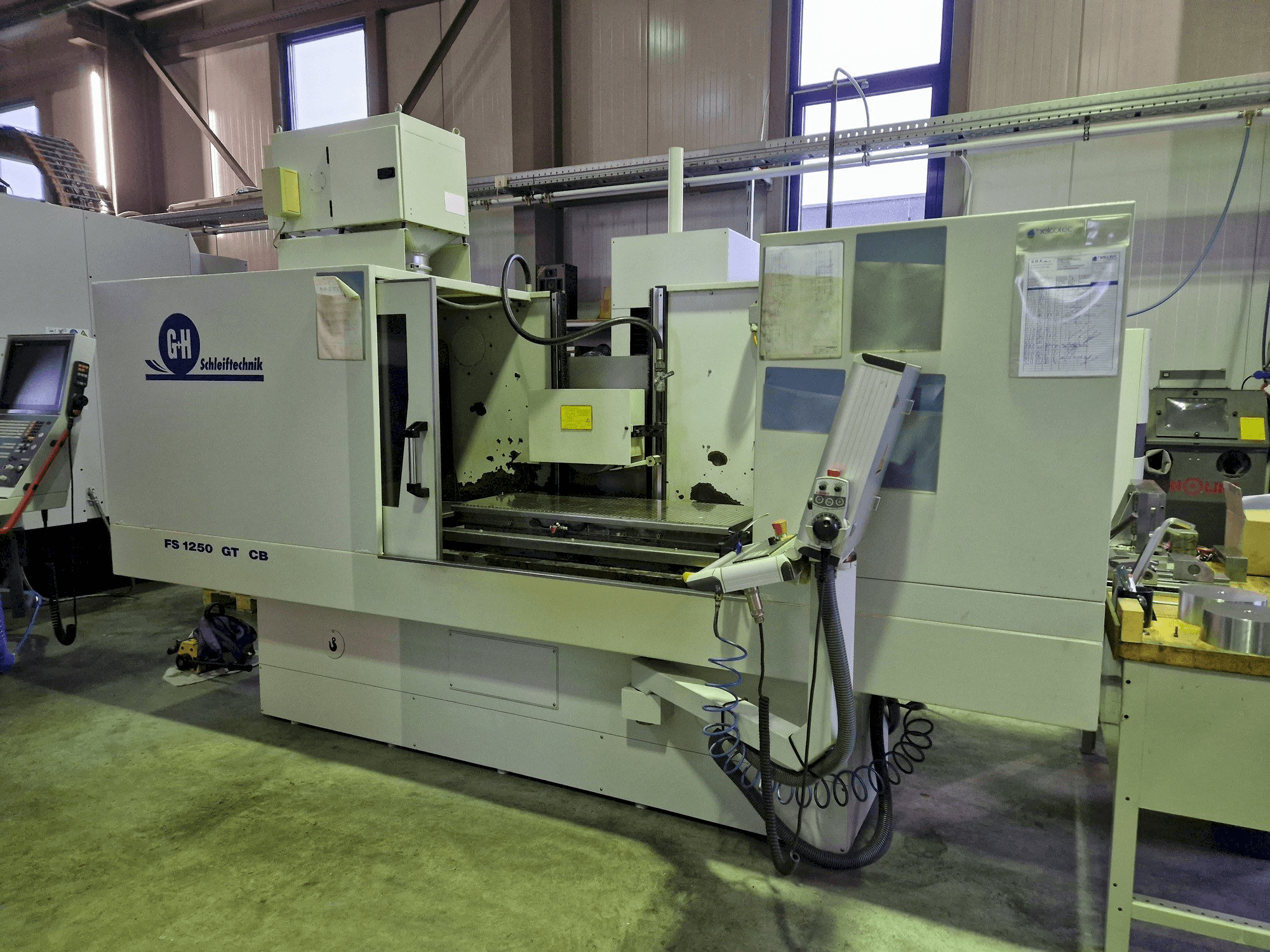

Front view of GEIBEL & HOTZ FS 1250 GT CB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

GEIBEL & HOTZ FS 1250 GT CB

GEIBEL & HOTZ - FS 1250 GT CBDE-GRI-GEI-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Geibel+Hotz FS 1250 GT CB Grinding machine

Show in original language

This Geibel+Hotz FS 1250 GT CB Grinding machine was manufactured in the year 2012 in Germany. It is equipped with a BS control unit. The machine has a spindle speed of 1400 rpm.

Overview

brand: GEIBEL & HOTZ
year: 2012
MODEL: FS 1250 GT CB
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
availability: Sold

Technical Information - GEIBEL & HOTZ FS 1250 GT CB

General Data

Measurements width: 3300 mm
Measurements depth: 4000 mm
Measurements height: 2700 mm
Machine weight: 8000 KG

Main drive

Spindle speed range: 1400 1/MIN

Table

Outer length: 1200 mm
Outer width: 500 mm
Table load: 1650 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Grinding area: 1200 x 500 × 425 mm
- - Table groove: 3 pieces
- - Table longitudinal stroke: 20- 1250 mm
- - Distance table to spindle center: 180 - 625 mm
- - Vertical speed: 50 - 2. 000 mm/min
- - Grinding wheel, standard: 400 x 100 × 127 mm
- - Paper belt filter
- - Magnetic separator
Qualitative Machine Benefits:
- - Spindle new bearing 2020

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
