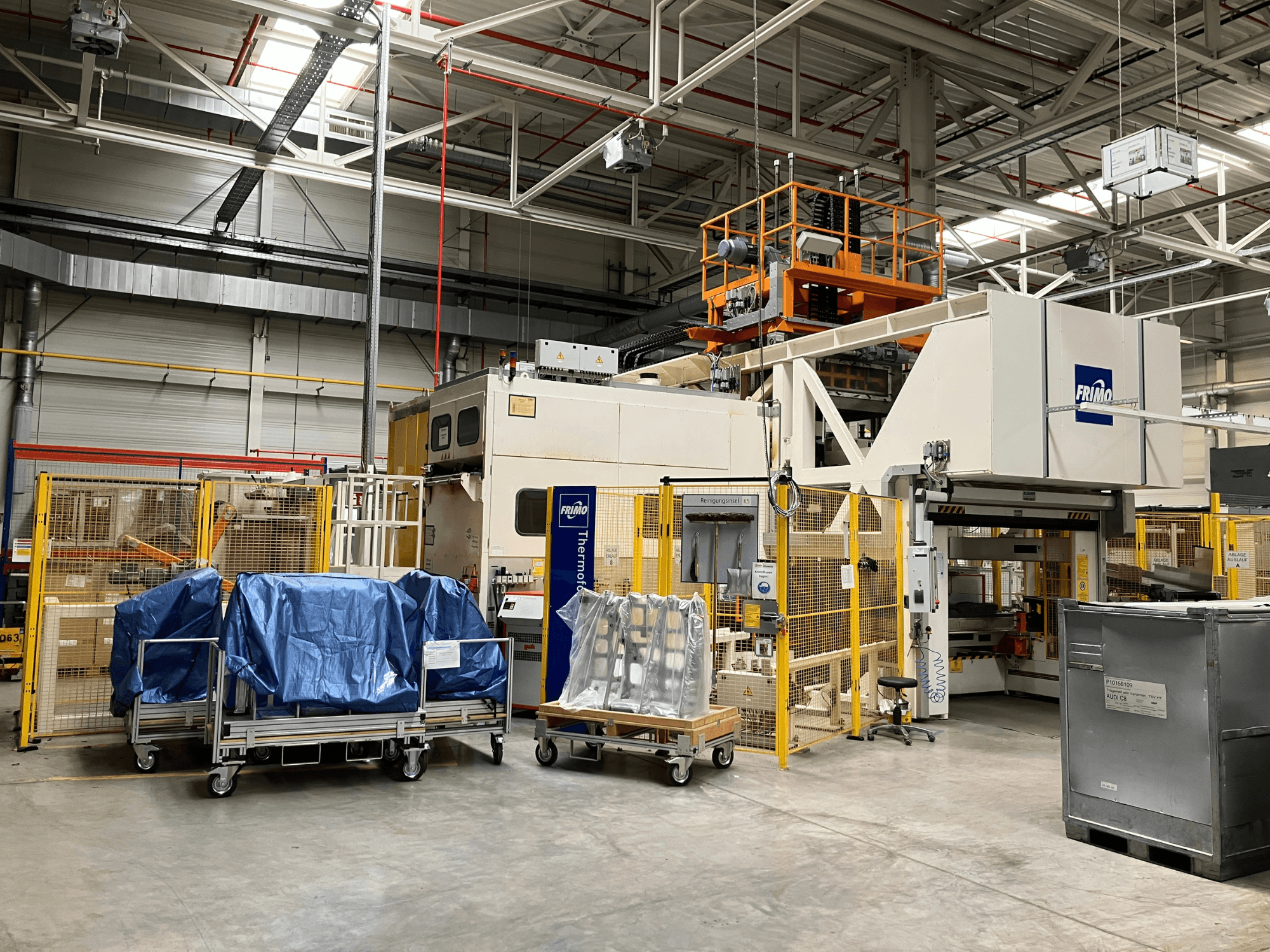

Thermoforming machine manufactured in 2014. This FRIMO FTL 80/200 Fullflex has a total of 1,260,207 cycles and a machine weight of 18,000 kg. It features dimensions of 15,000 x 9,600 x 7,650 mm and operates at a connected load of 172 kVA. If you are looking to get high-quality thermoforming capabilities, consider the FRIMO FTL 80/200 Fullflex machine we have for sale. Contact us for further details.
Overview
- brand: FRIMO
- year: 2014
- MODEL: FTL 80/200 Fullflex
- production hours: 44309
- application type: Other Plastic Processing Machinery
- Location: Germany
- machine type: Plastic Processing Machine
- control unit brand:
Technical Information - FRIMO FTL 80/200 Fullflex
Dimensions
- Machine Height: 7650 mm
- Machine Length: 15000 mm
- Machine Weight: 18000 kg
- Machine Width: 9600 mm
Additional Information
Total cycles: 1,260,207
Operating voltage: 3 / N / PE AC 400 / 230 V
Frequency: 50 Hz
Control voltage: AC 120 V / DC 24 V
Valve voltage: DC 24 V
Connected load: 172 kVA
Nominal current: L1: 279 A, L2: 275 A, L3: 261 A
Compressed air class: 4
Pneumatic connection: G 1/2"
Air consumption: 150 l/cycle
Operating pressure: 6 bar
Cooling water inlet: G 1"
Cooling water max pressure: 3 bar
Cooling water max temp: 90° C
Lubrication interval: 800 cycles
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
