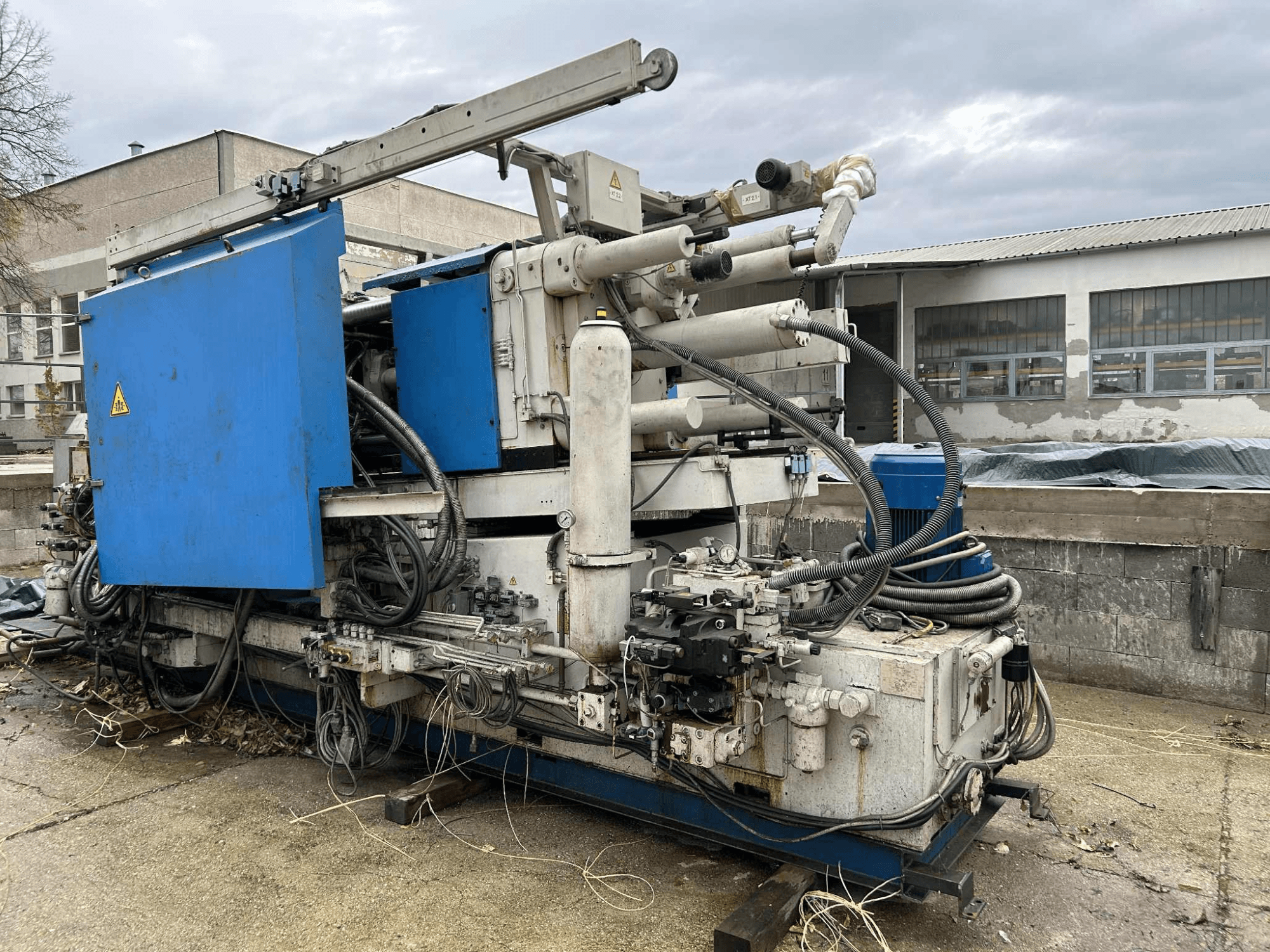

This FRECH DAM 315 S-RC was manufactured in 1999. It features a locking force of 3150 kN and a closing stroke of 500 mm, making it suitable for various applications. The die height ranges from 300 to 700 mm, and the platen size is 900 × 900 mm. Consider the opportunity to buy this FRECH DAM 315 S-RC machine. Contact us for further details.
Overview
- brand: FRECH
- year: 1999
- MODEL: DAM 315 S-RC
- application type: Other Machine Tools
- Location: Hungary
- machine type: Machine Tool
Additional Information
Locking force: 3150 kN
Closing stroke: 500 mm
Ejector stroke: 120 mm
Die height (min–max): 300–700 mm
Platen size: 900 × 900 mm
Space between tie bars: 550 × 550 mm
Shot position: 0 / -120 mm
Maximum casting force: 158 kN
Casting stroke: 250 mm
Injection plunger diameter: 70 / 80 / 90 / 100 mm
Casting volume: 514 / 791 / 1105 / 1455 cm³
Specific injection pressure: 410 / 316 / 249 / 201 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
