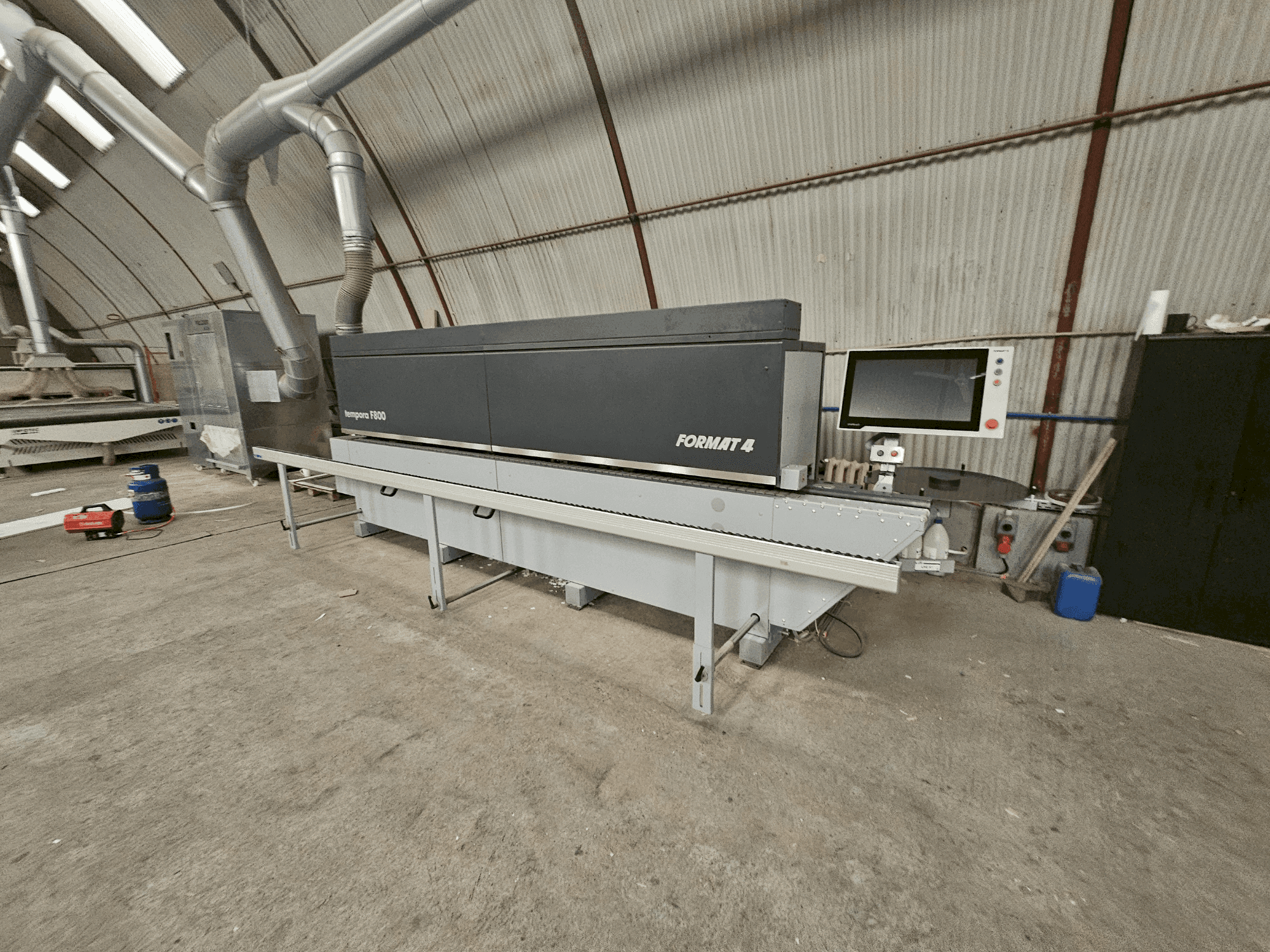

This FORMAT4 Tempora F800 60.12/2 E edgebander was manufactured in 2022. It features a Smartouch 21" control panel, E-motion control system, and a chain feed system with automatic lubrication. The machine includes a pre-milling unit with diamond cutters and a glue application system compatible with EVA and PUR. Consider the opportunity to buy this FORMAT4 Tempora F800 60.12/2 E edgebander. Contact us for more information.
Overview
- brand: FORMAT4
- year: 2022
- MODEL: Tempora F800 60.12/2 E
- application type: Edge Banding
- Location: Poland
- machine type: Edgebander
Additional Information
Additional equipment
- Control Panel: Smartouch 21" Control System: E-motion // control system with motorized adjustment (accuracy 0.01 mm)
- Chain Feed System: With automatic lubrication
- Top Pressure Beam: Motorized height adjustment
- Pre-milling Unit: 2 x 2.2 kW motors, diamond cutters, up to 3 mm removal
- Glue Application System: Compatible with EVA and PUR, fast heat-up (8 min)
- Additional Glue Tank: For fast glue change
- Edge Pressure Unit: 1 driven + 2 passive rollers, pneumatic control
- Trimming Unit: 2 motors (0.5 kW), adjustable 0–15°
- Multi-functional Trimming Unit: 2 motors, 0.75 kW, top and bottom
- Corner Rounding Unit: Edge thickness 0.4 – 3 mm, panel height 10 – 60 mm, 2 independent motors, 12000 rpm
Machine Benefits
Technical Machine Benefits
- Feed speed: 12 m/min (optional: 20 m/min)
- Min. Panel length: 140 mm
- Min. Panel width: 70 mm
- Panel height range: 8 – 60 mm
- Edge thickness: 0. 4 – 12 mm
- Glue pot capacity: 1. 5 kg
- Guillotine for coil edge thickness: 0. 4 – 3 mm
- Electric load: 3x 400v, 50 hz
Extra Information
Additional Equipment Profile Scraper Unit: Motorized and pneumatically retractable Buffing Unit: Top and bottom Antistatic, Cleaning, and Release Spray Systems Flat Scraper Unit: Pneumatically controlled Infrared Edge Detection System Edge Magazine: For strips up to 120 mm wide Rotary Edge Reel Holder: Ø 770 mm
