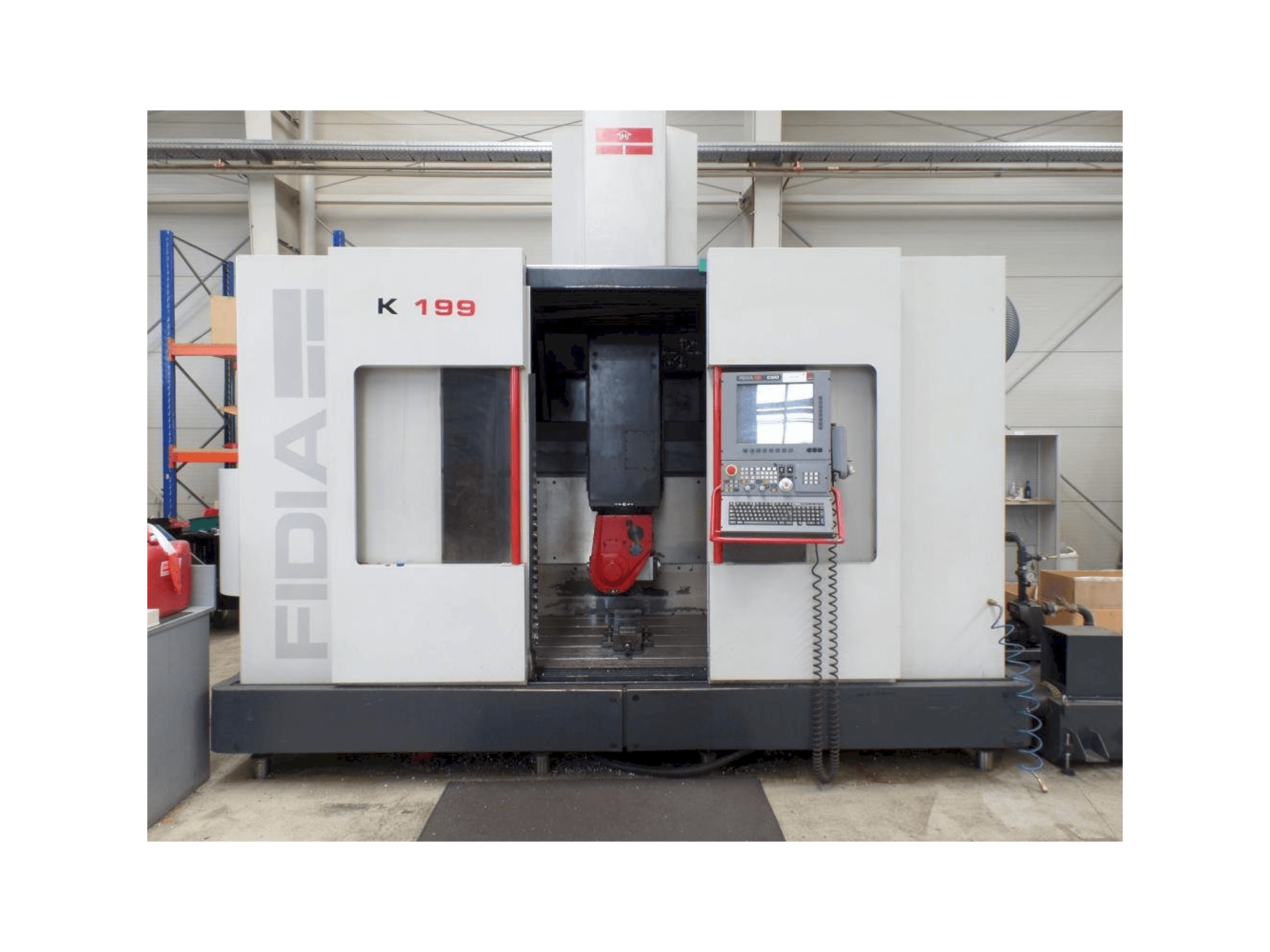

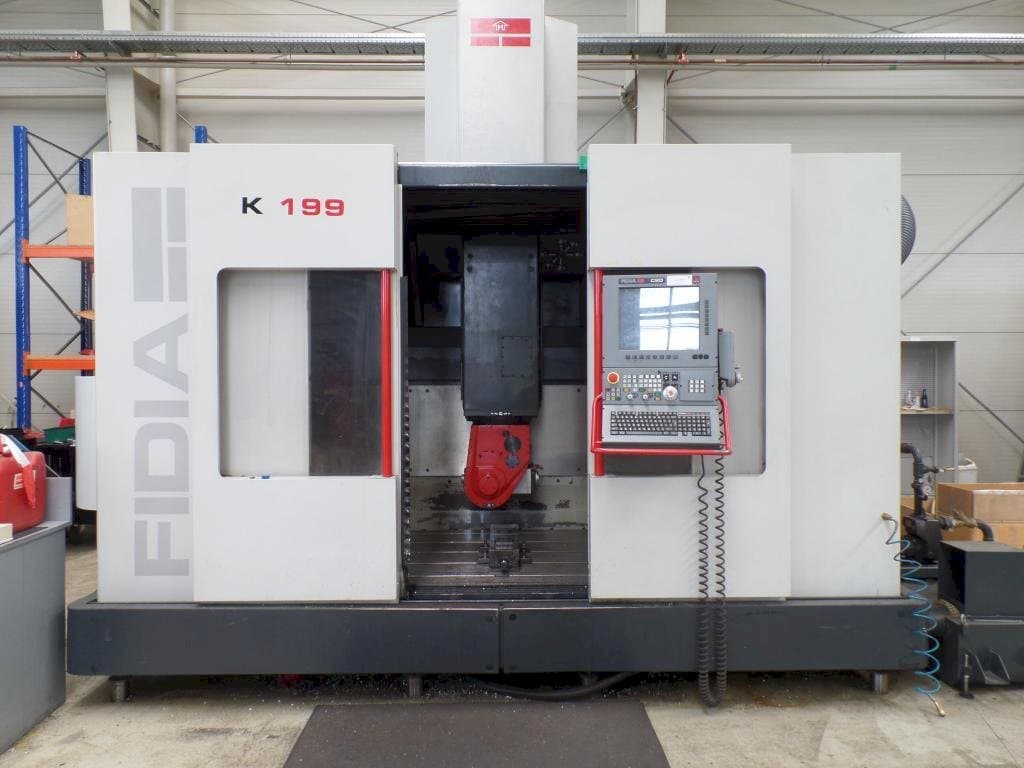

Front view of Fidia K199  machine

Fidia K199

Fidia - K199

2004

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This FIDIA K199 Vertical Machining center was manufactured in the year 2004 and has 117102 production hours, of which 41478 are spindle hours. It is equipped with a Fidia C20 PCD 0672 control unit and has 5 axis. The machine has a spindle speed of 240-24000 rpm.

Overview

  • brand: Fidia
  • year: 2004
  • MODEL: K199
  • production hours: 117102
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Fidia
  • GINDUMAC ID: DE-MIL-FID-2004-00001

Technical Information

Control Unit

  • Brand: Fidia
  • Model: C20 PCD 0672

Main drive

  • Spindle speed range: 240-24000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1800 mm
  • Y-AXIS Movement: 900 mm
  • Z-AXIS Movement: 850 mm
  • A_(Working_length) Movement: +95/-110° MM
  • C_(Stroke) Movement: +/- 200° MM

Table

  • Outer length: 2000 mm
  • Outer width: 1250 mm
  • Table load: 12000 kg

Tools

  • Max weight: 8 kg
  • Max tool diameter: 100/75 mm
  • Max tool length: 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Rapid traverse rate: 30 m/min
      • - Inner diameter in front bearing: 70 mm
      • - Outer diameter of the spindle: 210 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
