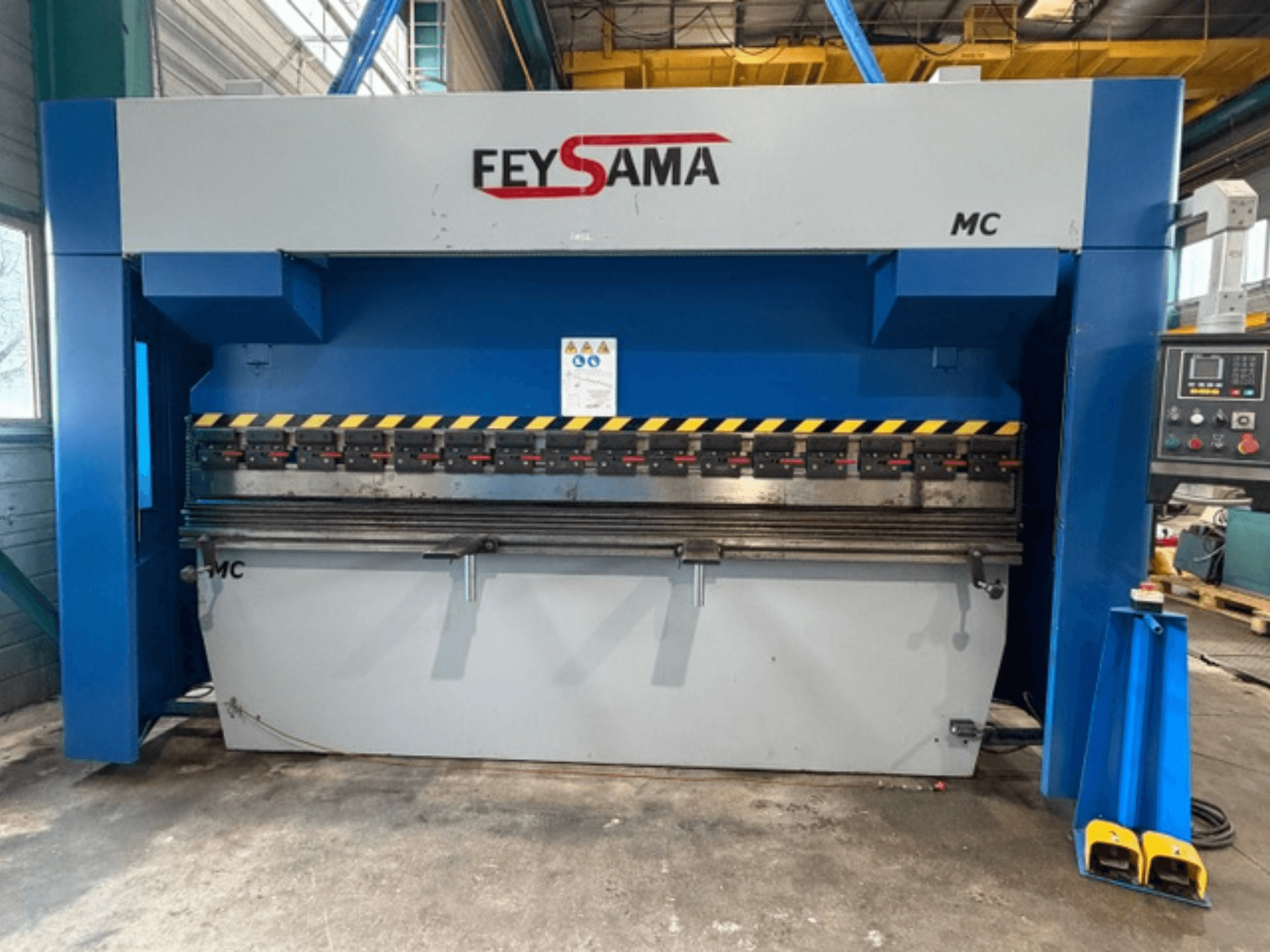

Press brake manufactured in 2019. This FEYSAMA MCCH 6/3050 features a press force of 135 tons and a bending length of 3200 mm. It includes a programmable stroke of 160 mm and a backgauge with a stroke of 800 mm. If you are looking to get high-quality bending capabilities, consider the FEYSAMA MCCH 6/3050 press brake we have for sale. Contact us for further details.
Overview
- brand: FEYSAMA
- year: 2019
- MODEL: MCCH 6/3050
- production hours: 2740
- application type: Bending
- Location: France
- machine type: Press Brake
Technical Information - FEYSAMA MCCH 6/3050
Movement
- Number of Axes: 2
Technical Specification
- Bending Length: 3200 mm
- Pressing Force: 135 Kn
Additional Information
Operating hours: 2740
Distance between uprights: 2700 mm
Throat depth: 415 mm
Max distance ram/table: 390 mm
Programmable stroke: 160 mm
Backgauge with ball screw, stroke: 800 mm
CNC control: ESTUN E21, 2-axis (controls bending dimensions and backgauge)
Condition: Very good
Additional equipment
Quick clamping tool holder
Bending punch: 120 mm height, 88° angle, segmented
Multi-V die: 95 × 95 mm, V openings 10/12/16/20/25/30/48/60 mm
2 backgauge fingers with micrometric adjustment and manual spacing
2 adjustable front supports
Safety light curtains
LED work area lighting
User manual, electrical and hydraulic diagrams
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
