FELDER - K 945SPL-SAW-FEL-2022-00001

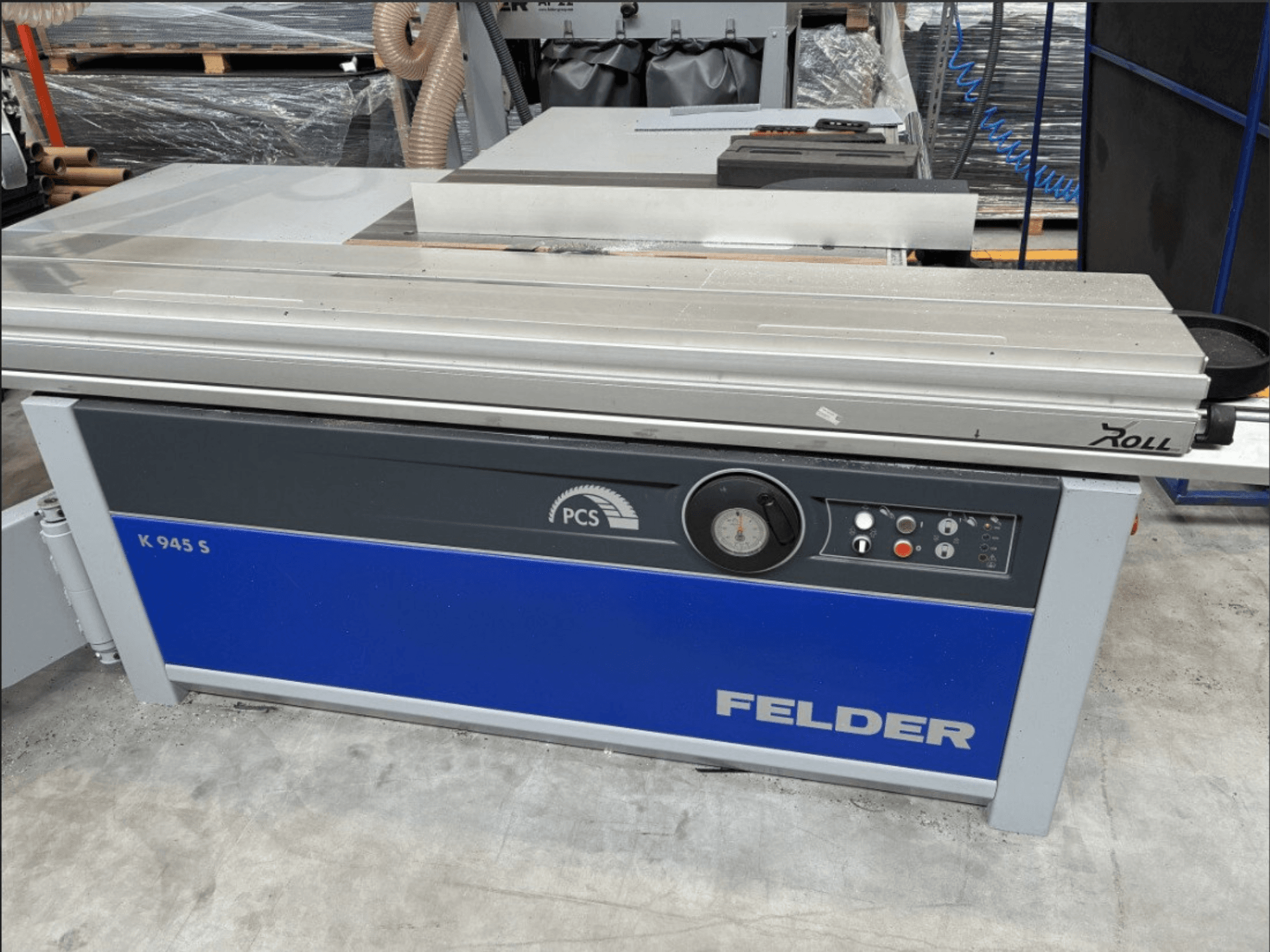

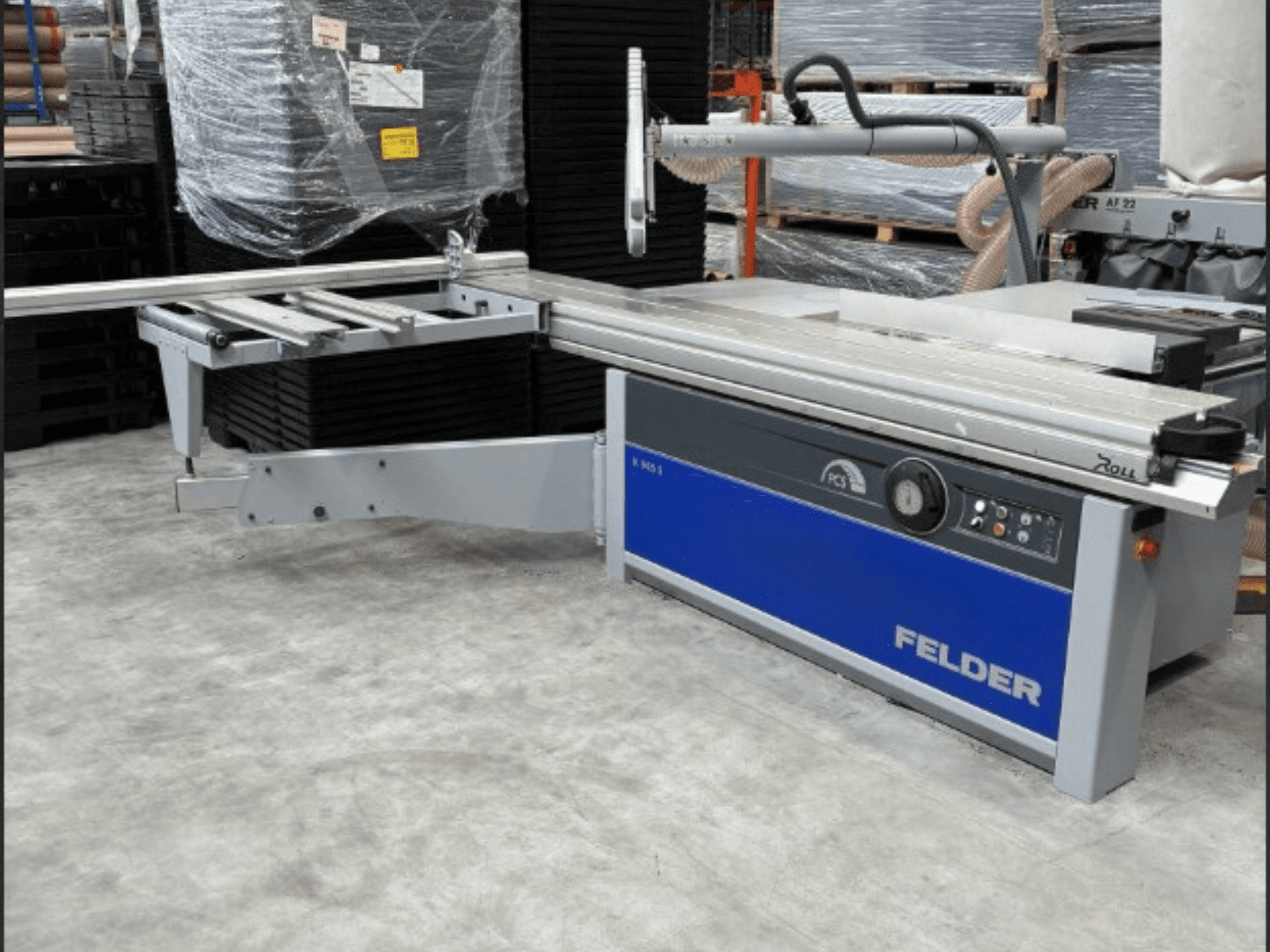

• FELDER K 945 S sliding table saw

• Manual blade angle adjustment with angle display and handwheel

• Tilting saw unit 90°–45°

• Blade diameter range: 250–450 mm

• Maximum cutting height: 155 mm

• Electric height adjustment

• Maximum cutting width: 1250 mm

• Main saw motor 5.5 kW (7.5 HP), 3x400 V, soft start, CE brake

• Three spindle speeds: 3500 / 4500 / 5500 rpm

• PCS (Preventive Contact System) safety system with optical status indicator; resettable after activation

• Antistatic belt for PCS system

• Sliding table, cutting length 2800 mm, anodized aluminum

• 10-year warranty on the X-Roll sliding table system

• Parallel fence with round guide bar, D = 50 mm

• Rip fence 2600 mm with clamping system for extension table 1300/1500

• Extension table for cutting lengths 2500–3200 mm

• Support surface: 1150 x 640 mm

• Crosscut fence 3200 mm with 2 flip stops

• Overhead guard for 1250 mm cutting width with 100 mm dust extraction connection

• Machine stand for K 945 S, cast iron saw table; operating tools included

• User manual in Czech

• Additional warranty: 3 years on machine parts (valid when commissioned by an authorized FELDER technician)

• Transport packaging for sliding table

• Standard pallet: 2100 x 1500 x 1500 mm

Additional equipment

• Dust extraction system:

  • Mobile dust extractor AF 22

  • 4.0 HP (3.0 kW), 3x400 V, 50/60 Hz

  • Standard dust filter

  • Connection ports: 120 mm and 80 mm

• Dust extraction hoses:

  • 4 x industrial extraction hose H/SE Ø120 mm

  • 4 x industrial extraction hose H/SE Ø100 mm

  • Heavy-duty, abrasion-resistant, flame-retardant; smooth internal surface

• Spare parts included:

  • Adjustable support rail (106ND)

  • Cross roller rail plate (Fen-Grau)

  • Clamp rail lower section

  • Compression spring

  • Clamp rail upper section

  • Additional machine spare part (222MB)
