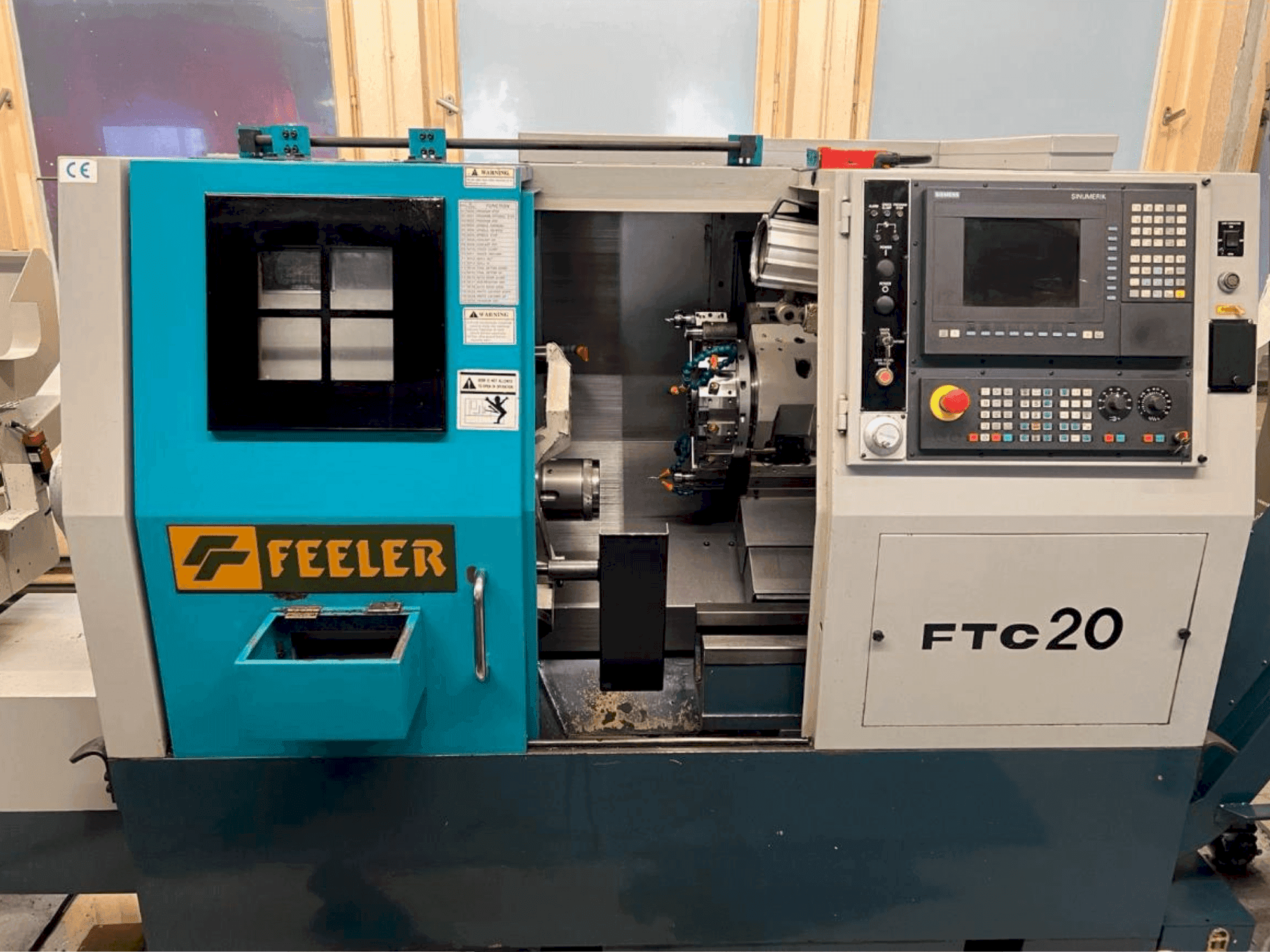

This Feeler FTC 20 was manufactured in 1999. It features a swing over bed of 560 mm and a maximum turning diameter of 350 mm. The spindle operates at speeds up to 3500 rpm, supported by a robust 15 kW motor. Ideal for precision turning with its 8 tool stations and manual tailstock. Consider the opportunity to buy this Feeler FTC 20 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Feeler
- year: 1999
- MODEL: FTC 20
- application type: Turning
- Location: Romania
- machine type: Horizontal Turning Machine
Technical Information - Feeler FTC 20
Dimensions
- Machine Depth: 2630 mm
- Machine Height: 1800 mm
- Machine Weight: 3550 kg
Movement
- X-axis Travel: 175 mm
- Z-axis Travel: 380 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 3500 RPM
Additional Information
Chuck diameter: 210 mm
Bar capacity: Ø52 mm
Maximum turning length: 380 mm
Maximum turning diameter: Ø350 mm
Spindle nose: a2-6
Hole through spindle: 62 mm
Spindle bore taper: 1:20
Turret Number of tool stations: 8 sets
Tool size (square): 25 mm
Inside diameter of boring bar holder: Ø40 mm
Turret indexing time: 0.13 sec
Tailstock travel type: Manual
Tailstock travel: 300 mm
Quill travel type: Hydraulic
Quill travel: 80 mm
Quill diameter: 65 mm
Quill taper: MT #4
Machine comes with bar feeder.
Additional equipment
Coolant tank capacity: 100 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
