FASSLER - HMX 400LV-HON-FAS-2005-00001

Name: FASSLER HMX 400
Brand: FASSLER
SKU: LV-HON-FAS-2005-00001
Price: 5968800 INR
Availability: InStock

Rs. 5,968,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FASSLER HMX 400 For Sale | gindumac.com

Show in original language

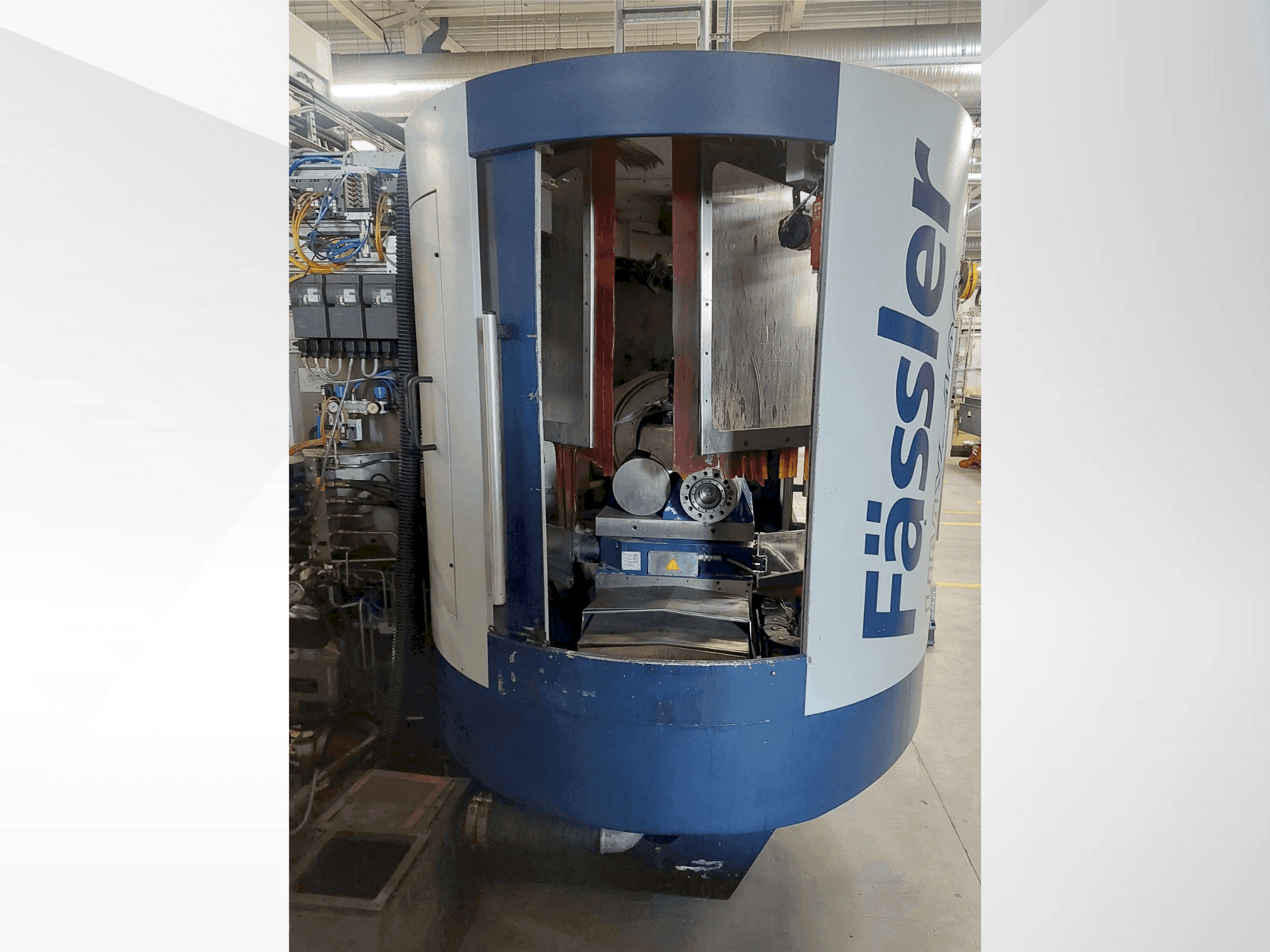

This 9-axis FASSLER HMX 400 horizontal honing machine was manufactured in 2005. It features a comprehensive control system with Sinumerik 840 D, ensuring precision and ease of use. With a honing stone diameter of 400 mm and a machinable workpiece diameter up to 350 mm, it is ideal for both external and internal honing. Consider the opportunity to buy this FASSLER HMX 400 horizontal honing machine. Contact us for more information about this machine.

Overview

brand: FASSLER
year: 2005
MODEL: HMX 400
application type: Honing
Location: Latvia
machine type: Horizontal Honing Machine
control unit brand: SIEMENS

Technical Information - FASSLER HMX 400

General Data

Measurements width: 2350 MM
Measurements depth: 3150 MM
Measurements height: 2180 MM
Machine weight: 10500 KG

Control Unit

Brand: SIEMENS
Model: Sinumerik 840 D

Main drive

Number of axis: 9

Additional Information

Machine Benefits

Qualitative Machine Benefits

Workpiece (c2- and c3-axes) rpm, stepless: 0-9000 1/min
Machinable workpiece diameter (external honing): 20-320 mm
Machinable workpiece diameter (internal honing): 50-350 mm
Max. Workpiece-shaft length: 400 mm
Max. Speed, honing stone drive: 1500 1/min
Max. Honing force (max. Process load): 1000 n
Honing-stone diameter: 400 mm

Technical Machine Benefits

Swivel drive (a-axis) speed: 0-112°/s
Swivel range a-axis: ±45°
Swivel drive (b1-axis) speed: 0-12°/s
Slewing range b-axis: ±10°
Cross slide (x-axis) infeed travel: -180/+5 mm
Cross slide (x-axis) speed: 0-7500 mm/min
Longitudinal slide (z1-axis) travel: -400/+100 mm
Longitudinal slide (z1-axis) speed: 0-8000 mm/min
Longitudinal slide (z2-axis) travel: -627/-87 mm
Longitudinal slide (z2-axis) speed: 0-50000 mm/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
