FANUC Robodrill Alpha T21iF Vertical Machining center

Show in original language

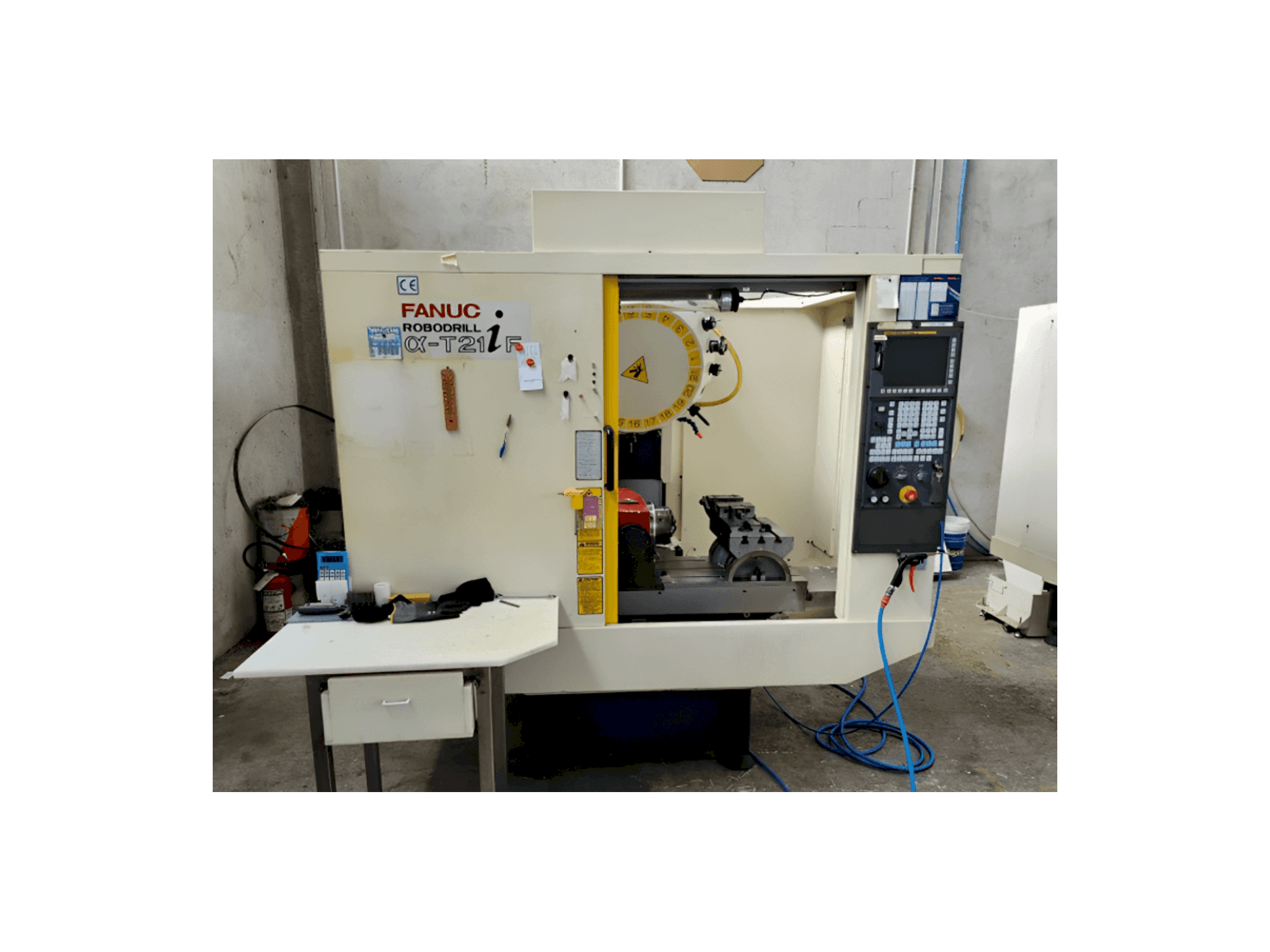

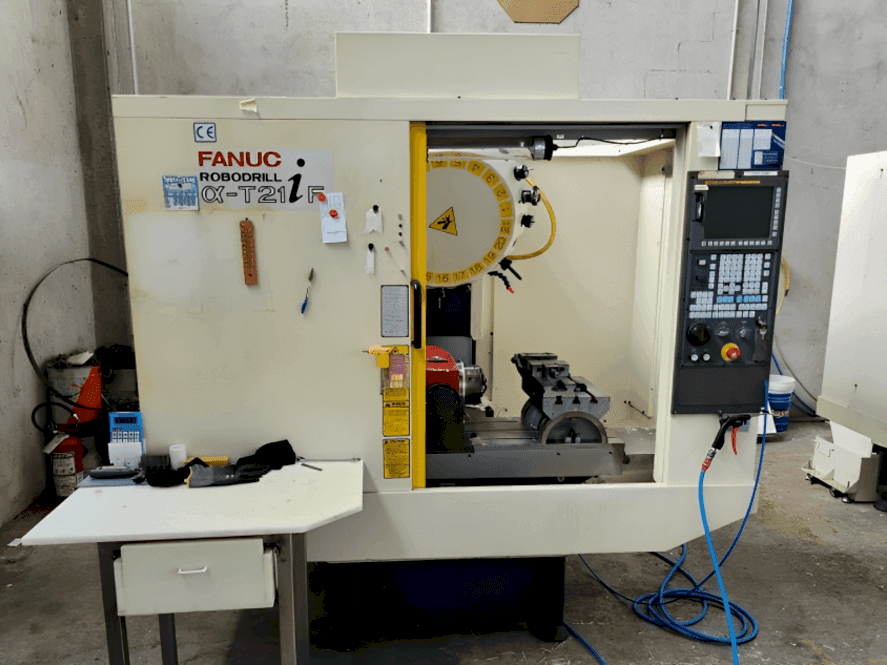

This FANUC Robodrill Alpha T21iF Vertical Machine Center was built in the year 2008. It is equipped with a Fanuc 31i A5 CNC control unit and has 5 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: FANUC
year: 2008
MODEL: Robodrill Alpha T21iF
application type: Milling
Location: Italy
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Fanuc

Technical Information - FANUC Robodrill Alpha T21iF

General Data

Measurements width: 1570 mm
Measurements depth: 2040 mm
Measurements height: 2240 mm
Machine weight: 2100 kg

Control Unit

Brand: Fanuc
Model: 31i A5

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5,5 kw
Number of axis: 5

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 54 M/Min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 54 M/Min
Z-AXIS Movement: 330 mm
Z-AXIS Rapid traverse: 54 M/Min

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 250 kg

Tools

Slots in storage: 21

Additional equipment

- Continuous Table 5th Axis T5x 200
