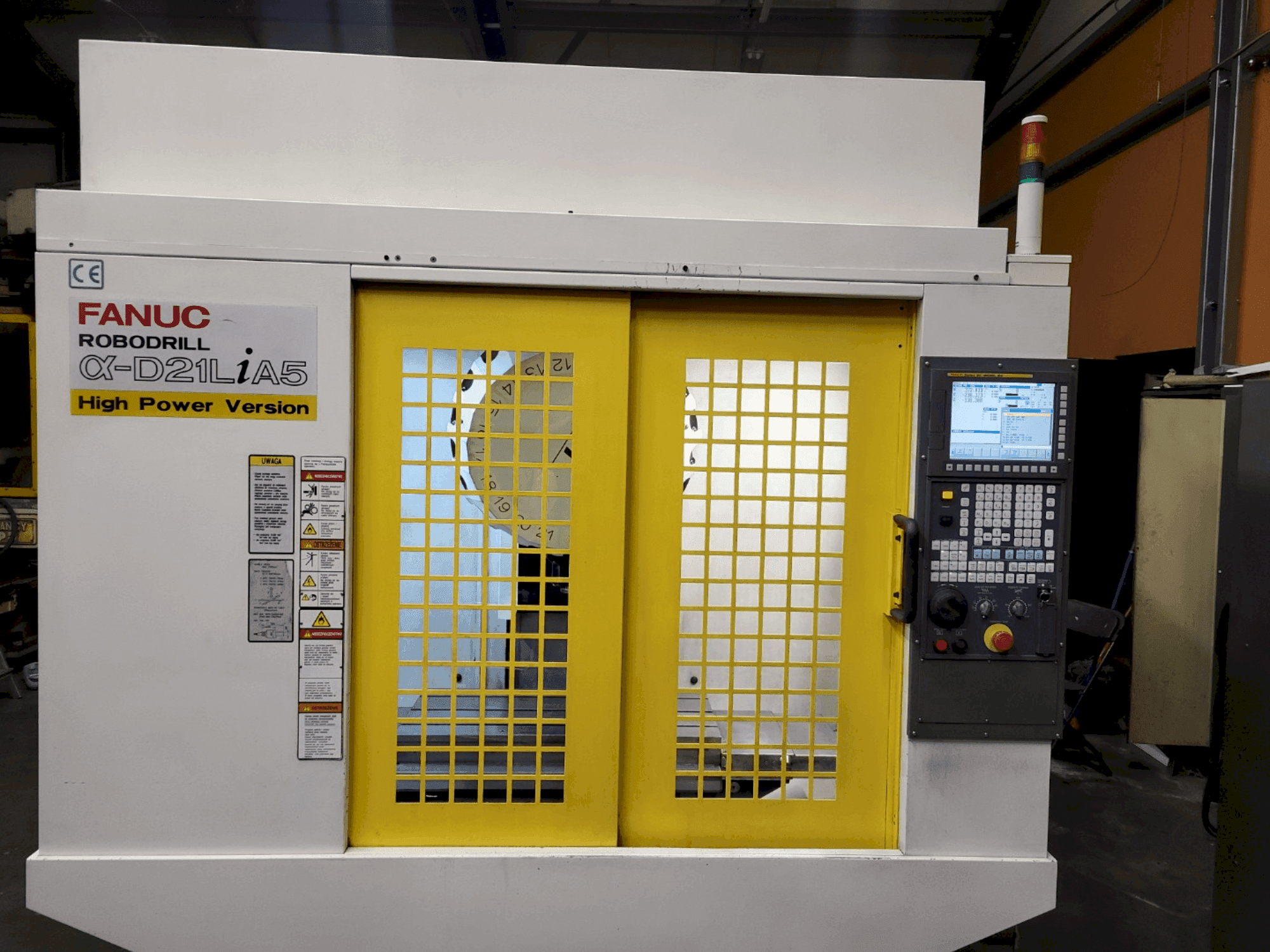

Front view of FANUC Robodrill α-D21LiA5  machine

FANUC - Robodrill α-D21LiA5PL-MIL-FAN-2014-00001

Rs. 3,743,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FANUC Robodrill α-D21LiA5 was manufactured in 2014. A vertical machining centre featuring a spindle speed of 10,000 rpm, BT30 taper, and a 21-tool capacity magazine. It offers rapid feeds up to 54,000 mm/min in X and Y, and 48,000 mm/min in Z. Equipped with a coolant bathtub and pump, it's ready for any task. If you are looking to get high-quality milling capabilities consider the FANUC Robodrill α-D21LiA5 machine we have for sale. Contact us for more information.

Overview

  • brand: FANUC
  • year: 2014
  • MODEL: Robodrill α-D21LiA5
  • production hours: 8730
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - FANUC Robodrill α-D21LiA5

Control Unit

  • Brand: FANUC
  • Model: Series 31i-MODEL B5

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: BT30
  • Tool taper: BT30
  • Number of axis: 3

Movement

  • X-AXIS Movement: 700 mm
  • X-AXIS Working Feed: 30000 mm/min
  • X-AXIS Rapid traverse: 54000 mm/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Working Feed: 30000 mm/min
  • Y-AXIS Rapid traverse: 54000 mm/min
  • Z-AXIS Movement: 330 mm
  • Z-AXIS Working Feed: 30000 mm/min
  • Z-AXIS Rapid traverse: 48000 mm/min

Tools

  • Slots in storage: 21

    Additional equipment

    • - Equipped with a coolant bathtub and pump

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Transformer power supply: 400-200 vac
        • - Tool exchange: on the shortest line
      • Qualitative Machine Benefits:
        • - The machine is in very good working condition, ready for tests. Bearings replaced and ball screw gears in x and y axes regenerated.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
