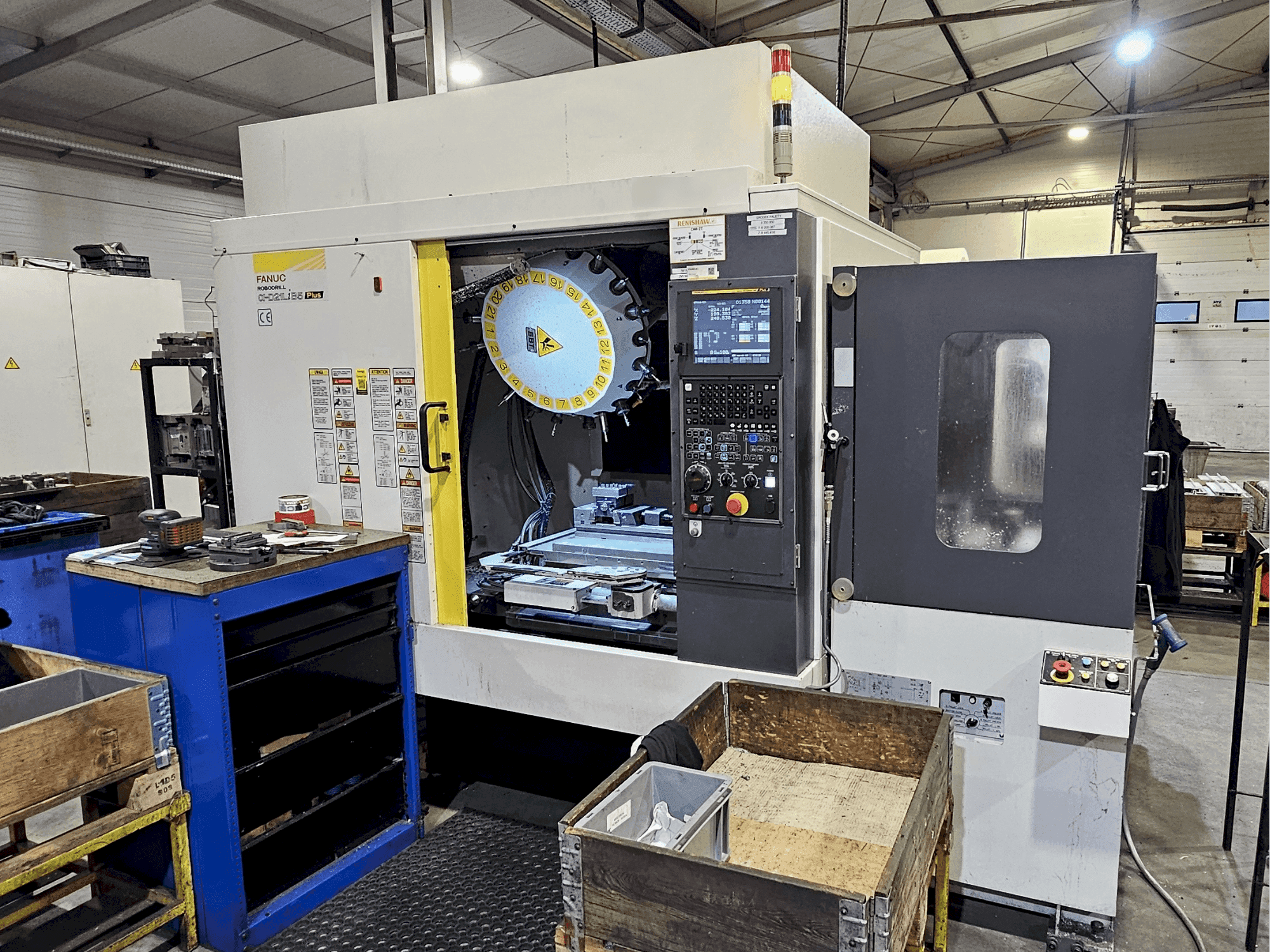

Front view of FANUC Robodrill α-D21L iB 5 Plus machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill α-D21L iB 5 Plus

Photo Gallery

FANUC - Robodrill α-D21L iB 5 PlusPL-MIL-FAN-2022-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FANUC Robodrill α-D21L iB 5 Plus | Machining

Show in original language

This 3-axis FANUC Robodrill α-D21L iB 5 Plus was manufactured in 2022. Ideal for precision vertical machining, this model offers robust performance and reliability. If you are looking to get high-quality milling capabilities, consider the FANUC Robodrill α-D21L iB 5 Plus machine we have for sale. Contact us for more information.

Overview

brand: FANUC
year: 2022
MODEL: Robodrill α-D21L iB 5 Plus
production hours: 3057
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill α-D21L iB 5 Plus

Control Unit

Brand: FANUC
Model: Series 31i-MODEL B5 Plus

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 35 Nm / 26 kW
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Table

Outer length: 850 mm
Outer width: 410 mm
Min distance between vertical spindle and table: 250 mm
Max distance between vertical spindle and table: 580 mm
Table load: 300 kg

Tools

Slots in storage: 21
Max weight: 3 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Additional equipment

- Integrated Pallet Changer: KAWATATEC SP3970G
- Provides automatic workpiece handling for increased efficiency

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
