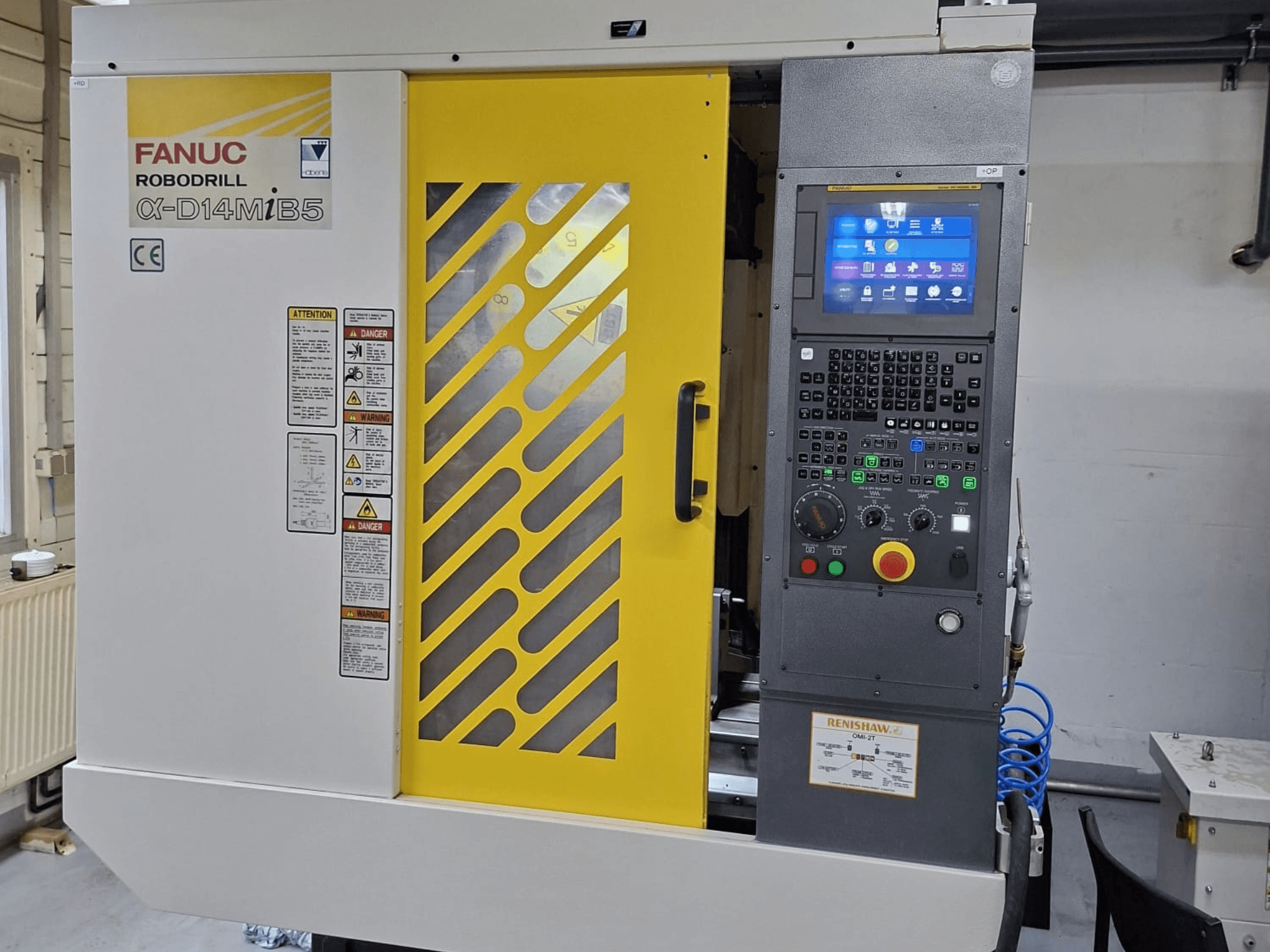

This 4-axis FANUC ROBODRILL α-D14MiB5 was manufactured in 2020. It features a spindle speed of 10,000 rpm and a 100 mm column extension. The machine includes a rotary table DDR260iB and a Renishaw OMP40 3D spindle probe for enhanced precision. If you are looking to get high-quality machining capabilities, consider the FANUC ROBODRILL α-D14MiB5 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2020
- MODEL: ROBODRILL α-D14MiB5
- production hours: 1284
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - FANUC ROBODRILL α-D14MiB5
Dimensions
- Machine Weight: 2200 kg
Movement
- Number of Axes: 4
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Big Plus spindle interface
100 mm column extension
Machine roof
Electrical requirements: 3-phase, 10 kVA, 200–220 V AC, 50/60 Hz, SCCR 2.5 kA
Additional equipment
Rotary table FANUC DDR260iB with face plate
Special setup: DDR 4th axis horizontal
Lang Quick-Point round plate 96 adapted for FANUC DDR/DTT
Renishaw OMP40 3D spindle probe with OMI-2T receiver
Häberle coolant tank HK250 (250 l capacity)
External coolant pump 220 l/min with flow monitoring
Manual band filter
Chip tray with perforated plate
Commissioning of Häberle machine and coolant system included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
