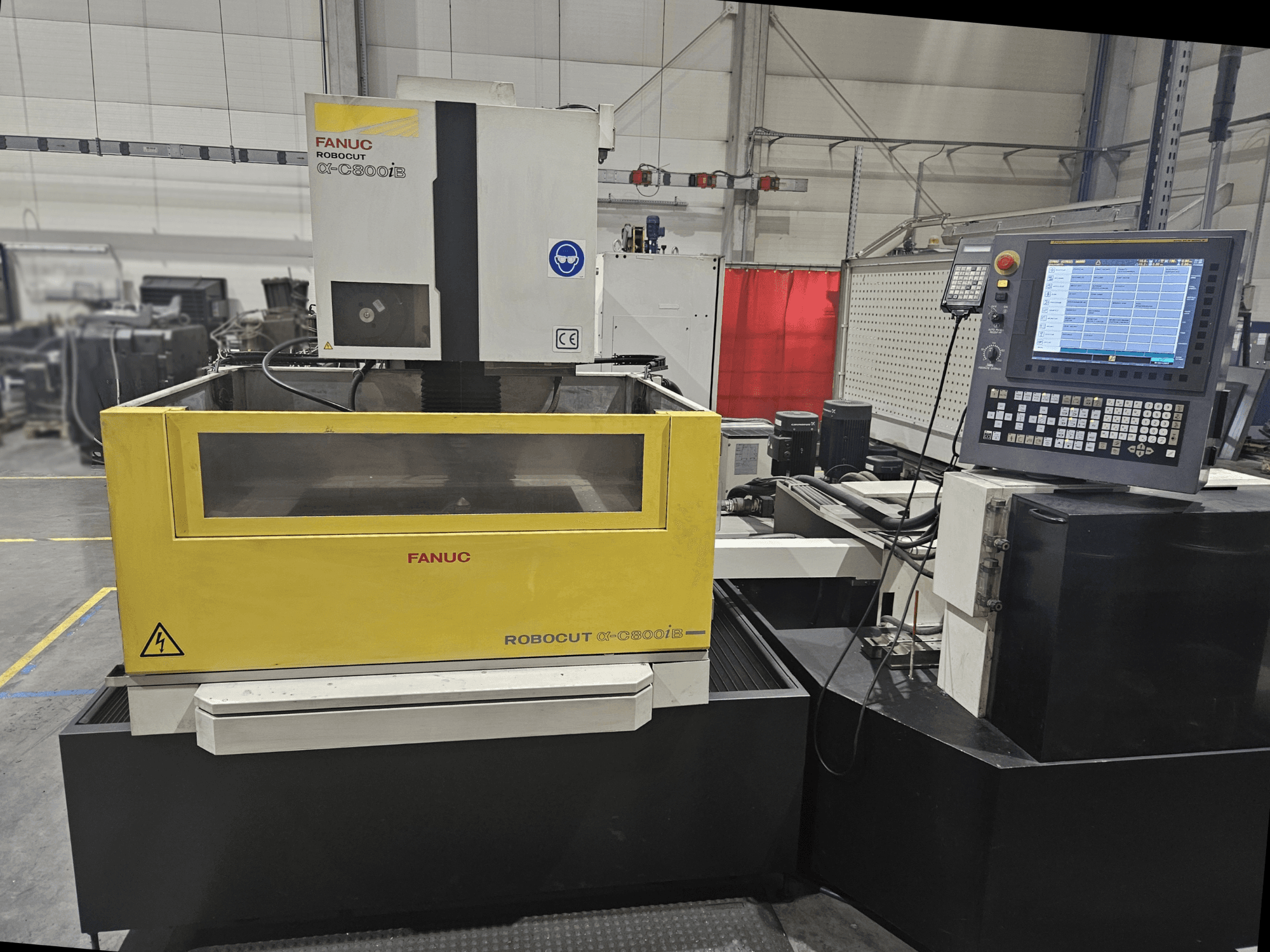

This 5-axis FANUC ROBOCUT alpha C800iB was manufactured in 2016, featuring a large work area with X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 310 mm. It supports a maximum workpiece weight of 3000 kg and utilizes a CNC control FANUC 31i-WB for precise operations. If you are looking to get high-quality wire EDM capabilities, consider the FANUC ROBOCUT alpha C800iB machine we have for sale. Contact us for more information.
Overview
- brand: FANUC
- year: 2016
- MODEL: ROBOCUT alpha C800iB
- production hours: 4439
- application type: EDM
- Location: Poland
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - FANUC ROBOCUT alpha C800iB
Control Unit
- Control Brand: FANUC
- Control Model: 31i-WB
Dimensions
- Machine Length: 2900 mm
- Machine Weight: 4200 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 310 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Work area / travels:
U-axis: 200 mm
V-axis: 200 mm
Rapid traverse rates:
X-axis: 2000 mm/min
Y-axis: 2000 mm/min
Z-axis: 900 mm/min
U-axis: 450 mm/min
V-axis: 450 mm/min
Workpiece capacity:
Maximum workpiece dimensions: 1250 × 975 × 300 mm
Maximum workpiece weight: 3000 kg
Wire EDM parameters:
Maximum wire weight: 16 kg
Maximum taper angle: ±30° / 150 mm
Minimum positioning increment: 0.0001 mm
Machine data:
Permissible workpiece mass: 3000 kg
Electrical data:
Power supply: 3-phase, 50/60 Hz
Connected load: 13 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
