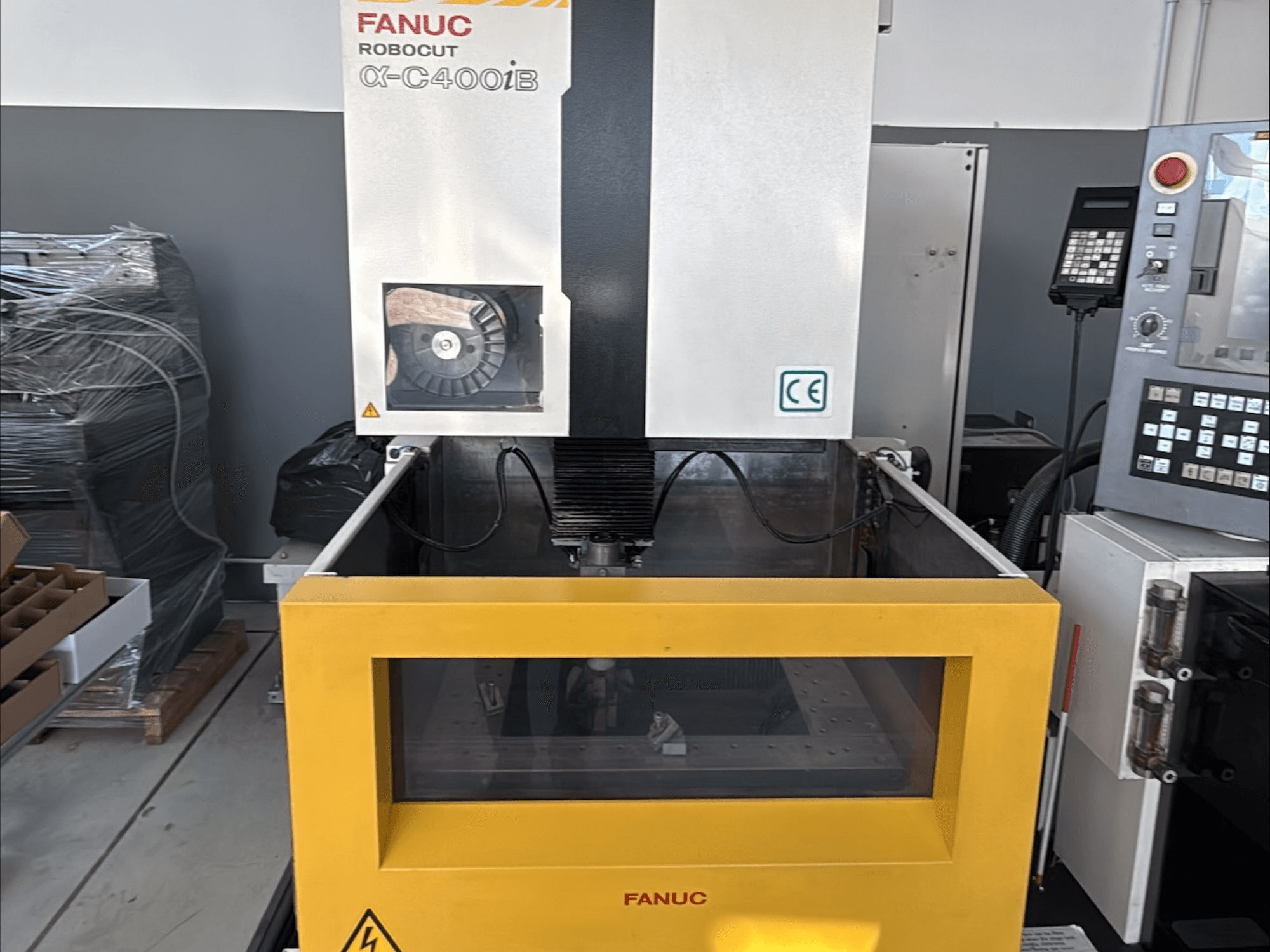

FANUC - Robocut alpha-C400iB IT-EDM-FAN-2018-00002

Workpiece capacity: max dimensions 730 × 630 × 250 mm; max workpiece weight 500 kg

Axis travel: U/V 120 × 120 mm

Machining capability: max taper angle ±30°/80 mm; minimum drive increment 0.0001 mm; wire diameter Ø0.10–Ø0.30 mm; max wire spool weight 16 kg

Controller: FANUC 31i-WB; part program storage 4 MB

Acoustic noise: LPA 64 dB; LPCpeak 81 dB

Optional specifications:

• Thin wire option: wire diameter Ø0.05–Ø0.07 mm

• Automatic front door option: max workpiece dimensions with auto door 730 × 585 × 250 mm

• 45° die guide option: max taper angle ±45°/40 mm

• 30 kg wire feed unit option: max wire spool weight 30 kg

Installation conditions:

• Power supply: AC 200V ±10%, 3-phase, 50/60 Hz ±1 Hz; AC 220V ±10%, 3-phase, 60 Hz ±1 Hz; connection cable terminal size 8-5; power consumption 13 kVA

• Air supply: 0.5–0.7 MPa; 100–110 L/min (minimum 120 L/min with thin wire option); regulator-side coupler mounting screw Rc1/4

• Environment: 15–30°C (recommended 20 ±1°C for high-precision machining); oil-mist-free and dust-free; humidity ≤75% RH

• Grounding: Type C; max grounding resistance 10 Ω; must be grounded independently from other machinery

Shield room requirement: If electrical discharge noise interferes with nearby radio, television, or electronic equipment, a shielded room must be installed
