➤ Used FANUC Robocut alpha-C400iB For Sale | gindumac.com

Show in original language

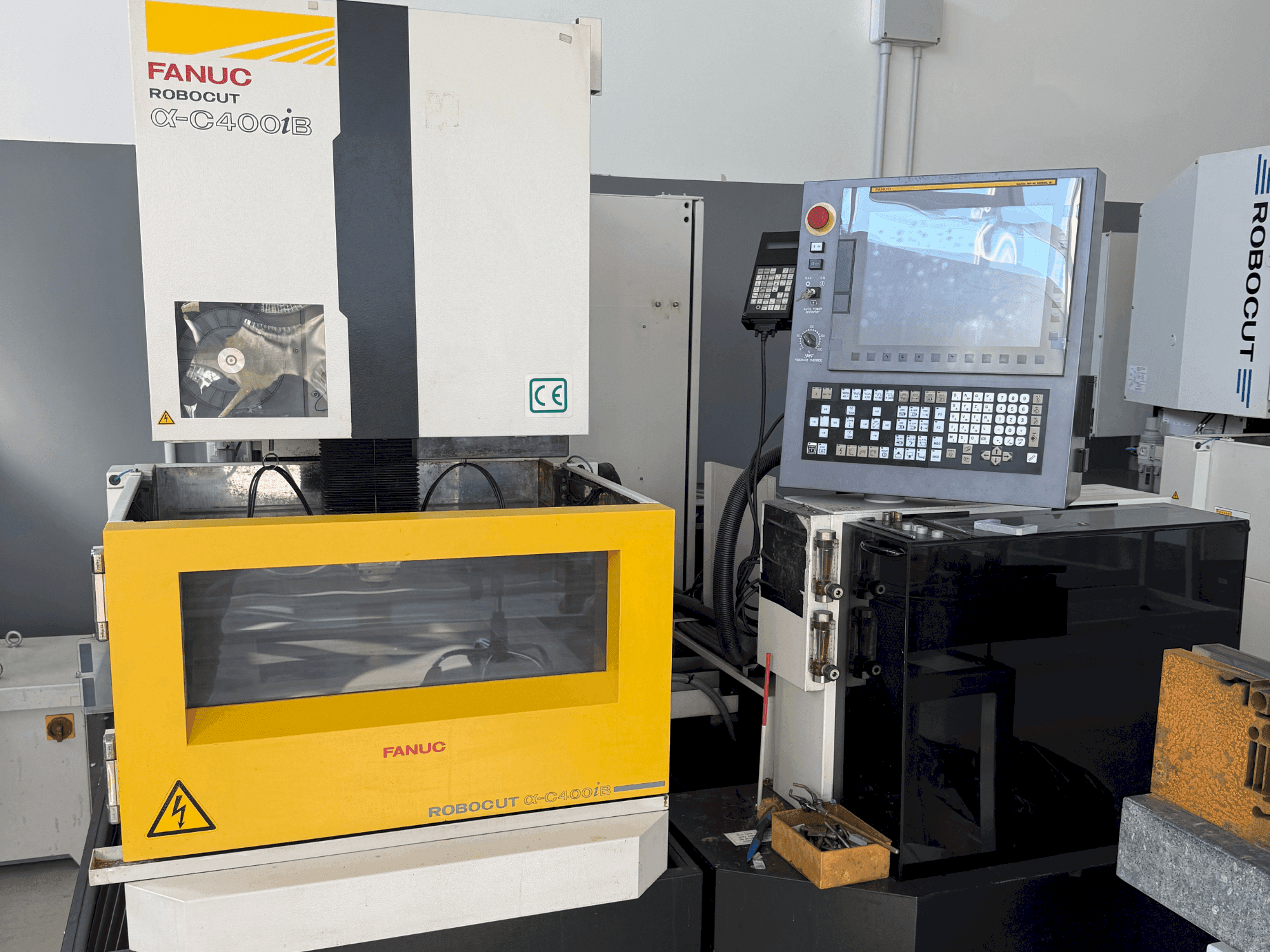

This FANUC Robocut alpha-C400iB was manufactured in 2018. It features a maximum workpiece size of 730 x 630 x 250 mm and can handle weights up to 500 kg. The machine includes a FANUC 31i-WB controller and supports wire diameters from 0.10 to 0.30 mm. Consider the opportunity to buy this FANUC Robocut alpha-C400iB wire edm machine. Contact us for more information.

Overview

brand: FANUC
year: 2018
MODEL: Robocut alpha-C400iB
application type: EDM
Location: Italy
machine type: Wire EDM Machine
control unit brand: FANUC

Technical Information - FANUC Robocut alpha-C400iB

General Data

Machine weight: 2200 kg

Control Unit

Brand: FANUC
Model: 31i-WB

Movement

Z-AXIS Movement: 255 mm

Workpiece

Workpiece weight: 500 kg

Additional equipment

- Optional Thin wire, Wire diameter [mm]: Ø 0.05 ~ Ø 0.30
- Automatic front door
- UV axis travel [mm]: ± 60 × ± 60
- Minimum step increment of the drives [mm]: 0.0001

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Acoustic noise level: lpa [db]: 64, lpcpeak [db]: 81
- - Xy axis table travel [mm]: 400 × 300
- - Maximum workpiece dimensions [mm]: 730 x 630 x 250
- - Maximum taper angle [°/mm]: ± 30/80
- - Wire diameter [mm]: Ø 0. 10 ~ Ø 0. 30
- - Maximum wire weight [kg]: 16

Extra information

- Maximum workpiece dimensions with automatic door, Z axis travel [mm]: 730 x 585 x 250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
