FANUC - ROBOCUT α-1iAAT-EDM-FAN-2000-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used FANUC ROBOCUT α-1iA For Sale | gindumac.com

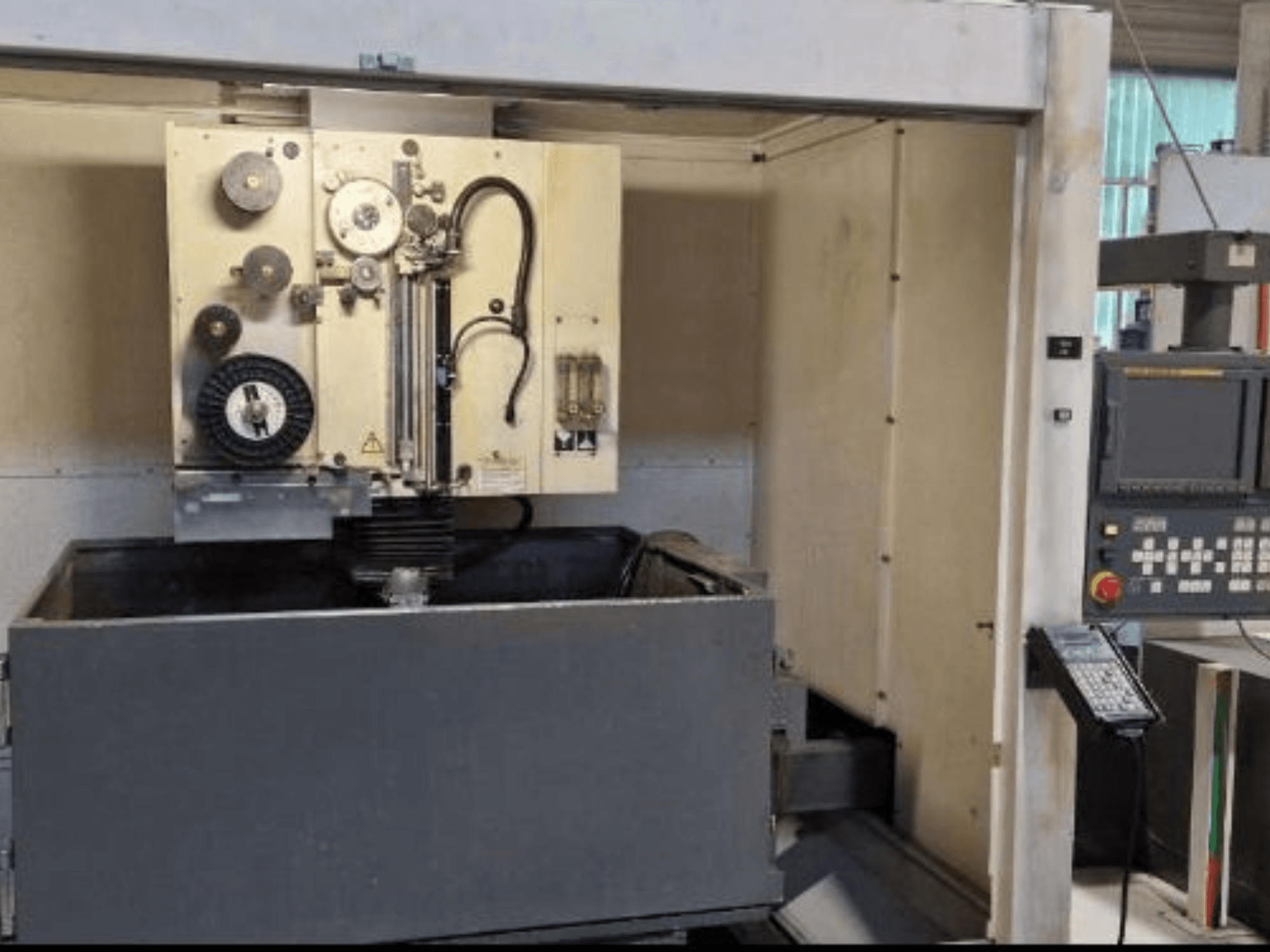

This 5-axis FANUC ROBOCUT α-1iA was manufactured in 2000. It features a stroke of 520 mm on the X-axis, 370 mm on the Y-axis, and 310 mm on the Z-axis, providing versatile machining capabilities. The machine has a permissible mass of workpiece up to 1000 kg, making it suitable for various applications. If you are looking to get high-quality wire EDM capabilities, consider the FANUC ROBOCUT α-1iA machine we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2000
- MODEL: ROBOCUT α-1iA
- application type: EDM
- Location: Austria
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - FANUC ROBOCUT α-1iA
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-W
Dimensions
- Machine Weight: 2600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 520 mm
- Y-axis Travel: 370 mm
- Z-axis Travel: 310 mm
Additional Information
Control type/code: A04B-0312-B001#E5
Strokes: U 120 mm, V 120 mm
Rapid traverse: X/Y/Z 900 mm/min; U/V 450 mm/min
Permissible workpiece mass: 1000 kg
Power supply options:
200 V (+10% / -15%), 3-phase, 50/60 Hz (±1 Hz)
220 V (+10% / -15%), 3-phase, 60 Hz (±1 Hz)
Power consumption: 13 kVA
Control panel: Integrated CRT/LCD with alphanumeric membrane keypad and lower toggle/button interface
Wire feed system: Multi-spool assembly in machining chamber
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
