FANUC - Robocut α-0iBHU-EDM-FAN-2003-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used FANUC Robocut α-0iB For Sale | gindumac.com

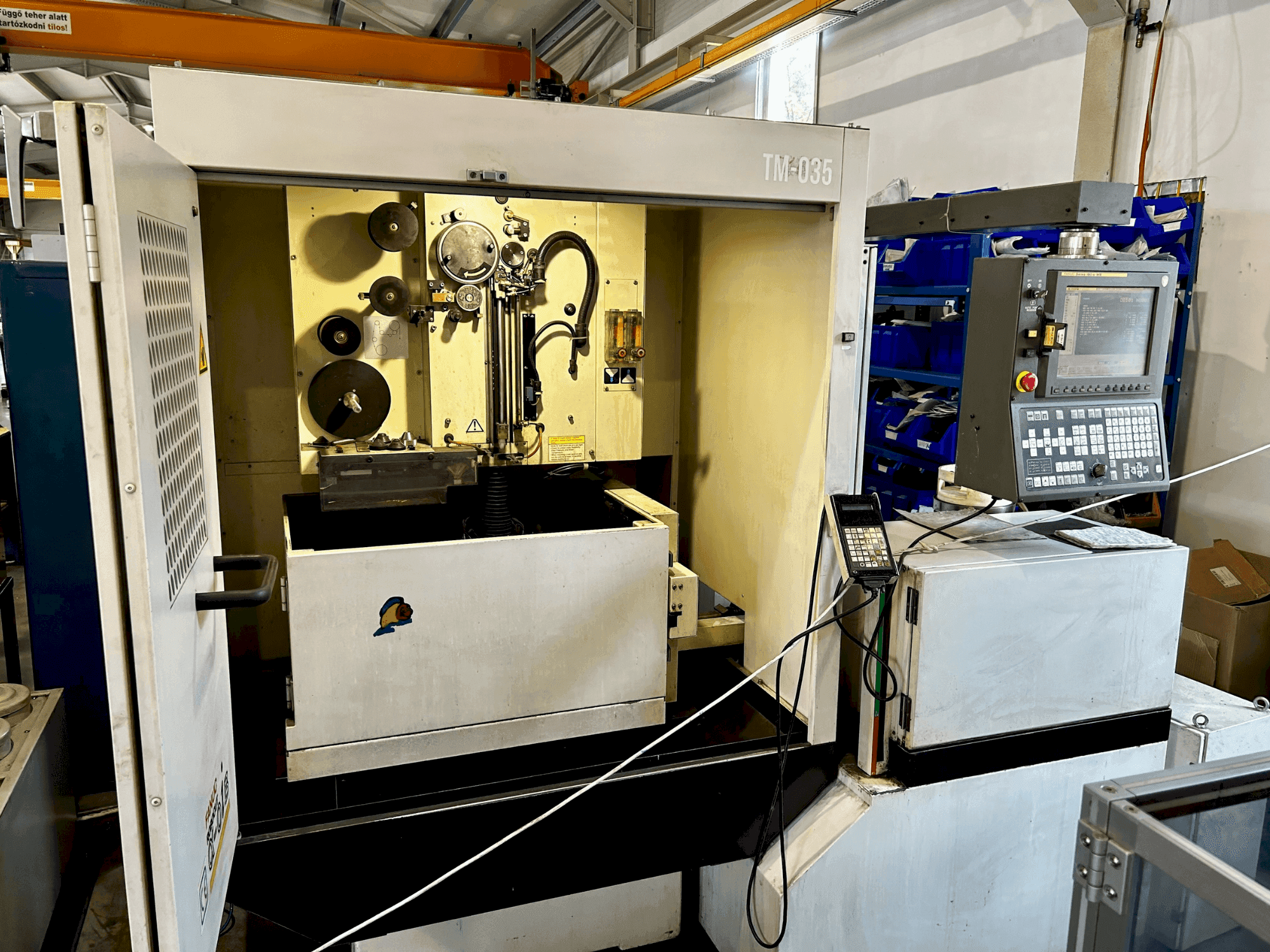

This 5-axis FANUC Robocut α-0iB was manufactured in 2003, designed for precision wire EDM machining. It offers advanced control technology and robust construction, ensuring reliable performance and high-quality results. If you are looking to get high-quality EDM capabilities, consider the FANUC Robocut α-0iB machine we have for sale. Contact us for more information.
Overview
- brand: FANUC
- year: 2003
- MODEL: Robocut α-0iB
- production hours: 27612
- application type: EDM
- Location: Hungary
- machine type: Wire EDM Machine
Technical Information - FANUC Robocut α-0iB
Dimensions
- Machine Depth: 980 mm
- Machine Height: 1100 mm
- Machine Weight: 10 kg
Movement
- Number of Axes: 5
- X-axis Travel: 320 mm
- Y-axis Travel: 220 mm
- Z-axis Travel: 180 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Max taper angle: ± 30° / 80 mm (standard) | ± 45° / 40 mm (option)
- Wire diameter: 0. 1 to 0. 3 mm
- Wire tension: 250 to 2500 g
- Wire feedrate: 0 to 15 mm/s
- Wire guide clearance: 5 µm
- Dielectric fluid: demineralized water
- Tank capacity: 390l (small) | 530l (large)
- Filtering flow rate: 60 l/min (small) | 65 (75) l/min (large) // filtering precision: 2 to 10 µm // filter: paper filter × 2
- Ion exchange resin: 10l × 1 (standard) | 10l × 2 (option)
- Dielectric resistivity control: (1. 0 to 20) × 10⁴ Ω·cm
Extra Information
Driving Motors: AC Servo Motors Movement Max Table Feedrate: 900 mm/min Minimum Table Travel: 0.0001 mm Rapid Traverse: 900 mm/min Cutting Feedrate: 0.0001 to 50 mm/min Workpiece Max Workpiece Dimensions: Submerged: 650 × 450 × 180 mm (small) | 790 × 730 × 300 mm (large) Flushing: 680 × 420 × 180 mm Max Workpiece Weight: Submerged: 500 kg (small) | 1000 kg (large) Flushing: 500 kg Table Table Stroke: Small: 320 × 220 mm Large: 520 × 370 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
