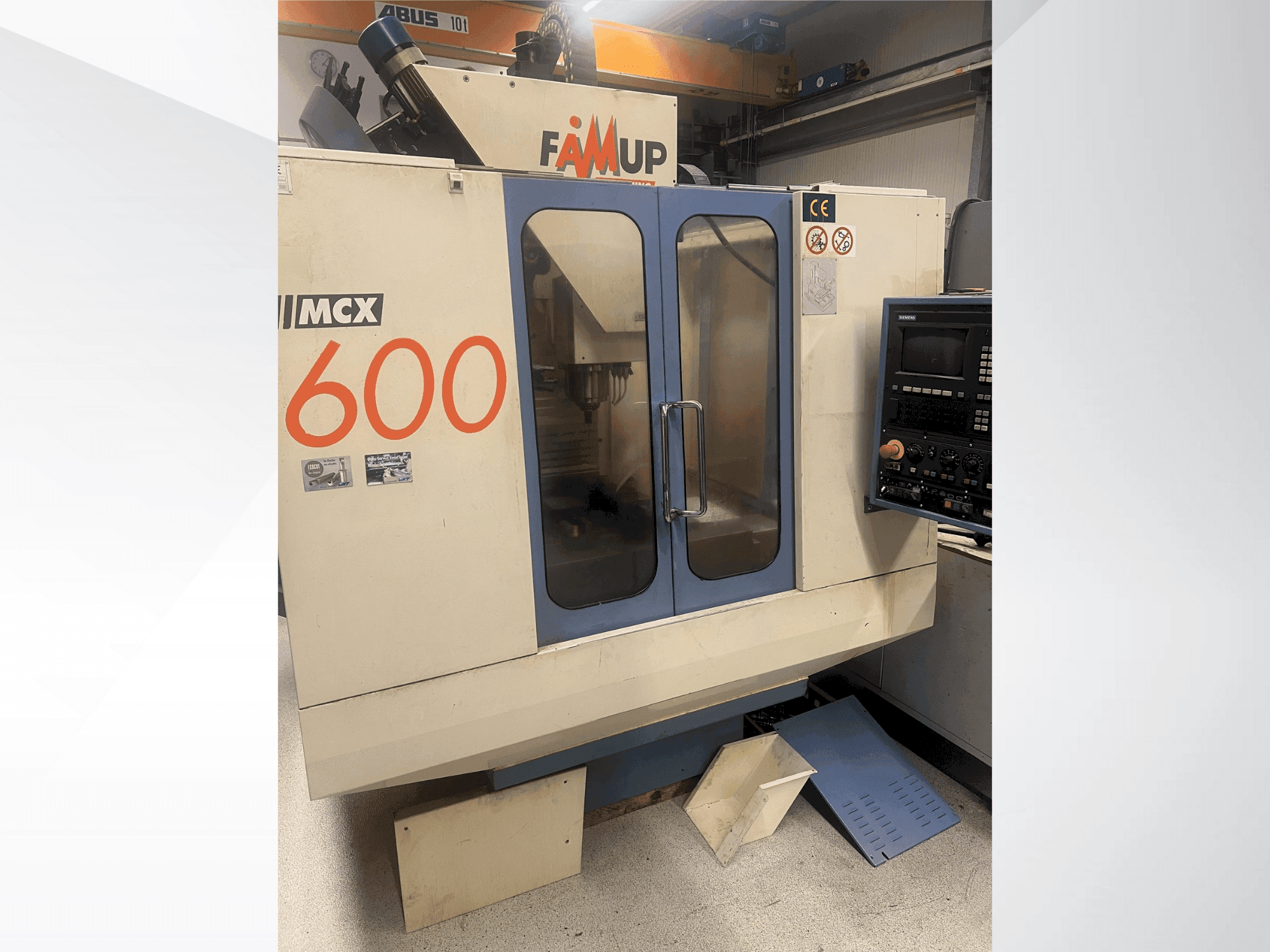

This 3-axis FAMUP MCX 600 was manufactured in 1997. It features a robust 3600 kg base machine weight, with a total weight including all components at 4630 kg. The machine offers a spindle speed of up to 6000 rpm and accommodates a maximum table load of 400 kg. X, Y, and Z axes travel are 600 mm, 400 mm, and 400 mm respectively. Consider the opportunity to buy this FAMUP MCX 600 vertical machining centre. Contact us for more information.
Overview
- brand: FAMUP
- year: 1997
- MODEL: MCX 600
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - FAMUP MCX 600
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik
Dimensions
- Machine Weight: 3600 kg
- Table Length: 800 mm
- Table Width: 375 mm
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- T-slot spacing: 125 mm
- T-slot width: 14 mm
- Table-to-floor distance: 850 mm
- Cone standard din 69871: iso 40
- Noise level (work area): 71. 5 db(a)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
