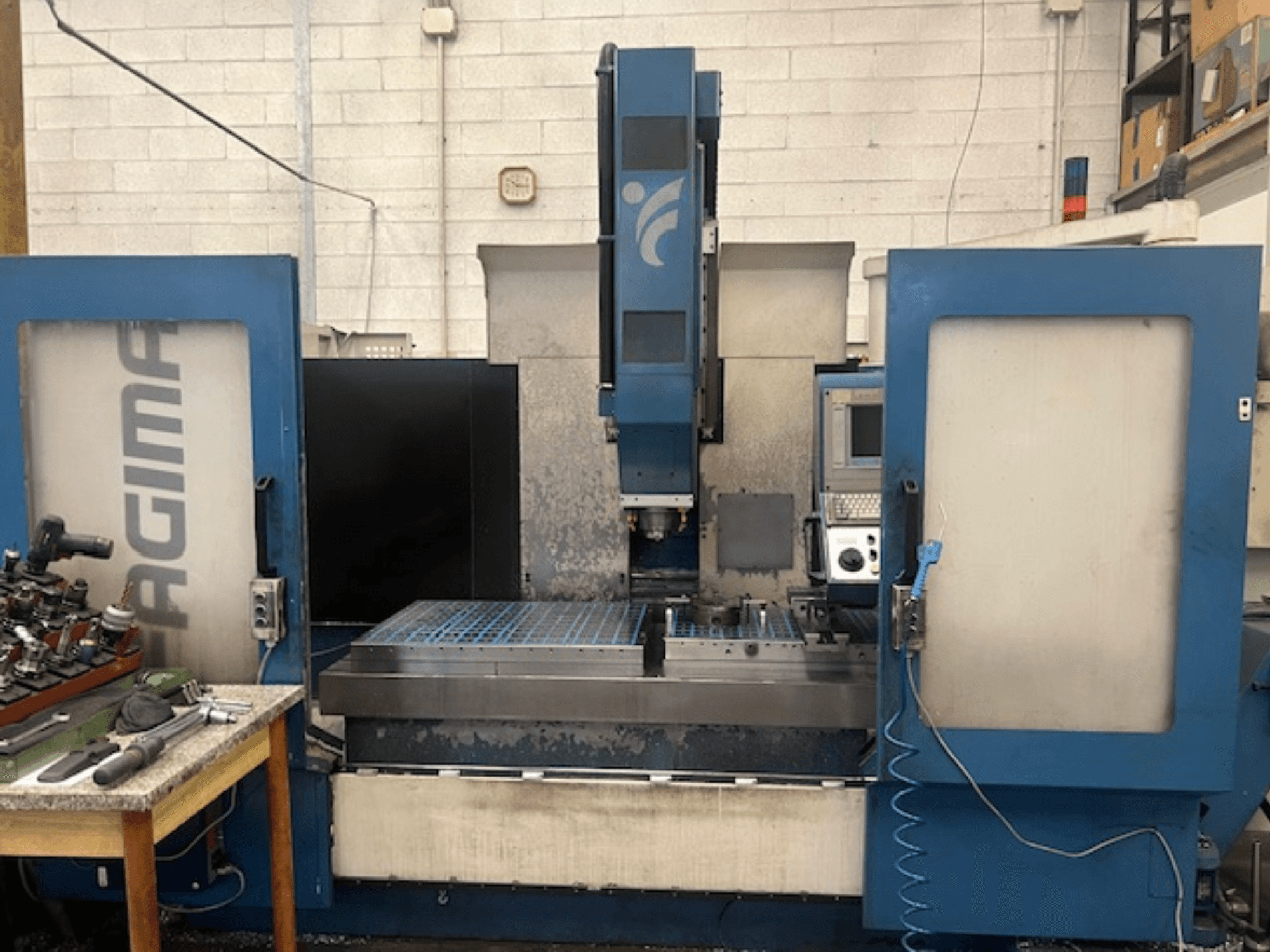

A front view of a JAGIMA CNC machine with a large metal workspace, visible control panel, and tools on a nearby table.
A front view of a JAGIMA CNC machine with a large metal workspace, visible control panel, and tools on a nearby table.

Fagima - Fast 160IT-MIL-FAG-1999-00001

Rs. 2,317,545
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Fagima Fast 160 was manufactured in 1999. It features a SELCA 3045 CNC control, with a spindle power of 11 kW and a maximum speed of 10,000 rpm. The machine offers a large travel range with X-axis at 1600 mm, Y-axis at 700 mm, and Z-axis at 500 mm. It includes a tool magazine with a capacity of 38 tools. Consider the opportunity to buy this Fagima Fast 160 vertical machining centre. Contact us for more information.

Overview

  • brand: Fagima
  • year: 1999
  • MODEL: Fast 160
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Fagima Fast 160

Dimensions

  • Machine Depth: 3600 mm
  • Machine Height: 2000 mm
  • Machine Weight: 7160 kg

Movement

  • X-axis Travel: 1600 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Power: 11 kW

Additional Information

Aditional information

  • Maximum Torque: 75 Nm

  • Taper: ISO 40

  • Speed: 10000 rpm

  • Table

    • Dimensions: 1700 × 700 mm

  • Tool Magazine Capacity: 38 tools

  • Tool Change Time: 10 sec

  • Coolant System: High-pressure coolant 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
