Euromac MTX INDEX
Euromac - MTX INDEX
2005
Rs. 3,188,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Sheet Metal Machinery
- EUROMAC MTX INDEX Punching machine
Show in original language

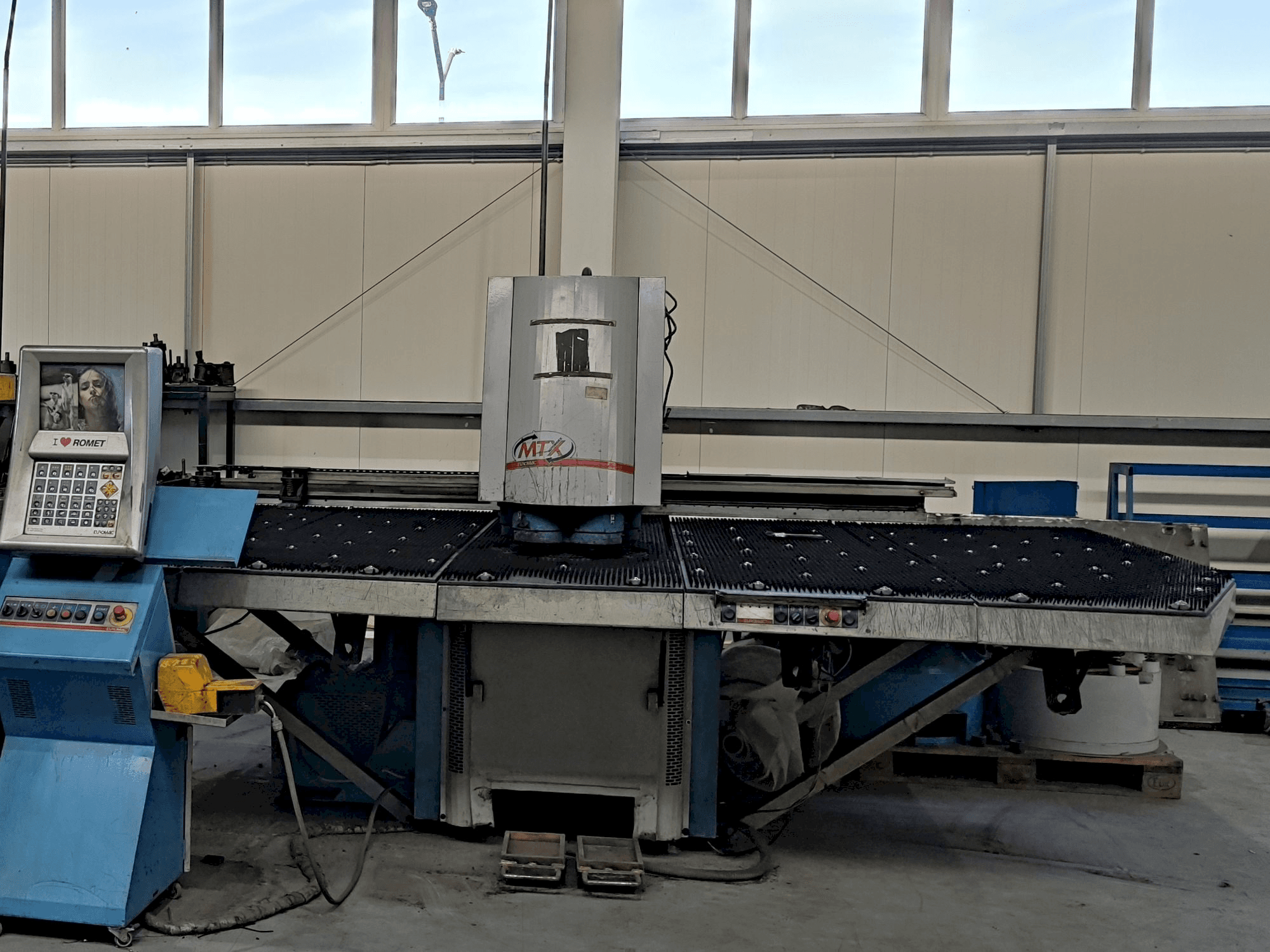

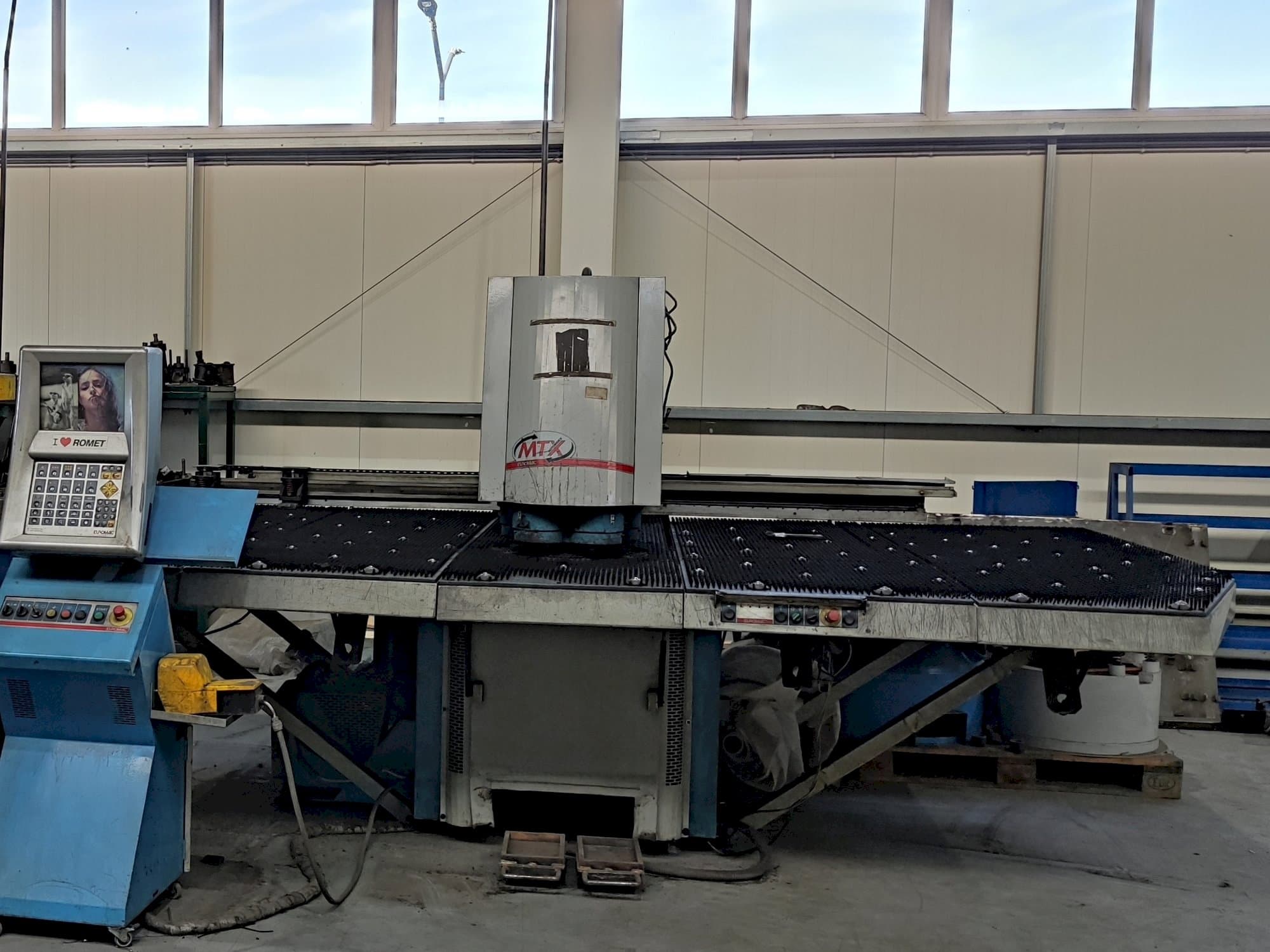

This EUROMAC MTX INDEX Punching machine was manufactured in the year 2005 in Italy. It is equipped with an Euromac TopPunch control unit. The machine has a punching force of 300 kN.
Overview
- brand: Euromac
- year: 2005
- MODEL: MTX INDEX
- application type: Punching
- Location: Poland
- machine type: Punching Machine
- availability: Immediately
- control unit brand: Euromac
- GINDUMAC ID: PL-PUN-EUR-2005-00001
Technical Information
General Data
- Measurements width: 3970 mm
- Measurements depth: 3430 mm
- Machine weight: 8400 kg
Control Unit
- Brand: Euromac
- Model: TopPunch
Main drive
- Pressing force: 300 kN
Movement
- X-AXIS Movement: 2250 mm
- Y-AXIS Movement: 1250 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 7.5 kW
Additional Information
- Technical Machine Benefits:
- - Automatic repositioning in x axis: up to 10000 mm
- - Number of d stations: 6 (including 3 index stations)
- - Max umber of tools in turret magazine: 6 pcs
- - Punching speed (nibbling mode): 780 1/min, punching speed (marking mode): 2000 1/min
- - Punching speed (20 mm stroke): 300 1/min
- - Maximum sheet thickness: 5 mm, minimum sheet thickness: 0. 5 mm
- - Maximum sheet weight: 150 kg
- - Brush table
- - Safety barriers
- - Usb port
- Qualitative Machine Benefits:
- - Some tooling and accessories included, but we do not have any list yet.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
