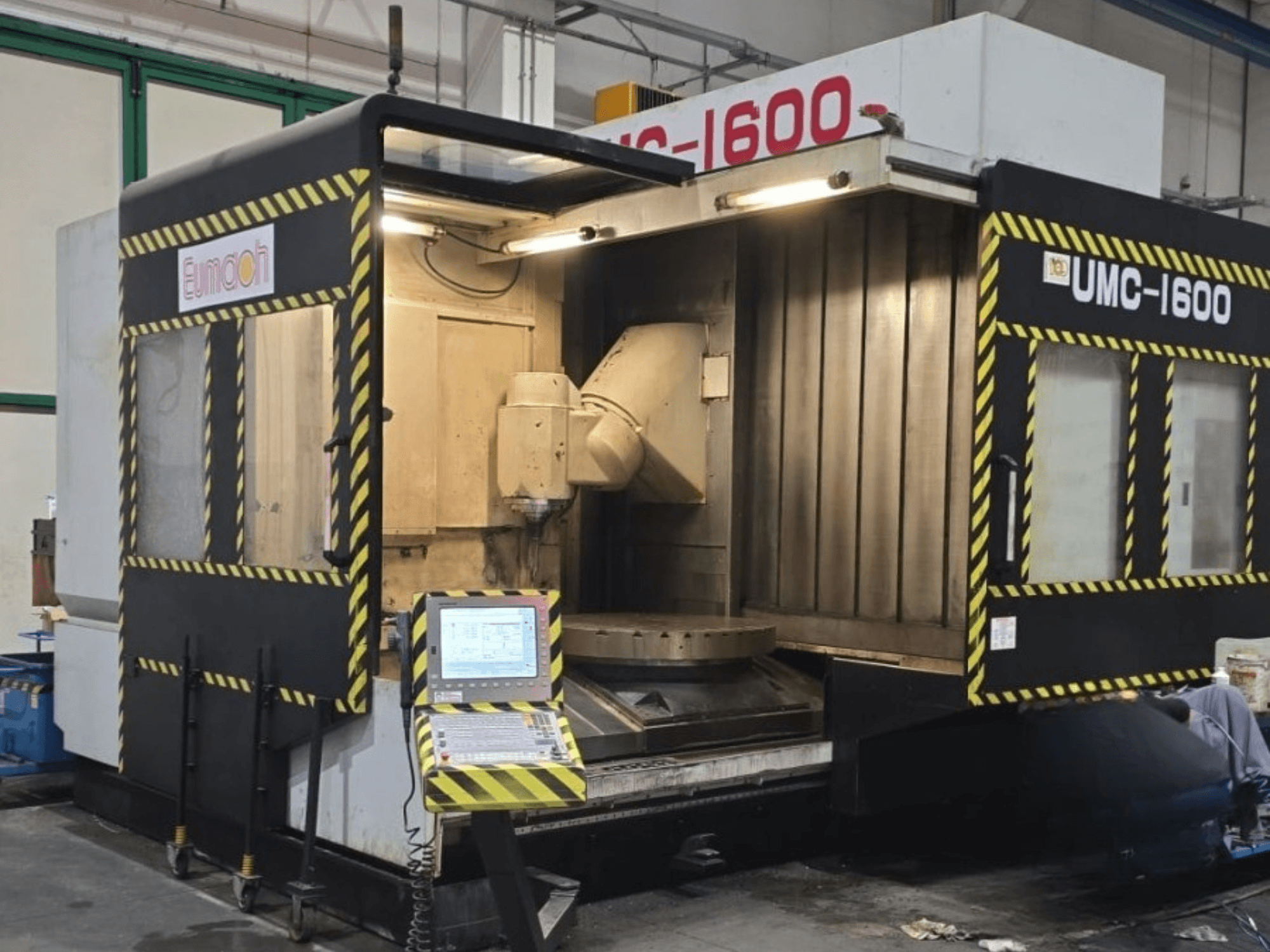

Eumach - UMC-1600IT-MIL-EUM-2020-00001

• CE certification: Yes

Travels and feeds

• B-axis swivel range: +10° to −190°

• C-axis rotation: 360°

• Rapid traverse X/Y/Z: 24 / 24 / 24 m/min

• Cutting feed X/Y/Z: 20 / 20 / 20 m/min

Rotary table (C-axis)

• Table diameter: Ø1,320 mm

• Max table speed: 30 rpm

• Minimum indexing increment: 0.001°

• Drive: Direct-drive torque motor

• T-slots: 13 slots, size 18H, pitch 100 mm

• Table height from floor: 1,085 mm

Swivel head (B-axis)

• Drive: Direct-drive torque motor

• Swivel time vertical ↔ horizontal: 3 s

• Swivel range: +10° / −190°

Spindle

• Power S1/S6: 37.4 / 54 kW

• Torque S1/S6: 170 / 390 Nm

• Front spindle bearing diameter: 100 mm

• Spindle centre to column: 1,105 mm

• Spindle taper: Pending confirmation (documentation lists HSK-A100, BT, CAT, SK50 as possible)

Working distances

• Vertical spindle nose to table surface: 150–1,200 mm

• Horizontal spindle centre to table surface: 100–1,150 mm

• Vertical spindle nose to table centre: −300 to 960 mm

• Horizontal spindle centre to table centre: −250 to 1,010 mm

Automatic tool changer

• Type: Cam-arm

• Max tool diameter: Ø150 mm

• Max tool length: 350 mm

• Tool exchange position: Horizontal

Guideways and ball screws

• Linear guide size X/Y/Z: 55 / 55 / 55 mm

• Number of guide rails X/Y/Z: 4 / 2 / 2

• Number of guide blocks X/Y/Z: 8 / 4 / 6

• Ball screw diameter X/Y/Z: Ø55 / Ø55 / Ø63 mm

• Ball screw pitch X/Y/Z: 16 / 12 / 12 mm

Electrical data

• Voltage: 400 V

• Frequency: 50/60 Hz

• Connected load: 80 kVA

Outline drawing confirms installation dimensions

Integrated features/options

• Simultaneous 5-axis machining

• Direct-drive B-axis swivel head

• Direct-drive C-axis rotary table

• HEIDENHAIN iTNC 530 HSCI control with RS-232 interface

• Linear scales on X, Y, Z axes

• Rotary encoders on B and C axes

Pending confirmation (machine info)

• Exact spindle taper

• Operating hours

• Spindle hours

• Confirmation that the 60-tool magazine and all listed equipment are installed on this specific machine

Additional equipment

• Chain-type chip conveyor

• Two screw-type chip augers

• Full splash guard with roof (enclosure)

• Programmable coolant system

• Spindle air blast

• Spindle water cooler (chiller)

• Work light

• Machine status light

• Machine and control manuals

• Toolbox

• Approx. 40 HSK-100 tool holders included with the machine.

Pending confirmation (accessories)

• Coolant through spindle (CTS)

• Touch probe (workpiece probing)

• Tool measurement system (tool setter)

• Complete list of included tool holders and accessories
