- ➤ Used ERMAK CNC HAP 4100x400 For Sale | gindumac.com

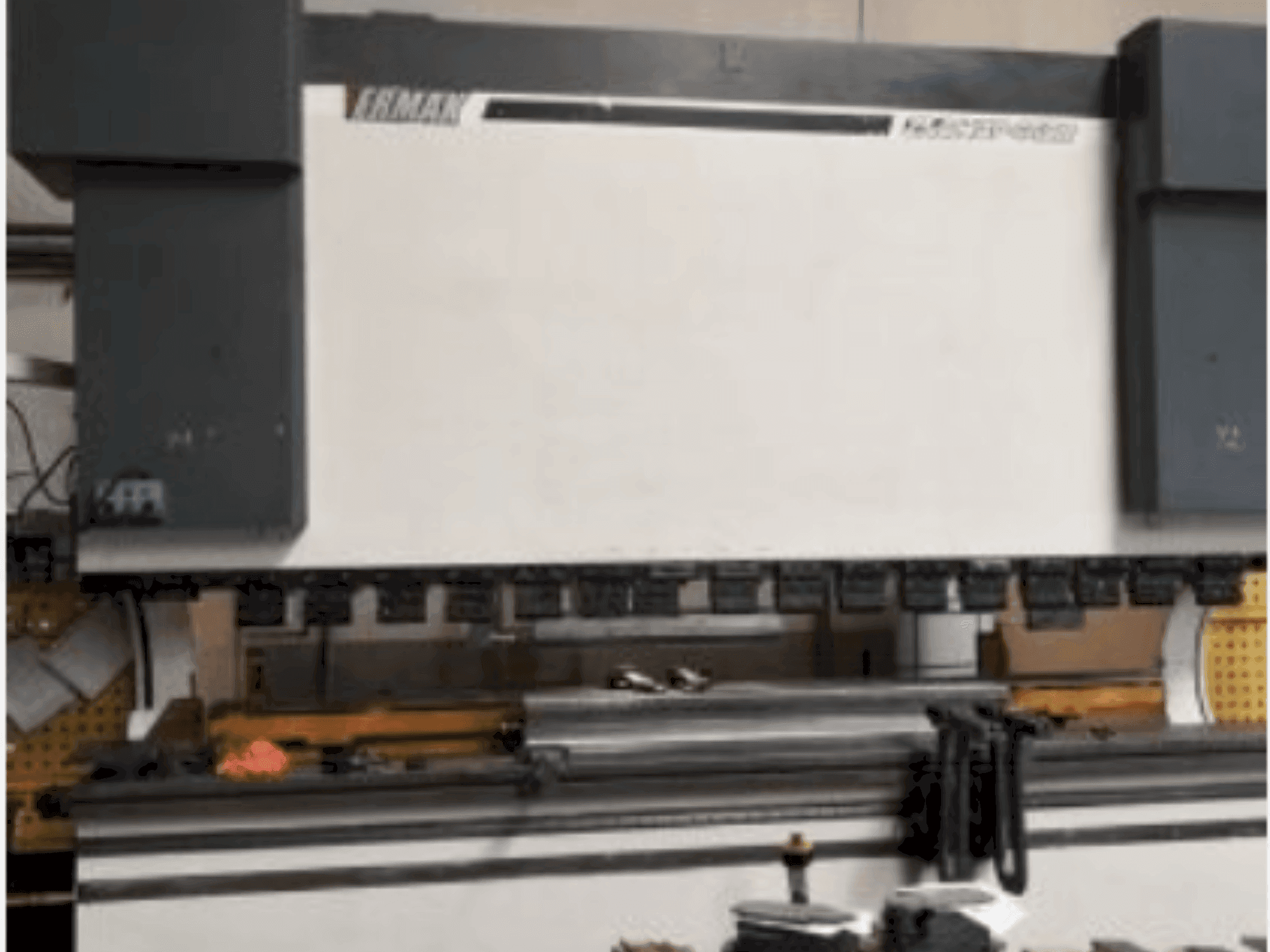

This ERMAK CNC HAP 4100x400 was manufactured in 2006. It features a CYBELEC DNC 60 control system, a maximum working length of 4100 mm, and a press force of 400 t. The internal distance between columns is 3550 mm, and it includes a laser safety system. Consider the opportunity to buy this ERMAK CNC HAP 4100x400 hydraulic press. Contact us for more information about this machine.
Overview
- brand: ERMAK
- year: 2006
- MODEL: CNC HAP 4100x400
- application type: Bending
- Location: Hungary
- machine type: Hydraulic Press
Technical Information - ERMAK CNC HAP 4100x400
Dimensions
- Machine Depth: 5450 mm
- Machine Height: 3150 mm
- Machine Weight: 24500 kg
Technical Specification
- Max. Stroke: 300 mm
Additional Information
Max. working length: 4100 mm
Internal distance between columns: 3550 mm
Column depth: 585 mm
Table width: 340 mm
Axes: 4 NC axes
Safety system: Laser
Bending speed: 100 mm/sec
Supply voltage: 3×400 V, 50 Hz
Performance recording: 30 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
