Engel - VICTORY 650/160 tech RO-INJ-ENG-2012-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Engel VICTORY 650/160 tech | Injection Moulding

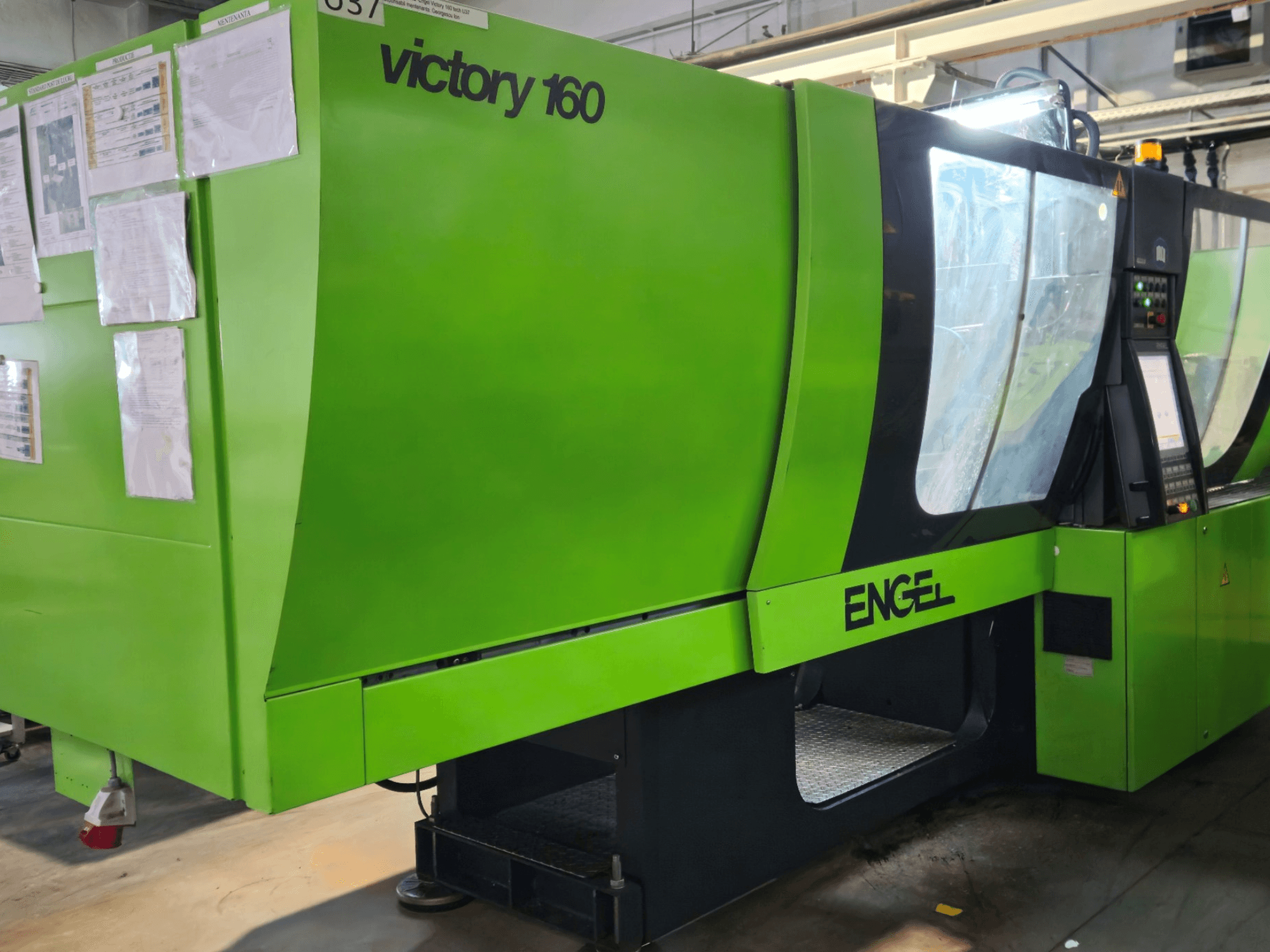

This Engel VICTORY 650/160 tech was manufactured in 2012. It features a tie-bar-less design, enhancing flexibility and accessibility for various mould sizes, with a clamping force of 1600 kN and a screw diameter of 45 mm. It's equipped with a robot, ensuring efficient automation. If you are looking to get high-quality injection moulding capabilities, consider the Engel VICTORY 650/160 tech machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2012
- MODEL: VICTORY 650/160 tech
- production hours: 73437
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel VICTORY 650/160 tech
Dimensions
- Machine Height: 2095 mm
- Machine Length: 5155 mm
- Machine Weight: 8700 kg
Technical Specification
- Clamping Force: 1600 kN
- Screw Diameter: 45 mm
Additional Information
Operating hours: 73,437 h
Condition: Excellent
Status: In production
Maximum injection volume: 318 cm³
Minimum mould height: 292 mm
Maximum mould height: 900 mm
Platen opening stroke: 609 mm
Platen dimensions: 750 × 750 mm
Tie-bar distance: Tie-bar-less design
Motor power: 22 kW
Heater power: 13.35 kW
Number of electrical connection pins: 16
Injection nozzle radius (tip): R35
Centering ring diameter: 125 mm
Number of cores: 0
Number of heating zones: 0
Additional equipment
Equipped with robot: Yes
Robot interface: Euromap 67
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
