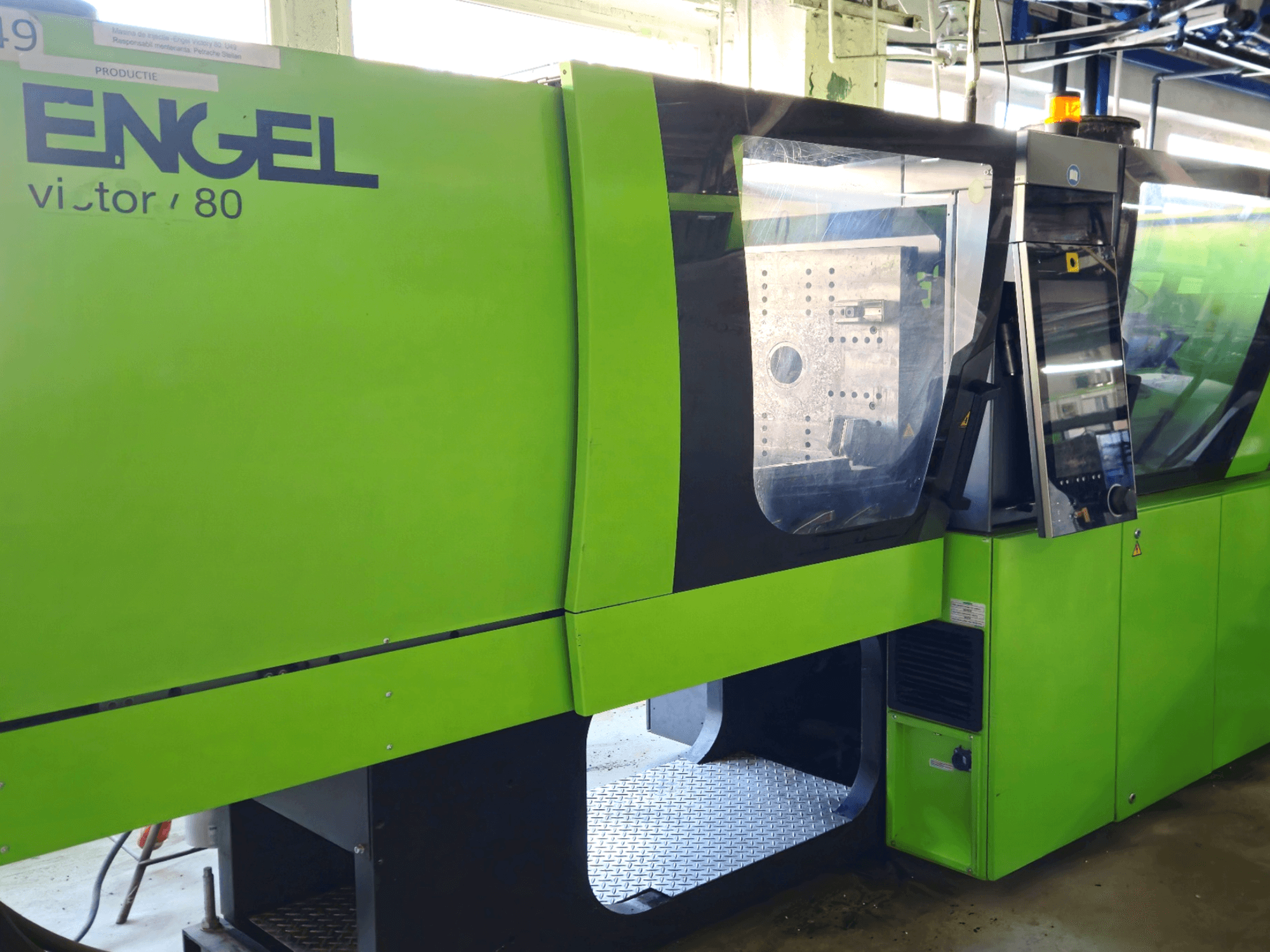

This Engel Victory 330/80 Tech was manufactured in 2015. It features a clamping force of 800 kN, a screw diameter of 35 mm, and a maximum injection volume of 154 cm³. The machine dimensions are 3974 x 1437 x 1932 mm, weighing 5300 kg. Currently in production with excellent condition and 37,235 operating hours. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 330/80 Tech machine we have for sale. Contact us for more information.
Overview
- brand: Engel
- year: 2015
- MODEL: Victory 330/80 Tech
- production hours: 37235
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel Victory 330/80 Tech
Dimensions
- Machine Height: 1932 mm
- Machine Length: 3974 mm
- Machine Weight: 5300 kg
Technical Specification
- Clamping Force: 800 kN
- Screw Diameter: 35 mm
Additional Information
Maximum injection volume: 154 cm³
Minimum mould height: 242 mm
Maximum mould height: 699 mm
Platen opening stroke: 475 mm
Platen dimensions (W x L): 670 x 600 mm
Motor power: 15 kW
Heater power: 9.25 kW
Number of electrical connection pins: 16
Injection nozzle radius (tip): R35
Centering ring diameter: 125 mm
Equipped with robot: No
Robot interface: No
Number of cores: 0
Number of heating zones: 0
Operating hours: 37,235 h
Condition: Excellent
Status: In production
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
