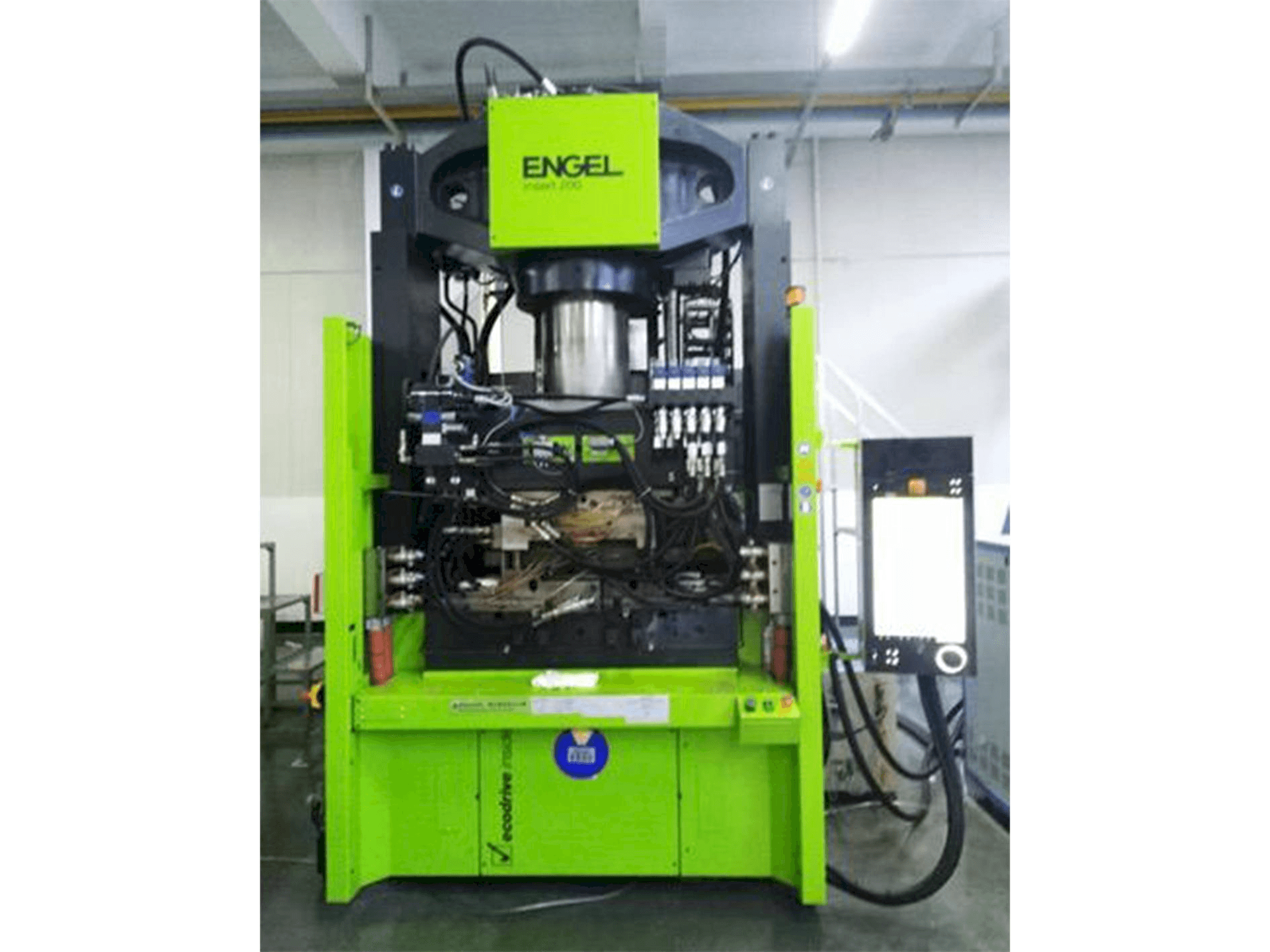

Front view of ENGEL insert 650H / 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel insert 650H / 200

Photo Gallery

Engel - insert 650H / 200CN-INJ-ENG-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ENGEL insert 650H / 200 injection moulding machine

Show in original language

This ENGEL insert 650H / 200 injection moulding machine was built in 2016. It has a total of 5040 production hours and works with a CC300 control unit. This machine has a clamping force of 2500 kN, and a screw diameter of 40 mm. Also works with an injection rate of 249 cm3/s and an injection pressure of 1844 bar.

Overview

brand: Engel
year: 2016
MODEL: insert 650H / 200
production hours: 5040
application type: Injection Moulding
Location: China
machine type: Vertical Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel insert 650H / 200

Control Unit

Model: CC300
Brand: ENGEL

Injection Unit

Screw diameter: 40 mm
Injection pressure: 1844 bar
Screw speed: 254 r/min

Clamping unit

Clamping force: 2500 kN
Opening stroke: 404 mm
Ejector stroke: 160 mm
Ejector force for / back: 20,1 kN

Additional equipment

- Trexel T-100 MuCell
- Increased clamping force to 2500kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swept volume 251 cm3
- - Injection rate 249 cm3/s
- - Nozzle stroke 550 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
