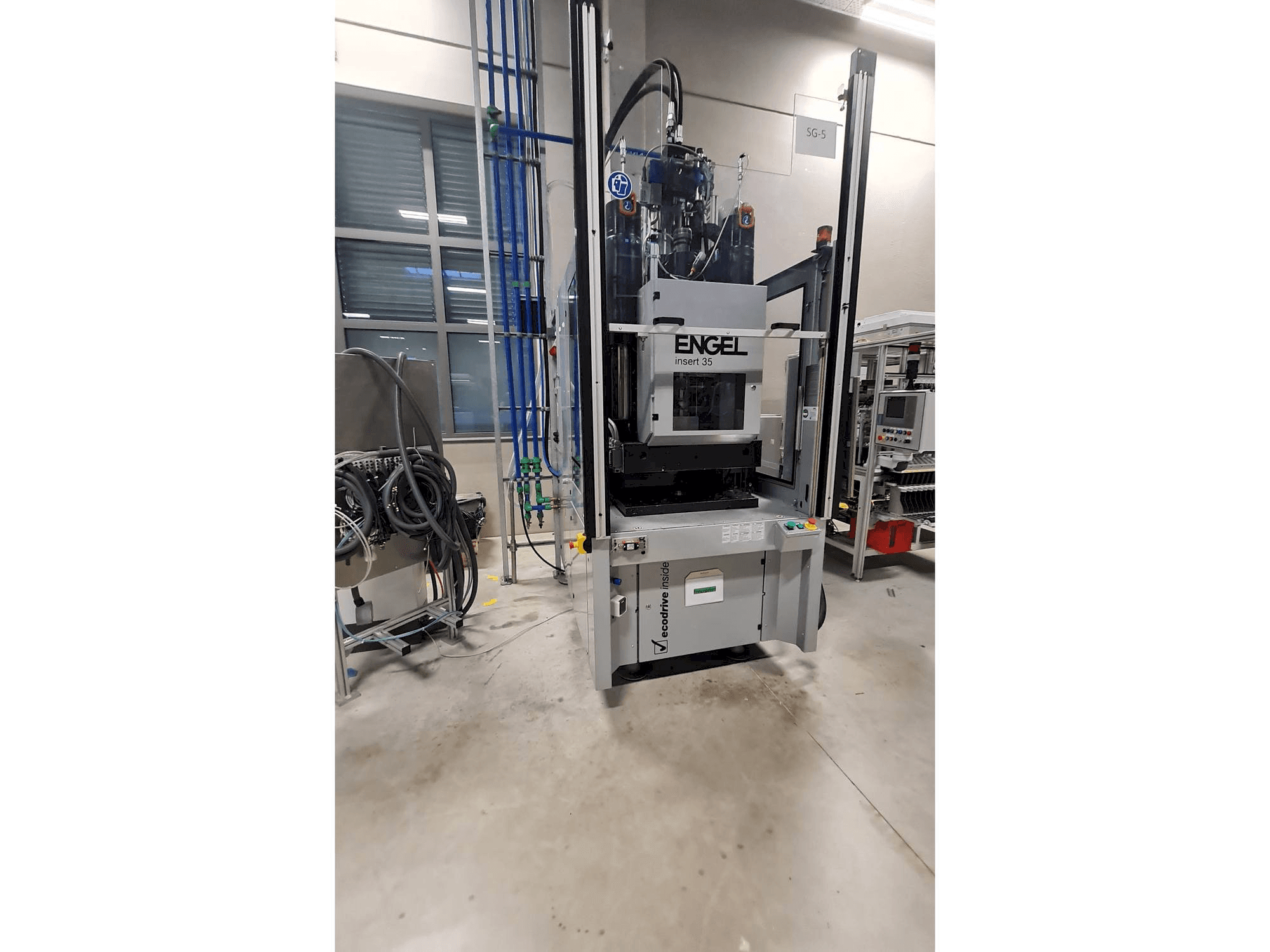

ENGEL insert 60V-35 single XS ecodrive Injection moulding machine

Show in original language

This ENGEL insert 60V-35 single XS ecodrive Injection moulding machine was manufactured in the year 2017 in Austria and has 12750 production hours. It is equipped with an Engel CC300 control unit. The machine has a clamping force of 350 kN. 3 units are available.

Overview

brand: Engel
year: 2017
MODEL: insert 60V-35 single XS ecodrive
production hours: 12750
application type: Injection Moulding
Location: Germany
machine type: Vertical Injection Moulding Machine
availability: Immediately
control unit brand: ENGEL

Technical Information - Engel insert 60V-35 single XS ecodrive

General Data

Measurements width: 2300 mm
Measurements depth: 2600 mm
Measurements height: 1400 mm
Machine weight: 4450 kg

Control Unit

Brand: ENGEL
Model: CC300

Injection Unit

Screw diameter: 15 mm

Clamping unit

Clamping force: 350 kN
Opening stroke: 400 mm
Max open daylight: 590 mm
Mould height min: 190 mm
Size of mold platens: 780 x 400 mm
Ejector stroke: 100 mm
Ejector force for / back: 20.1 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Centering 125 mm
- - Center hole diameter 40mm
- - Nozzle open corrosion resistant in special design radius: 35 mm, bore: 4 mm, immersion depth: 30 mm
- - Weight (kg): 4500 kg (single), 4700 kg (rotary), 6500 kg (shuttle)
- - Screw diameter: hv1: 15 mm, shv1: 18 mm, shv2: 20 mm / stroke volume: hv1: 18 cm³, shv1: 25 cm³, shv2: 31 cm³ / injection pressure: hv1: 2400 bar, shv1: 1815 bar, shv2: 1470 bar / plasticising rate max: hv1: 1. 9 g/s, shv1: 3. 0 g/s, shv2: 4. 0 g/s / screw speed: hv1: 450 rpm, shv1: 450 rpm, shv2: 450 rpm / heating capacity: hv1: 4. 30 kw, shv1: 5. 05 kw, shv2: 5. 80 kw / adjustable heating zones: hv1: 4, shv1: 4, shv2: 4 / nozzle pressure: hv1: 28 kn, shv1: 28 kn, shv2: 28 kn
- - Oil tank: 175 liters
- - Image input capabilities: enabled
Qualitative Machine Benefits:
- - Technical machine benefits: ecodrive technology for energy efficiency.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
