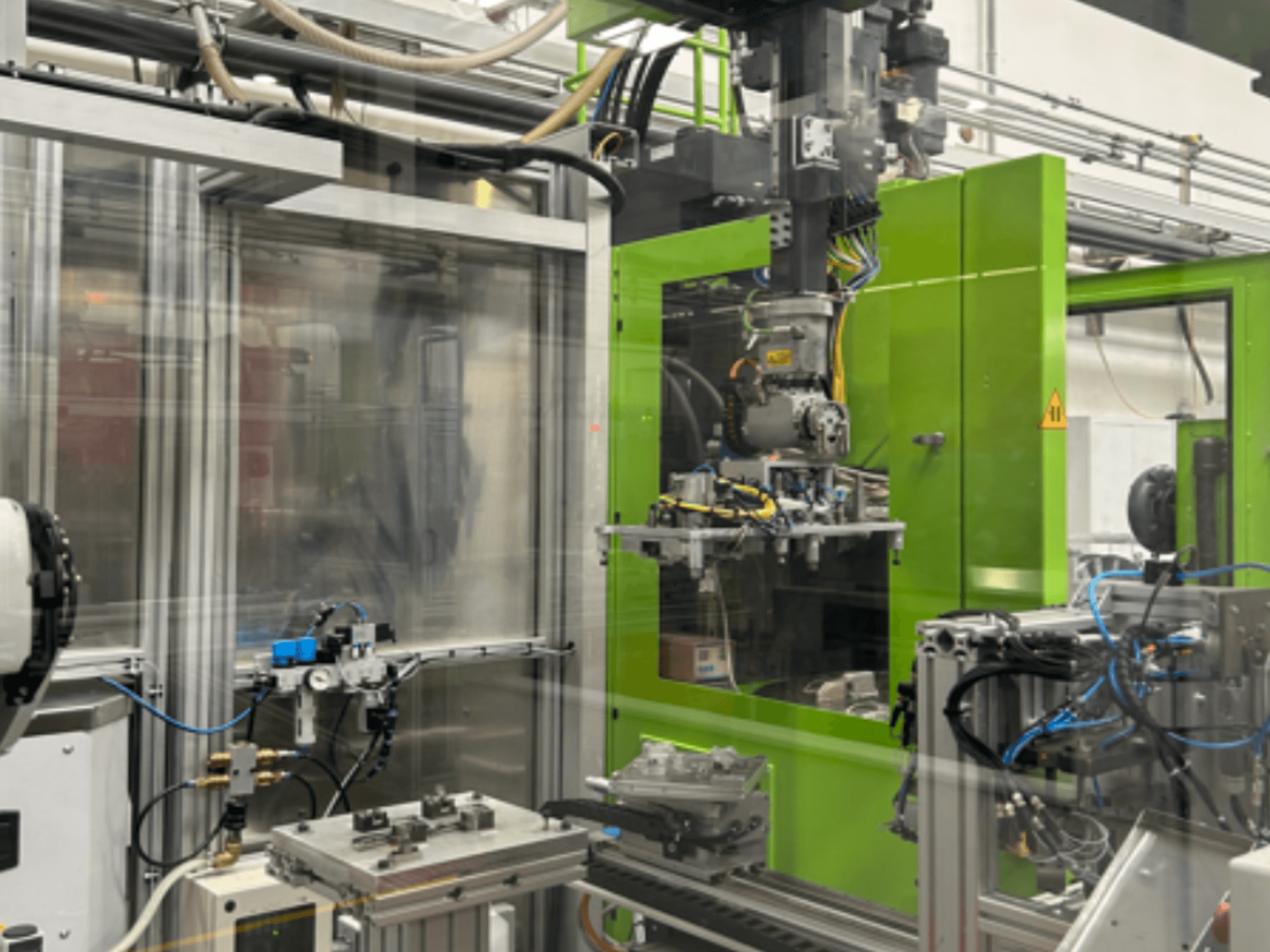

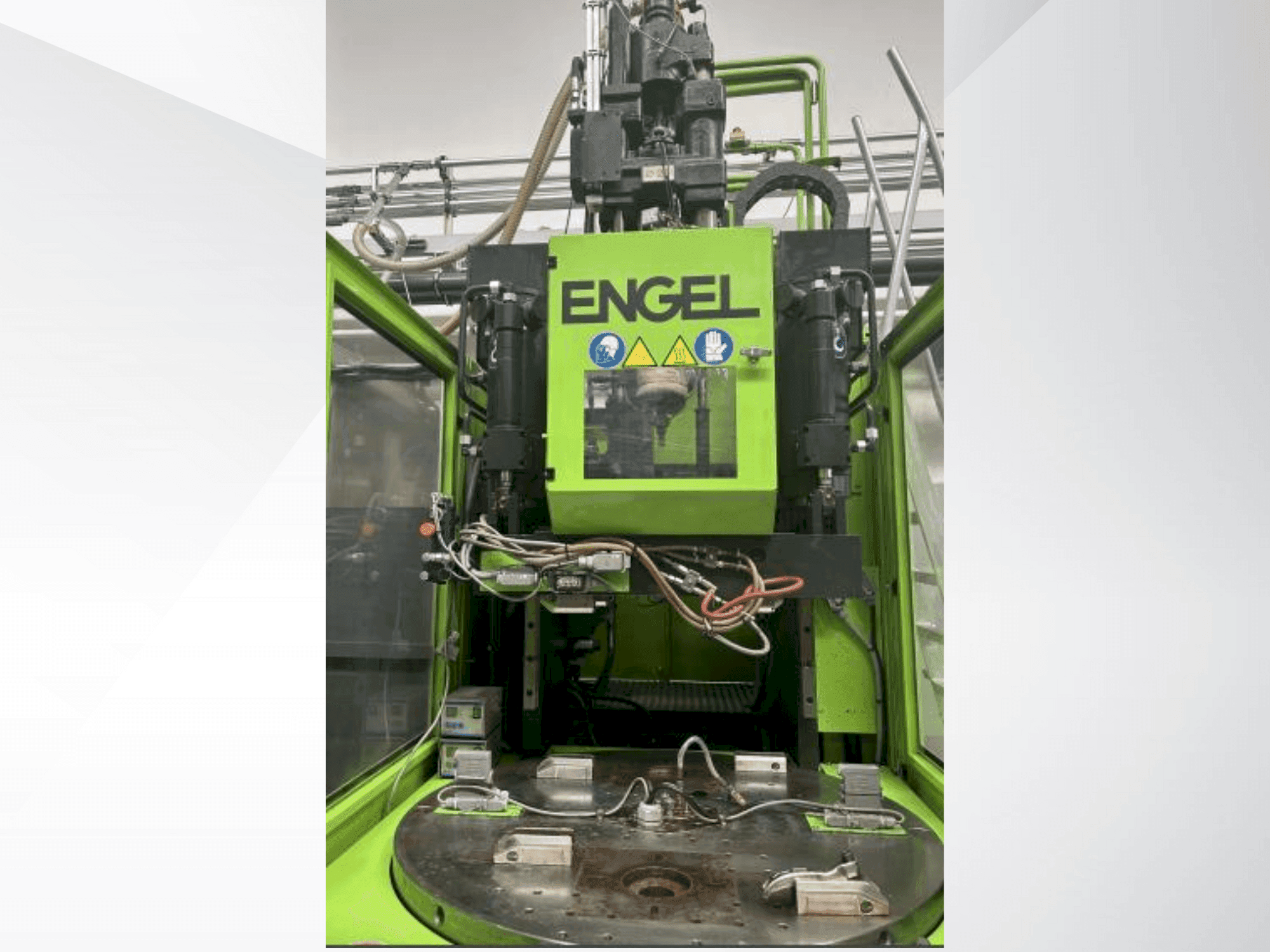

This Engel Insert 200V/60 rotary was manufactured in 2013. A vertical injection moulding machine, it represents a reliable option for precision moulding tasks. Consider the opportunity to buy this Engel Insert 200V/60 rotary vertical injection moulding machine. Contact us for more information.
Overview
- brand: Engel
- year: 2013
- MODEL: Insert 200V/60 rotary
- application type: Injection Moulding
- Location: Germany
- machine type: Vertical Injection Moulding Machine
Technical Information - Engel Insert 200V/60 rotary
Technical Specification
- Clamping Force: 800 kN
- Screw Diameter: 25 mm
Additional Information
Screw diameter 25 mm.
1.) Clamping force
Clamping force: 600 kN
Opening stroke: 338 mm
Ejector stroke: 105 mm
Ejector force: 20.1 kN
2.) Drive
Pump drive power: 15 kW
3.) Injection unit 1
Screw diameter
22 mm
25 mm
30 mm
35 mm
Max. swept volume
53 cm³
69 cm³
99 cm³
135 cm³
Max. screw speed
480 rpm (for all diameters)
Current screw speed
480 rpm (for all diameters)
Injection rate
80 cm³/s (22 mm)
104 cm³/s (25 mm)
149 cm³/s (30 mm)
203 cm³/s (35 mm)
Injection rate increased
53 cm³/s (22 mm)
68 cm³/s (25 mm)
98 cm³/s (30 mm)
134 cm³/s (35 mm)
Specific injection pressure
2221 bar (22 mm)
2090 bar (25 mm)
1451 bar (30 mm)
1066 bar (35 mm)
Specific injection pressure increased
2402 bar (22 mm)
2404 bar (25 mm)
2205 bar (30 mm)
1620 bar (35 mm)
Nozzle stroke
530 mm
Nozzle contact pressure
28.3 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
