Engel ES 7000/1200 B
Engel - ES 7000/1200 B
1993
Sold
Do you have further questions? Contact us.
Chloé Martin
+33 7 86 98 48 01
c.martin@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- ENGEL ES 7000/1200 B Injection Moulding Machine
Show in original language

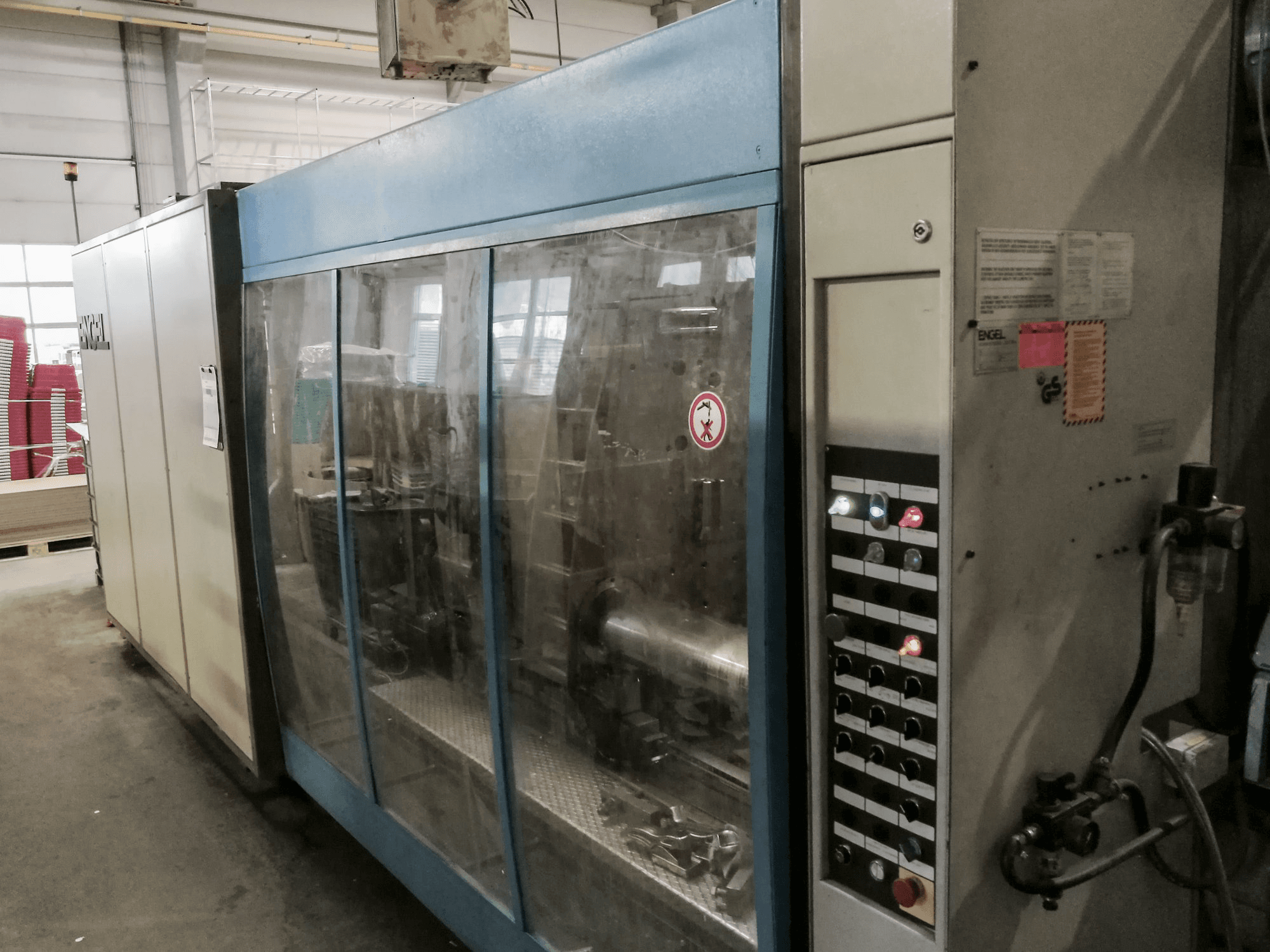

This ENGEL ES 7000/1200 B Injection Moulding Machine was manufactured in 1993 in Austria and has a working record of 137287 production hours. This machine, operated through a ENGEL C90 Control unit, has two hydraulic locking core pull cylinders increasing overall cost savings and reducing cycle time. During the past, this machine has mostly handled plastics producing household good for the end-consumer market.
Overview
- brand: Engel
- year: 1993
- MODEL: ES 7000/1200 B
- production hours: 137287
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machine
- availability: Sold
- control unit brand: ENGEL
- GINDUMAC ID: DE-INJ-ENG-1993-00001
Technical Information
General Data
- Measurements width: 13000 mm
- Measurements depth: 3900 mm
- Measurements height: 2600 mm
- Machine weight: 87000 kg
Control Unit
- Brand: ENGEL
- Model: C90
- Remote control: Yes
Injection Unit
- Screw diameter: 105 mm
- Shot weight: 580 g/sec
- Stroke volume: 4156 cm3 CM³
- Injection pressure: 1750 bar
- Plasticizing rate max.: 117 g/s PS
- Screw speed: 5-130 1/min
- Heating capacity: 68 kW
- Adjustable heating zones: 6
- Nozzle pressure: 150 kN
Clamping unit
- Clamping force: 12000 kN
- Opening stroke: 13200 mm
- Max open daylight: 1100 mm
- Distance between bars: 1400 x 1150 mm (h x v)
- Mould height min: 400 mm
- Mould height max: 1200 mm
- Size of mold platens: 1990 - 1740 mm
- Ejector stroke: 300 mm
- Ejector force for / back: 215 kN
Media
- Power consumption: 110 kVA
- Oil tank: 1800 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
