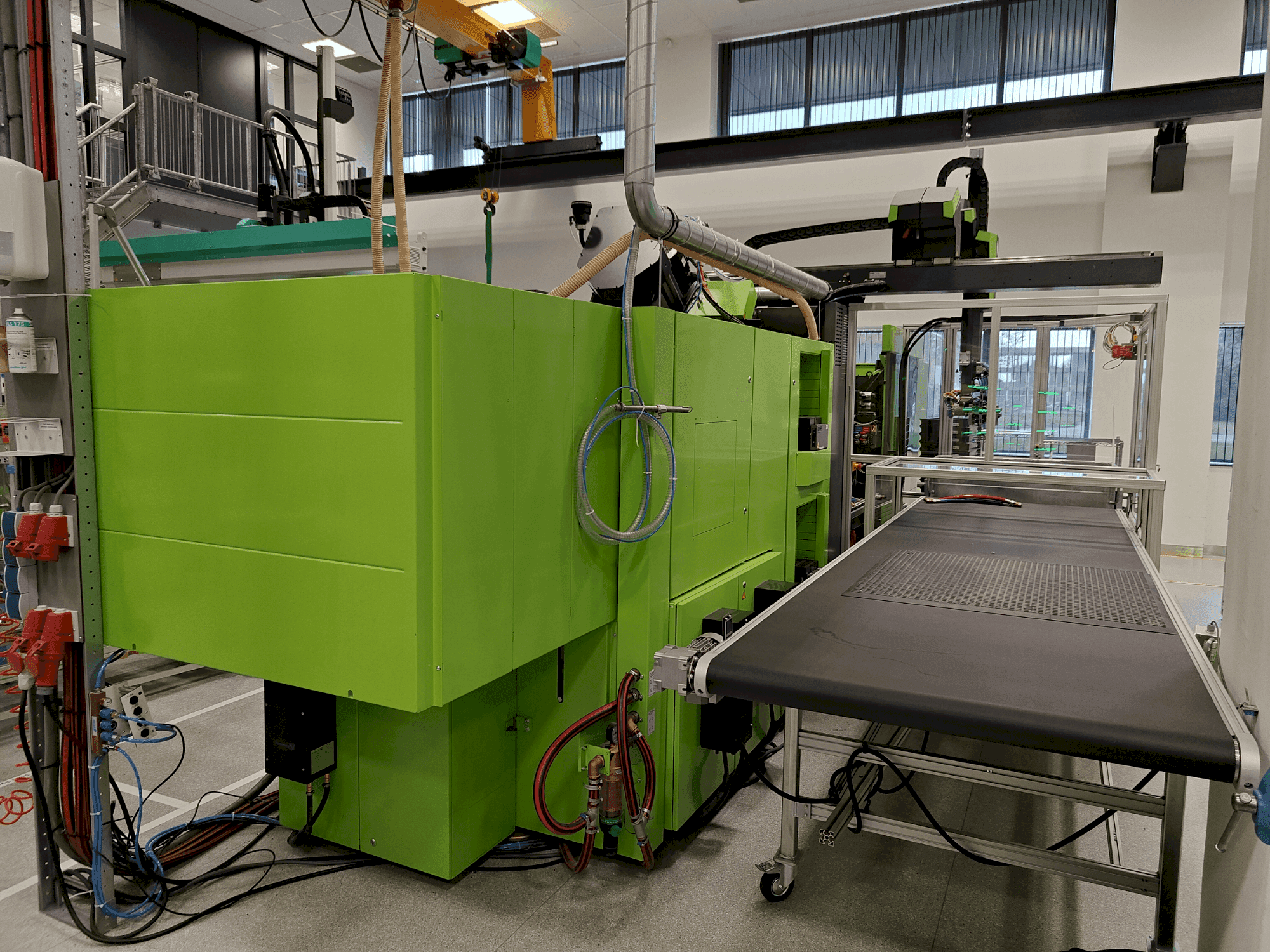

Front view of Engel e-victory 740H/50W/220 combi + Viper 20  machine

Engel - e-victory 740H/50W/220 combi + Viper 20NL-INJ-ENG-2016-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ENGEL e-victory 740H/50W/220 combi + Viper 20 injection moulding machine was manufactured in 2016. It features dual injection units with maximum injection rates of 279.45 cm³/s and 103.67 cm³/s respectively, and high injection pressures up to 2400 bar. The clamping force is robust at 2200 kN, with a generous platen size for diverse mold sizes. Consider the ENGEL e-victory machine we have for sale. Contact us for more information about this injection moulding machine.

Overview

  • brand: Engel
  • year: 2016
  • MODEL: e-victory 740H/50W/220 combi + Viper 20
  • application type: Injection Moulding
  • Location: Netherlands
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - Engel e-victory 740H/50W/220 combi + Viper 20

General Data

  • Machine weight: 14700 kg

Injection Unit

  • Screw diameter: 45 mm - 20 mm // Extra screw of 55mm and 20mm
  • Injection pressure: 2400 bar / 2000 bar
  • Screw speed: 300 min-1 / 450 min-1
  • Nozzle pressure: 67.2 kN / 50.3 kN

Clamping unit

  • Clamping force: 2200 kN
  • Opening stroke: 750 mm
  • Mould height min: 300 mm
  • Mould height max: 3000 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max distance between platen: 1050 mm
      • - Platen size standard (hxv): 880 x 830 mm
      • - Enlarged platen size (hxv): 980 x 830 mm
      • - Dry cycle stroke: 250 mm // dry cycle time: 2. 00 s
      • - L/d ratio: 20. 0 (3-zone) and 24. 0 (3-zone, barrier)
      • - Recovery rate: 31. 3 g/s and 6. 0 g/s
      • - Injection rate: 279. 45 cm³/s and 103. 67 cm³/s
      • - Screw stroke: 200 mm and 80 mm
      • - Nozzle stroke: 405 mm and 160 mm // nozzle cont. Pressure: 67. 2 kn and 50. 3 kn
      • - Heating zones incl. Nozzle: 6 zones each //heating wattage: 20. 5 kw and 6. 9 kw

    Extra information

    • - MACHINE STILL UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
