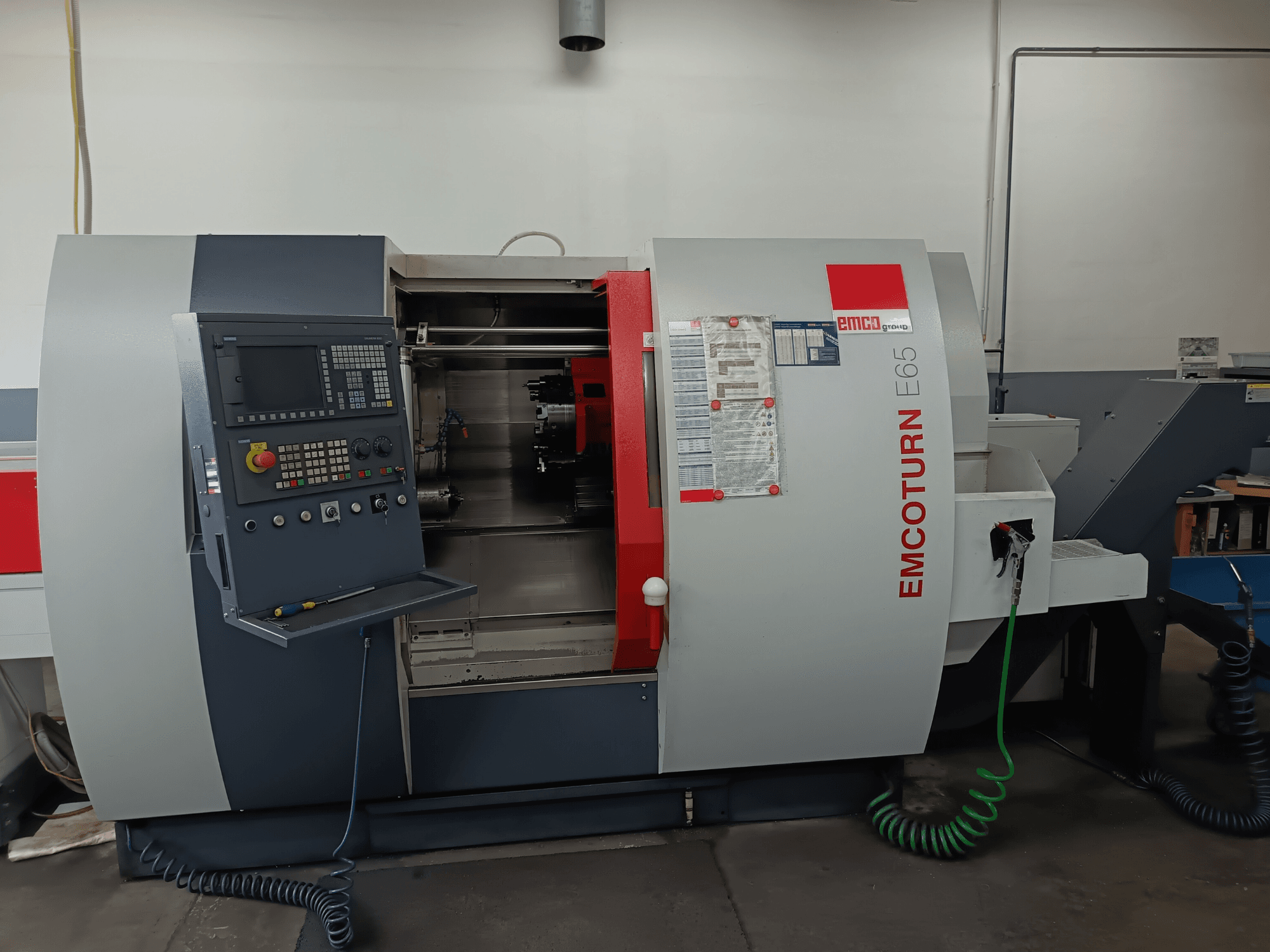

This 4-axis EMCO EMCOTURN E65 was manufactured in 2018. It features a maximum machining diameter of Ø500 mm and a maximum machining length of 520 mm. The machine is equipped with a Siemens SINUMERIK 828D control system and offers driven tools for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the EMCO EMCOTURN E65 turn-mill centre we have for sale. Contact us for further details regarding this machine.
Overview
- brand: EMCO
- year: 2018
- MODEL: EMCO EMCOTURN E65
- application type: Turning
- Location: Slovenia
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - EMCO EMCO EMCOTURN E65
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 828D
Dimensions
- Machine Height: 2060 mm
- Machine Length: 3450 mm
- Machine Weight: 6500 kg
- Machine Width: 2800 mm
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 610 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
- Taper Size: VDI 30
Additional Information
Work area:
Swing over bed: Ø610 mm
Swing over cross slide: Ø360 mm
Distance between centers: 682 mm
Distance between spindle noses: 840 mm
Max. machining diameter: Ø500 mm
Max. machining length: 520 mm
Max. bar capacity: Ø65 mm
Main spindle (belt driven):
Torque (40% DC): 305 Nm
Spindle nose: A2-6
Bearing Ø: 105 mm
Spindle bore: Ø73 mm
Max. chuck size: Ø250 mm
Counter spindle:
Speed: 60–5000 rpm
Power (40% DC): 11 / 16.5 kW
Torque (40% DC): 80 / 125 Nm
Spindle nose: A2-6
Spindle bore: Ø73 mm
Max. chuck: Ø200 mm
C-axis:
Resolution: 0.001°
Rapid speed: 100 rpm
Turret (VDI30):
Tool stations: 12
Driven tools: yes
Max. speed: 5000 rpm
Max. power: 6.7 kW
Max. torque: 25 Nm
Indexing time: 0.2 s
Rotary tools (VDI30):
Speed: 0–5000 rpm
Torque: 25 Nm
Power: 6.7 kW
Feed drives:
Rapid traverse (X/Y/Z): 30 / 15 / 30 m/min
Feed thrust X: 5000 N
Feed thrust Z: 7000 N
Acceleration: 0.4 m/s²
Tailstock:
Travel: 500 mm
Force: 8000 N
Taper: MT4
Coolant system:
Tank capacity: 230 l
Pump power: 0.57 / 2.2 kW
Pressure: 3.5 bar (optional 14 bar)
Flow rate: 15 / 65 l/min
Hydraulic unit:
Tank: 10 l
Max. pressure: 50 bar
Pneumatics:
Pressure: 6 bar
Air consumption: 5 l/min
Power supply:
Voltage: 3x400V
Frequency: 50/60 Hz
Connected load: 25 / 39 kVA
Noise level:
Average: 75 dB(A)
Key features:
C-axis main spindle
Driven tools
Hydraulic tailstock
ShopTurn programming
USB + Ethernet
15" touchscreen + 3D simulation
CE documentation
Additional equipment
Bar feeder: EMCO SL1200
Bar diameter: 8–95 mm
Bar length: 150–1200 mm
Feed rate: 60 m/min
Capacity: 10 bars Ø55 mm / 70 bars Ø8 mm
Weight: ~500 kg
Collet chuck: HAINBUCH BZI 100 (A2-8)
Max. capacity: Ø100 mm
Incl. part stop
Max. speed: 5000 rpm
Parts catcher:
Max. length: 175 mm
Max. diameter: 65 mm (optional 95 mm)
Max. weight: 4.5 kg
Chip conveyor:
Length: 1200 mm
Suitable for: long chips, snarled chips, dry & wet machining
Coolant pistol (Multiflow):
Adjustable jet + solenoid valve
Magnetic holder + spiral hose
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
