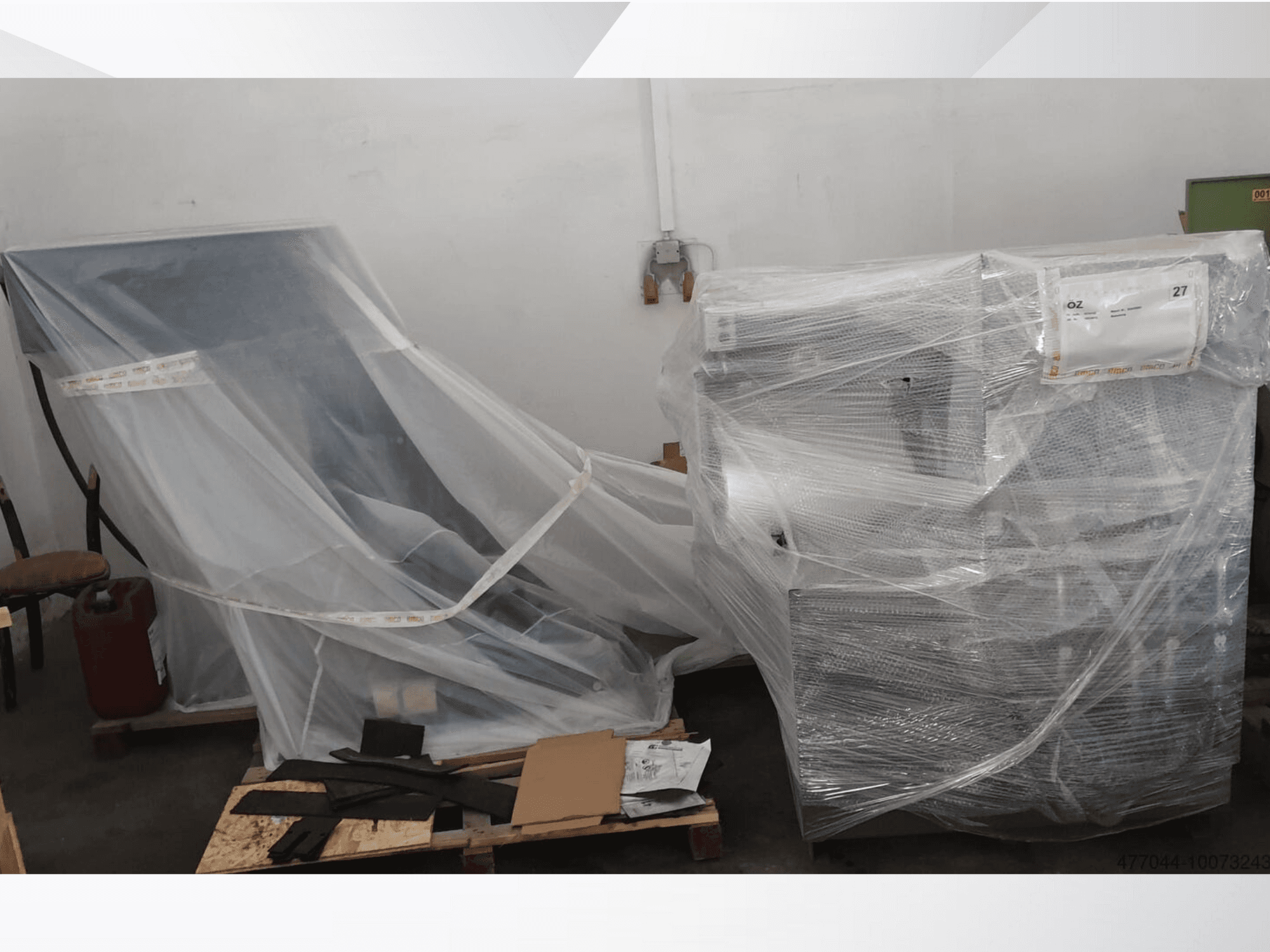

Wrapped industrial equipment in plastic, featuring a chair and machine, viewed from a side angle in a warehouse setting.
Wrapped industrial equipment in plastic, featuring a chair and machine, viewed from a side angle in a warehouse setting.

EMCO - HYPERTURN 45 G2 DE-TUR-EMC-2023-00001

Rs. 20,928,148
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis EMCO HYPERTURN 45 G2 was manufactured in 2023, featuring a CNC Turning and Milling Center with Counter Spindle. It includes Siemens Sinumerik 840D sl control, dual spindles with a speed range up to 7,000 rpm, and a bar capacity of Ø45 mm. Ideal for complex machining, it comes equipped with two 12-station tool turrets and a chip conveyor system. Consider the opportunity to buy this EMCO HYPERTURN 45 G2 turn-mill centre. Contact us for more information.

Overview

  • brand: EMCO
  • year: 2023
  • MODEL: HYPERTURN 45 G2
  • application type: Turning
  • Location: Germany
  • machine type: Turn-Mill Centre

Additional Information

  • Control System: Siemens Sinumerik 840D sl / OPERATE

  • Control Features:

  • emcoNNECT APP-based user interface

  • 22” multi-touch display

  • IPC with 240 GB

  • SHOPTURN dialogue programming

  • USB and Ethernet interface

  • Network drive

  • 3D simulation and advanced visualization

  • Main spindle power: 15 kW

  • Counter spindle power: 15 kW

  • Speed range: 0–7000 rpm

  • Spindle connection (DIN 55026): KK5

  • Max. bar capacity: Ø45 mm

  • C-axis on both main and counter spindle

  • TRANSMIT software for simple C-axis programming

  • 2 × 12-station VDI 25 radial tool turrets

  • Logic for up to 2 × 12 driven tool stations

  • Adjustable swivel speed with feed switch

  • Driven tools: Max 4 kW at 2080 rpm, 16 Nm torque, 0–6000 rpm

  • Hollow clamping cylinder on main spindle

  • Draw tubes for main and counter spindle

  • Mechanical spindle brake (main/counter)

  • Part ejector and flushing through counter spindle

  • Air gun with spiral hose

  • CNC lathe for complete machining of turned and milled parts equipped with 2 spindles, 2 tool systems, 5 linear axes, and 2 rotary axes

  • Integrated spindle motors (water-cooled) with preloaded roller guides

  • Chip conveyor: Hinged belt type, programmable, ejection height 1100 mm

  • Integrated coolant unit in the chip conveyor

  • 2 × high-pressure pumps (14 bar)

  • 2 × flushing pumps (3.7 bar)

  • LED machine room lighting

  • Hydraulic power unit

  • Complete documentation
