EMAG VSC 630

Photo Gallery

EMAG - VSC 630IT-TUR-EMA-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
EMAG VSC 630 Lathes

Show in original language

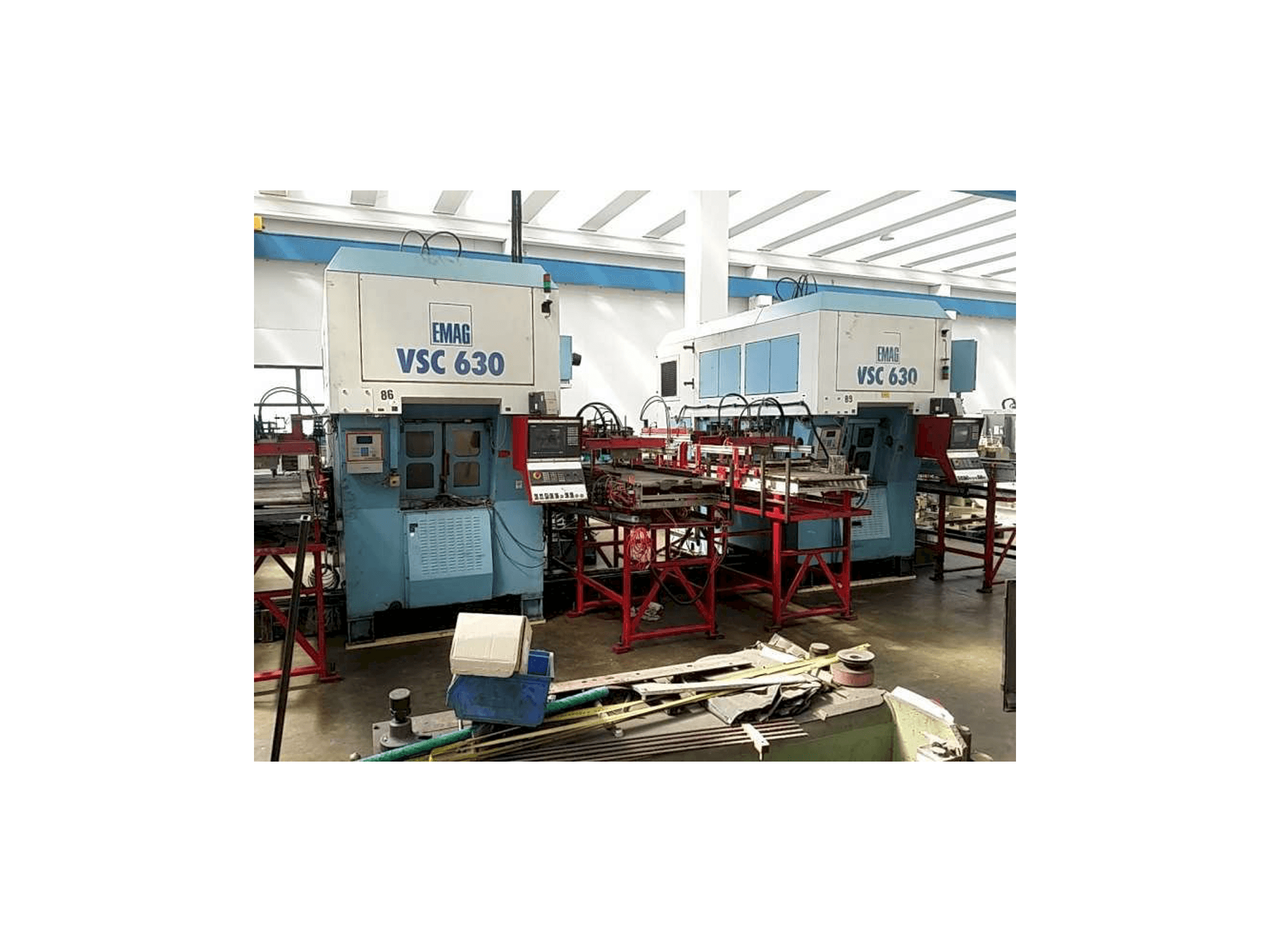

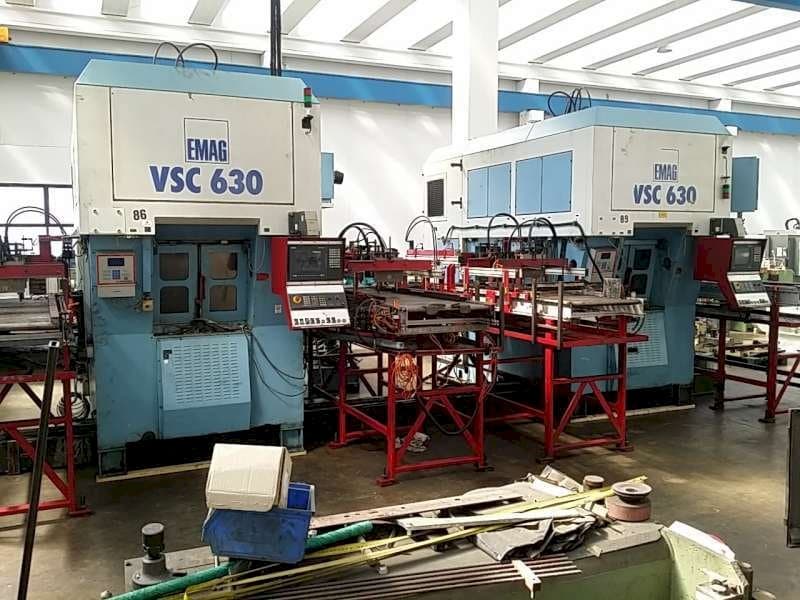

These EMAG VSC 630 Lathes were built in 1998 in Germany. Both machines are sold together and are equipped with a SIEMENS 840 Control unit. They can operate with a spindle speed up to 2000 rpm and present perfectly good conditions, as they are well kept.

Overview

brand: EMAG
year: 1998
MODEL: VSC 630
application type: Turning
Location: Italy
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMAG VSC 630

General Data

Machine weight: 2 x 22000 kg

Control Unit

Model: 840
Brand: SIEMENS

Main drive

Spindle speed range: 2000 rpm 1/MIN
Spindle motor power: 74 kW

Movement

X-AXIS Movement: 1150 mm
X-AXIS Rapid traverse: 30 / 20 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 30 / 20 m/min

Media

Main electronic connection: 415 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck 500/630
- - Max diameter 680 mm
- - Tool turret 8 pos / 60 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
