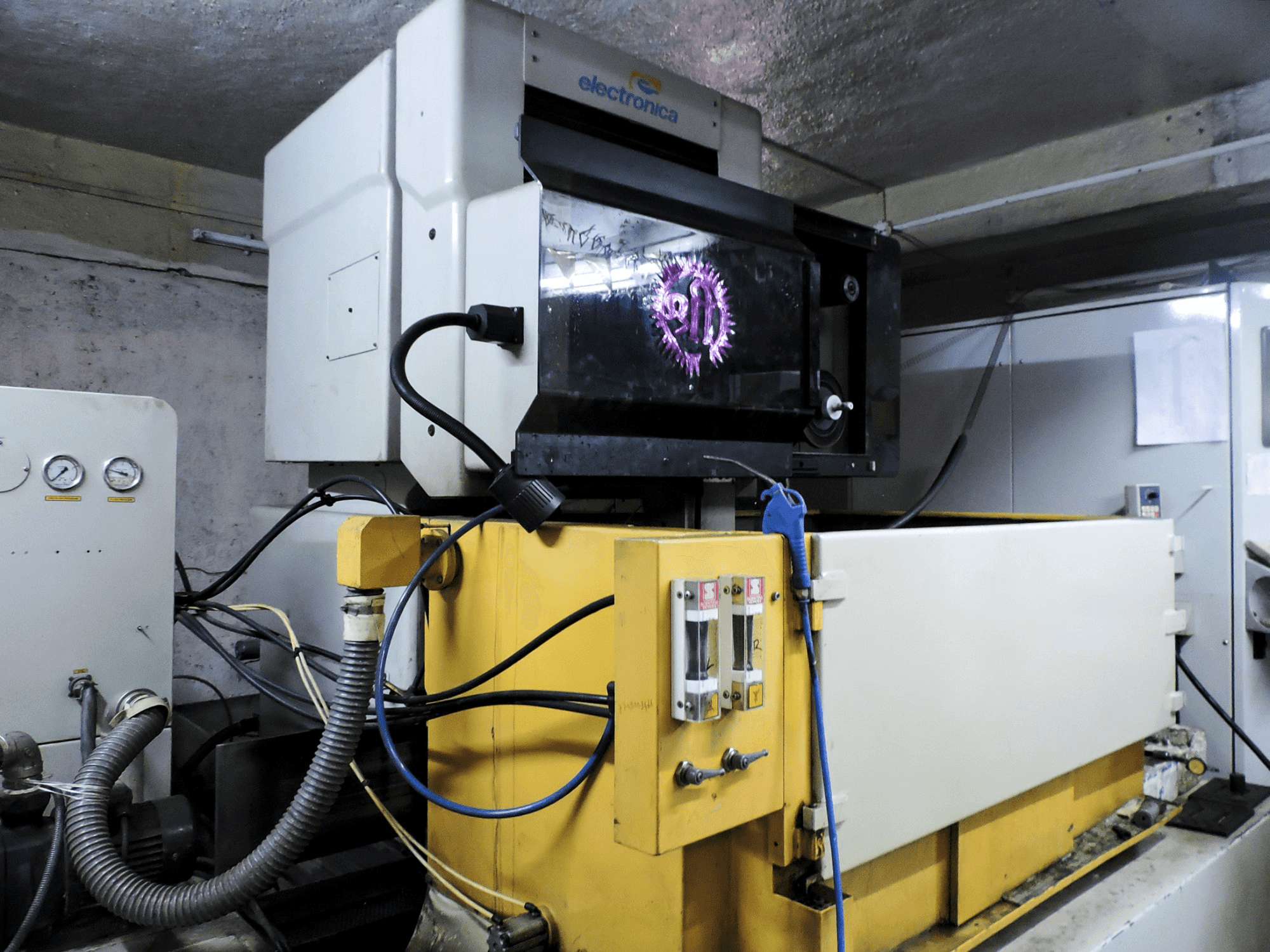

Left view of Electronica Ultracut S2 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Electronica Ultracut S2

Photo Gallery

Electronica - Ultracut S2IN-EDM-ELE-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Electronica Ultracut S2 Erosion Machine

Show in original language

This Electronica Ultracut S2 Erosion Machine was manufactured in 2010 and has a production history of 11005 working hours. This machine is operated through an Elpuls 50S EMT100W-5 Control unit and includes an Elcam software license. Besides that, the Ultracut S2 requires a low amount of maintenance and occupies less space thanks to its compact design.

Overview

brand: Electronica
year: 2010
MODEL: Ultracut S2
production hours: 110005
application type: EDM
Location: India
machine type: Wire EDM Machine

Technical Information - Electronica Ultracut S2

General Data

Measurements width: 4300 mm
Measurements depth: 4390 mm
Measurements height: 3000 mm
Machine weight: 4000 kg

Control Unit

Model: EMT100W-5

Main drive

Wire diameter: 0.25 mm
Max taper angle: 30º

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece x: 600 mm
Workpiece y: 400 mm
Workpiece z: 300 mm
Workpiece weight: 1000 kg

Table

Outer length: 580 mm
Outer width: 860 mm

Media

Main electronic connection: 415 V
Power consumption: 10 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
