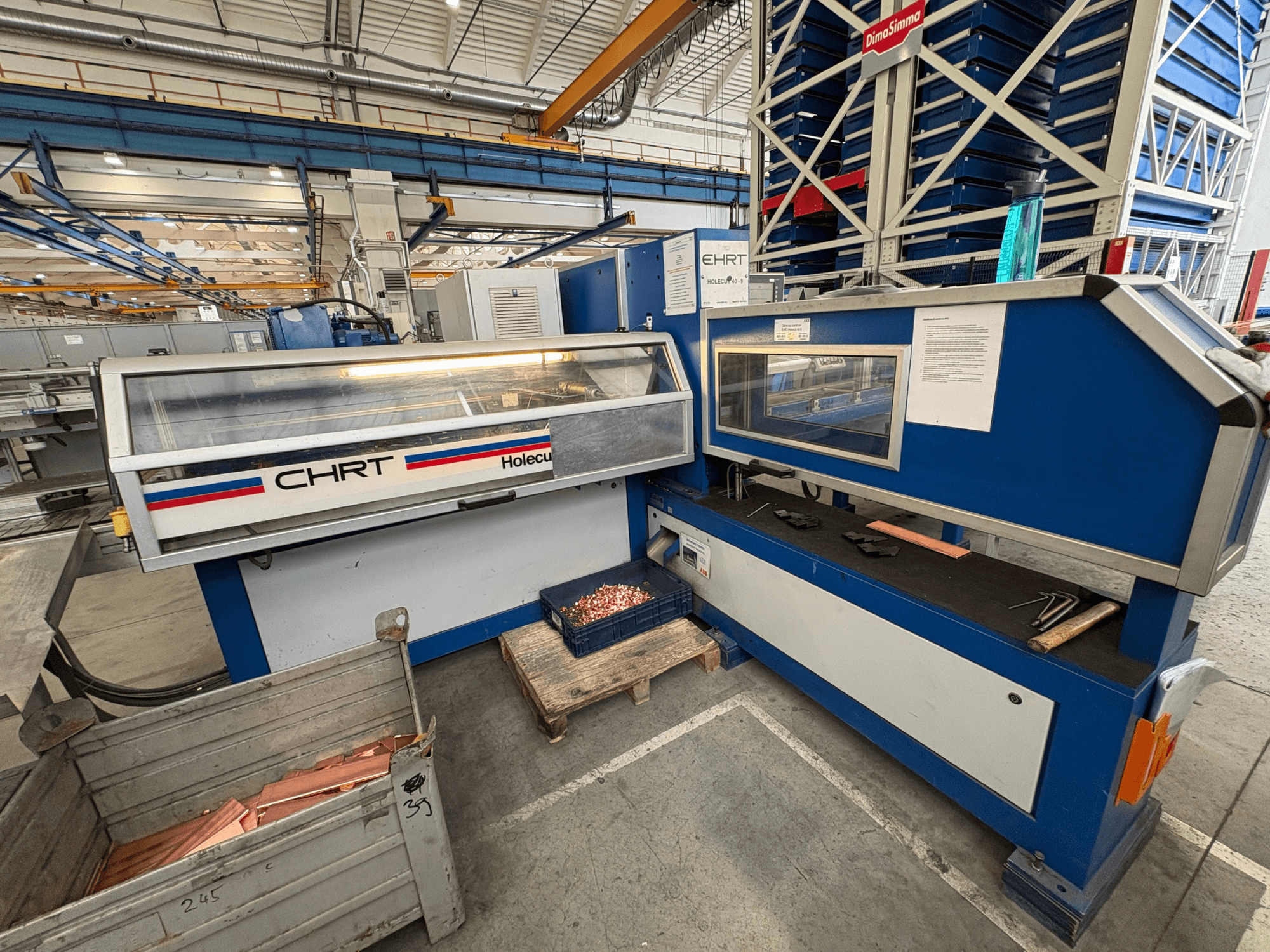

CNC punching machine manufactured in 2013. This EHRT Holecut 40-9 features an automatic infeeding system for materials up to 4.2 m long and gripper jaws accommodating material thickness from 3 to 15 mm. It supports up to 9 tools in storage and has a punching rate of 70 SPM. If you are looking to get high-quality punching capabilities, consider the EHRT Holecut 40-9 machine we have for sale. Contact us for further details.
Overview
- brand: EHRT
- year: 2013
- MODEL: Holecut 40-9
- application type: Punching
- Location: Czech Republic
- machine type: CNC Punching Machine
- control unit brand:
Technical Information - EHRT Holecut 40-9
Technical Specification
- Max. Sheet Thickness: 16 mm
- Punching Force: 400 Kn
Additional Information
Performance:
Up to 9 tools in storage
Axes acceleration: 3 m/s2
Punching rate: 70 SPM
Material specification:
Automatic infeeding system for material up to 4.2 m length
Material gripper jaws for thickness 3–15 mm
System dimensions:
Length: 12 131 (whole line)
Width: 4 240 (Ehrt)
Software:
PowerCut 6.0 software
PowerCut 6.0 second license
PowerCut network licence
Additional equipment
Infeed table (loading from the right side)
Output conveyor with pushing station (after marking)
Marking station
Barcode printer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
