➤ Used Droop & Rein FS 110 For Sale | gindumac.com

Show in original language

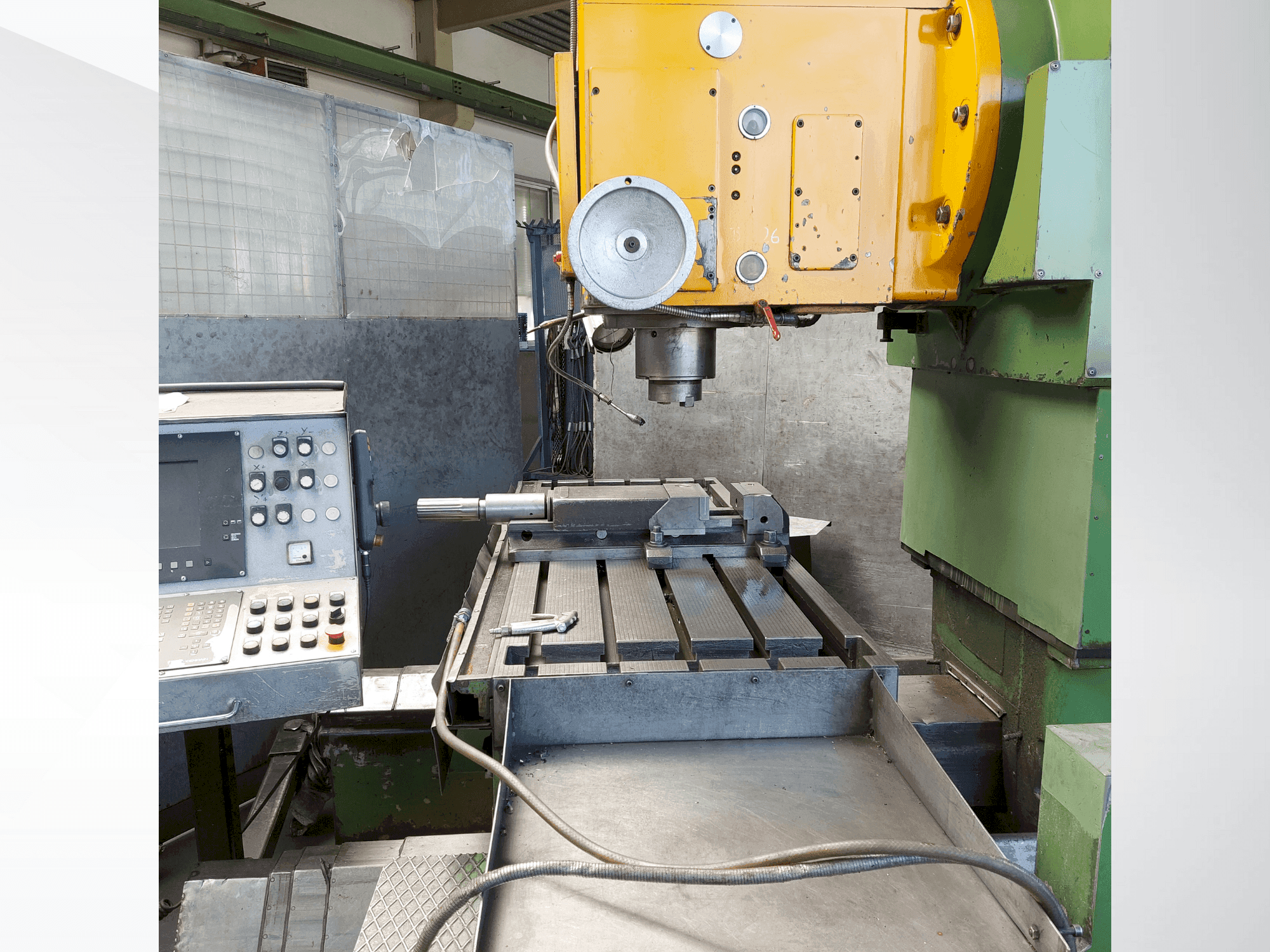

This 3-axis Droop & Rein FS 110 milling machine was manufactured in 1976. It features a robust Heidenhain TNC 426 control, a main spindle power of approximately 18KW at 1600rpm, and a tool holder of ISA 50 (DIN 2080). The machine includes an electric tool clamp and automatic central lubrication. Ideal for precision milling, the Droop & Rein FS 110 machine we have for sale. A lot of additional accessories are included. Contact us for further details regarding this milling machine.

Overview

brand: Droop & Rein
year: 1976
MODEL: FS 110
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Immediately
control unit brand: Heidenhain

Technical Information - Droop & Rein FS 110

General Data

Measurements width: 3500 MM
Measurements depth: 2500 MM
Measurements height: 3600 MM

Control Unit

Brand: Heidenhain
Model: TNC426

Main drive

Spindle speed range: 1600 rpm 1/MIN
Spindle motor power: 18 kW
Tool taper: ISA 50 (DIN 2080)

Movement

X-AXIS Movement: 1650mm
Y-AXIS Movement: 720mm
Z-AXIS Movement: 800mm
W-Axis Movement: 200mm

Additional equipment

- Electric tool clamp
- Automatic central lubrication
- Optional: Various milling holders and a few milling cutters
- Cutter head holder with driver ring
- Mounting for screw in
- Recordings
- Holders and long holders for screwing in
- shingle head CK6 Cutter and knife head holder
- Round plate milling cutters with holder, Weldon - mounts
- Collet chucks different sizes // Thread cutting chuck and Alignment mandrel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Overhauled in 1996 for improved performance and reliability
Qualitative Machine Benefits:
- - Advanced control system with heidenhain tnc 426 for precise operations

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
