DOOSAN SVM 4100

Photo Gallery

DOOSAN - SVM 4100DK-MIL-DOO-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN SVM 4100 For Sale | gindumac.com

Show in original language

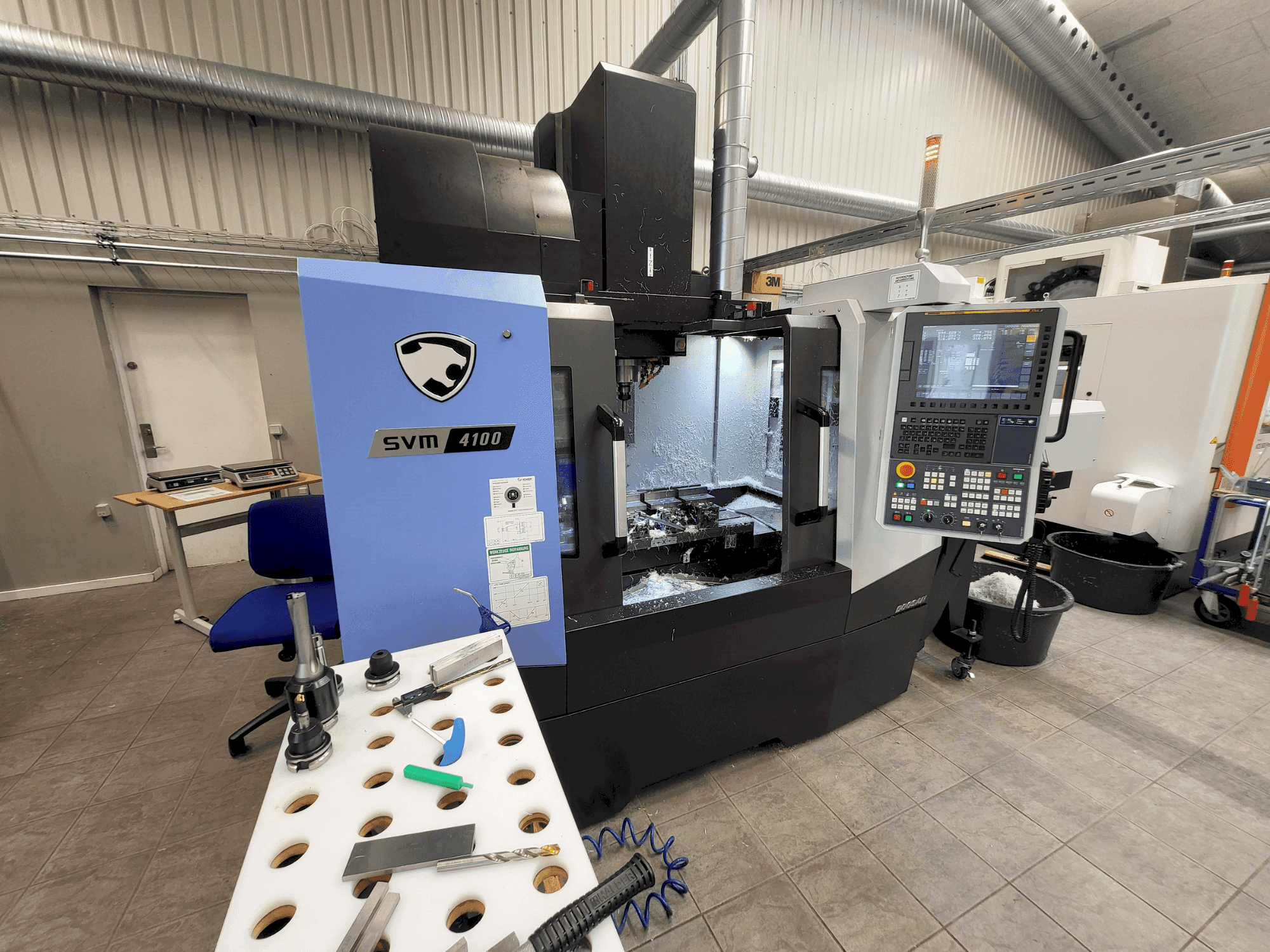

This 3-axis DOOSAN SVM 4100 vertical machining center was manufactured in 2021. Excellent condition, the machine was cutting only plastic and includes 4 x Geradi vises. It is powered by an 18.5/5.5 kW motor, and a rapid traverse rate of 36 m/min in all axes. The machine includes a 30-position automatic tool changer with a quick 1.2-second tool-to-tool change time. Ideal for high-efficiency machining with a worktable size of 920 x 410 mm and a maximum load capacity of 600 kg. Contact us for further details regarding this vertical machining center.

Overview

brand: DOOSAN
year: 2021
MODEL: SVM 4100
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre

Technical Information - DOOSAN SVM 4100

Dimensions

Machine Depth: 2171 mm
Machine Height: 2661 mm
Machine Weight: 3850 kg
Table Length: 920 mm
Table Width: 410 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Coolant System: Included
Central Lubrication System: Included
Enclosure: Full enclosure of work area
Machine Lighting & Alarm Lamp: Included
4 x Geradi vises
Leveling Plates and Bolts: Included

Machine Benefits

Technical Machine Benefits

Cutting time 500h
Tool change time (tool-to-tool): 1. 2 seconds
Tool change time (chip-to-chip): 3. 2 seconds
Max x-/y-/z-axis rapid traverse: 36 m/min
Max feed rate: 18 m/min
Axis motor power (x/y/z): 1. 8 kw each
Max tool diameter: Ø76 mm (Ø125 mm in adjacent slots)
Max tool length: 300 mm / max tool weight: 6 kg / max load capacity: 600 kg
Spindle nose to table distance: 100 – 610 mm

Extra Information

COOLANT GUN THROUGH SPINDLE COOL 1.5 KW 2 MPA ADD AXIS PREPARATION BELT CHIP CONVEYOR DOOSAN TOOL LOAD MONITORING WORK PIECE MEASUREMENT M AND H TOOLSETTER DATA SERVER 1GB AIR BLOW AROUND SPINDLE EXTRA WORKING LIGHT

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
