DOOSAN Puma MX 2100 ST

Photo Gallery

SOLD

DOOSAN - Puma MX 2100 ST

2008

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

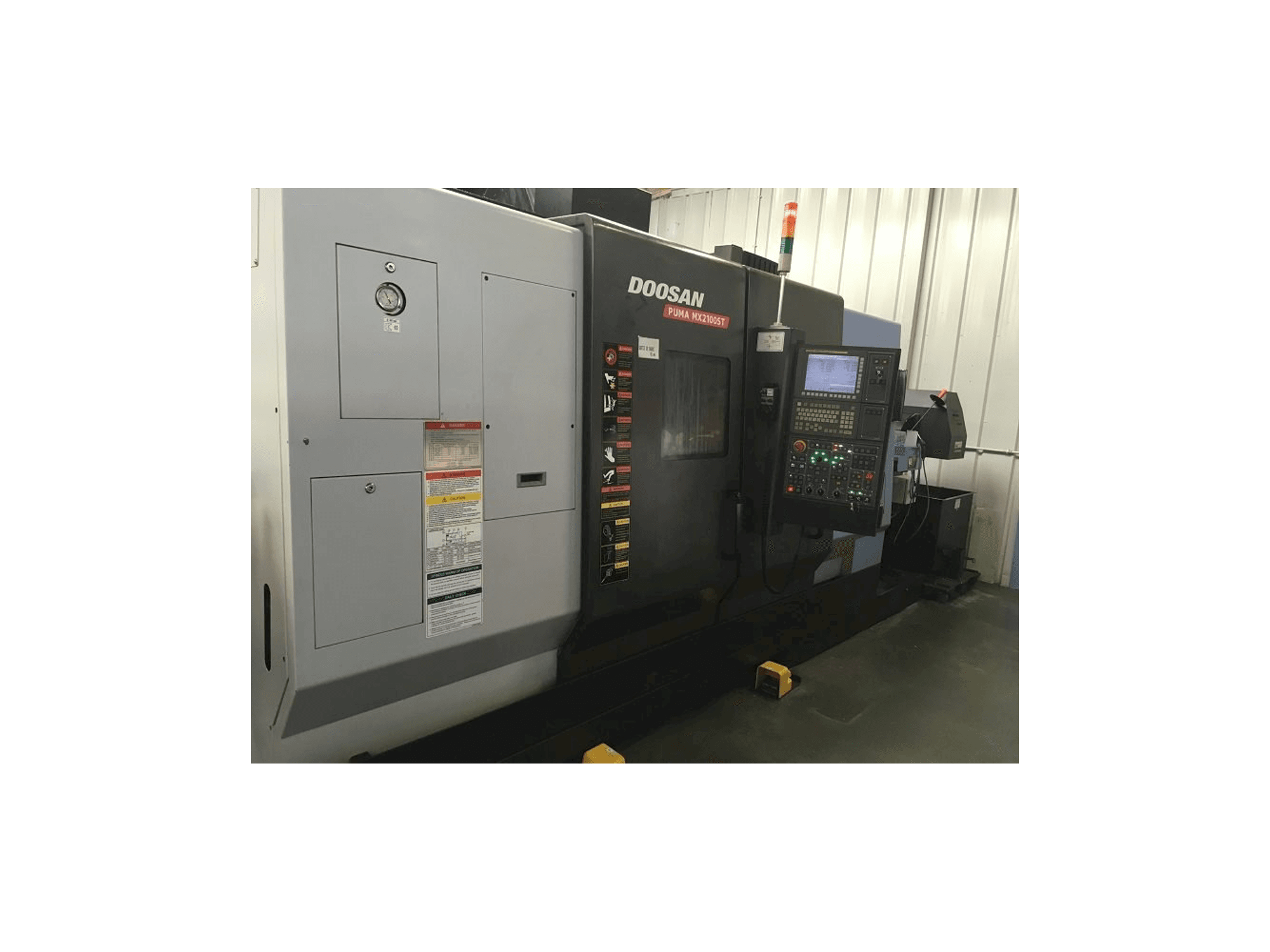

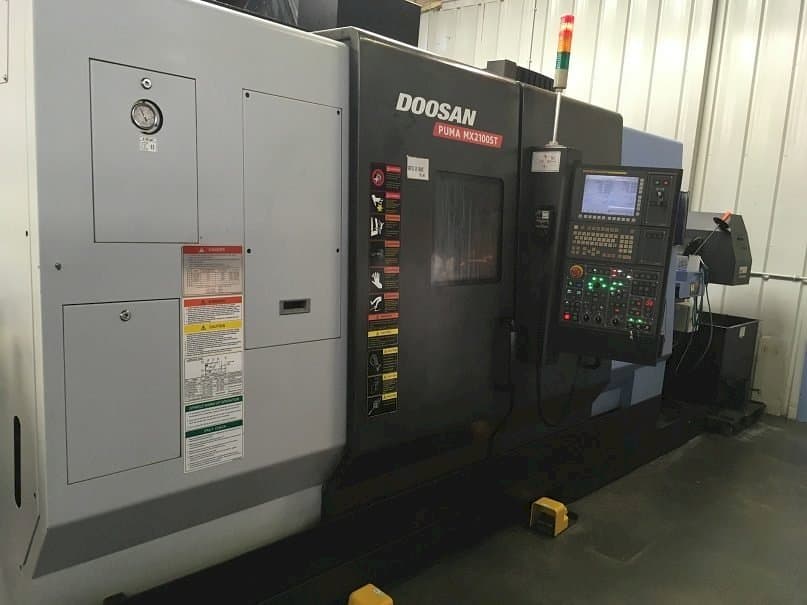

Doosan Puma MX 2100 ST Lathe

Show in original language

This Doosan MX 2100 ST Lathe was built in the year 2008 in Korea. Operated through a Fanuc 31 I Control unit, this 9 axis machine can work with a spindle speed up to 5000 rpm.

Overview

brand: DOOSAN
year: 2008
MODEL: Puma MX 2100 ST
application type: Turning
Location: France
machine type: Lathe
availability: Sold
control unit brand: FANUC
GINDUMAC ID: FR-TUR-DOO-2008-00001

Technical Information

General Data

Measurements width: 7000 mm
Measurements height: 2500 mm
Machine weight: 11500 kg

Control Unit

Brand: FANUC
Model: 31 I

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 29 kW
Number of axis: 9

Movement

X-AXIS Movement: 565 mm
X-AXIS Rapid traverse: 36 mm/min
Y-AXIS Movement: 170 mm
Y-AXIS Rapid traverse: 26 mm/min
Z-AXIS Movement: 1050 mm
Z-AXIS Rapid traverse: 36 mm/min

Workpiece

Workpiece weight: 1000 kg

Tools

Number of stations: 12
Slots in storage: 40
Max tool diameter: 90 mm

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 540 mm
- - Max turning length: 1020 mm
- - Turning and milling operations horizontal/vertical with y-axis
- - Tool taper: milling capto c 6/ turning km 63
- - Subspindle, c-axis, b-axis, y-axis
- - 40-fold automatic tool changer
- - Automatic tool measuring device with swivel arm
- - Misc. Tool holders 20 capto halter
Qualitative Machine Benefits:
- - Soft jaws
- - Automatic power off
- - Tool setter
- - Bar feeder
- - Bar puller
- - Servo driven steady rest
- - Minimum quantity lubrication (mql) system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
