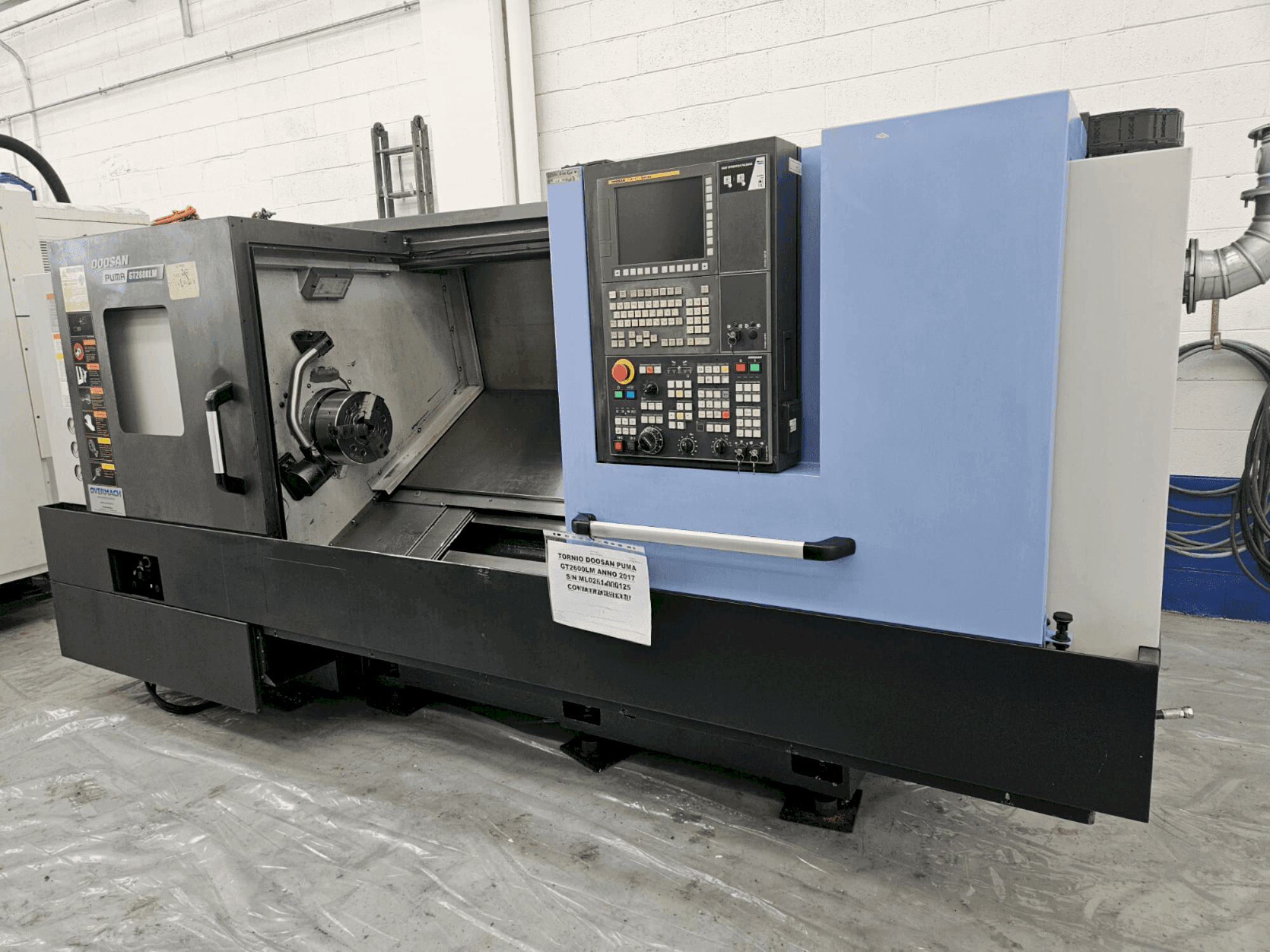

Front view of DOOSAN PUMA GT2600LM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA GT2600LM

Photo Gallery

DOOSAN - PUMA GT2600LMIT-TUR-DOO-2017-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DOOSAN PUMA GT2600LM (2017) Lathe

Show in original language

This DOOSAN PUMA GT2600LM Lathe was manufactured in 2017. It is equipped with a belt Spindle which has 3500 r/min. The machine has a turret with 12 stations.

Overview

brand: DOOSAN
year: 2017
MODEL: PUMA GT2600LM
production hours: 2965
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN PUMA GT2600LM

General Data

Measurements width: 1630 mm
Measurements depth: 3735 mm
Measurements height: 1720 mm
Machine weight: 5900 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 265 mm
Z-AXIS Movement: 1100 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Additional Information

Machine Benefits

Technical Machine Benefits

Rotating diameter on the bench 630 mm // rotating diameter on the carriage 460 mm recommended turning diameter 255 mm
Max turning diameter 410 mm // max turning length 1030 mm
Bar diameter 81 mm
Asa a2#8 spindle nose
Spindle bearing diameter (front) 140 mm // spindle through hole diameter 91 mm // min. Spindle indexing angle (c axis) deg 0. 001deg
Turret: tool external diameter size 25 mm // boring diameter 50 mm // indexing time (rotation time) s 0. 15 // motorized tool spindle speed r/min 5,000
Rapid feed (x axis) m/min 24 // rapid feed (z axis) m/min 30
Sleeve diameter 100 mm
Mt#5 quill bore taper (motorized).
Stub travel 100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
