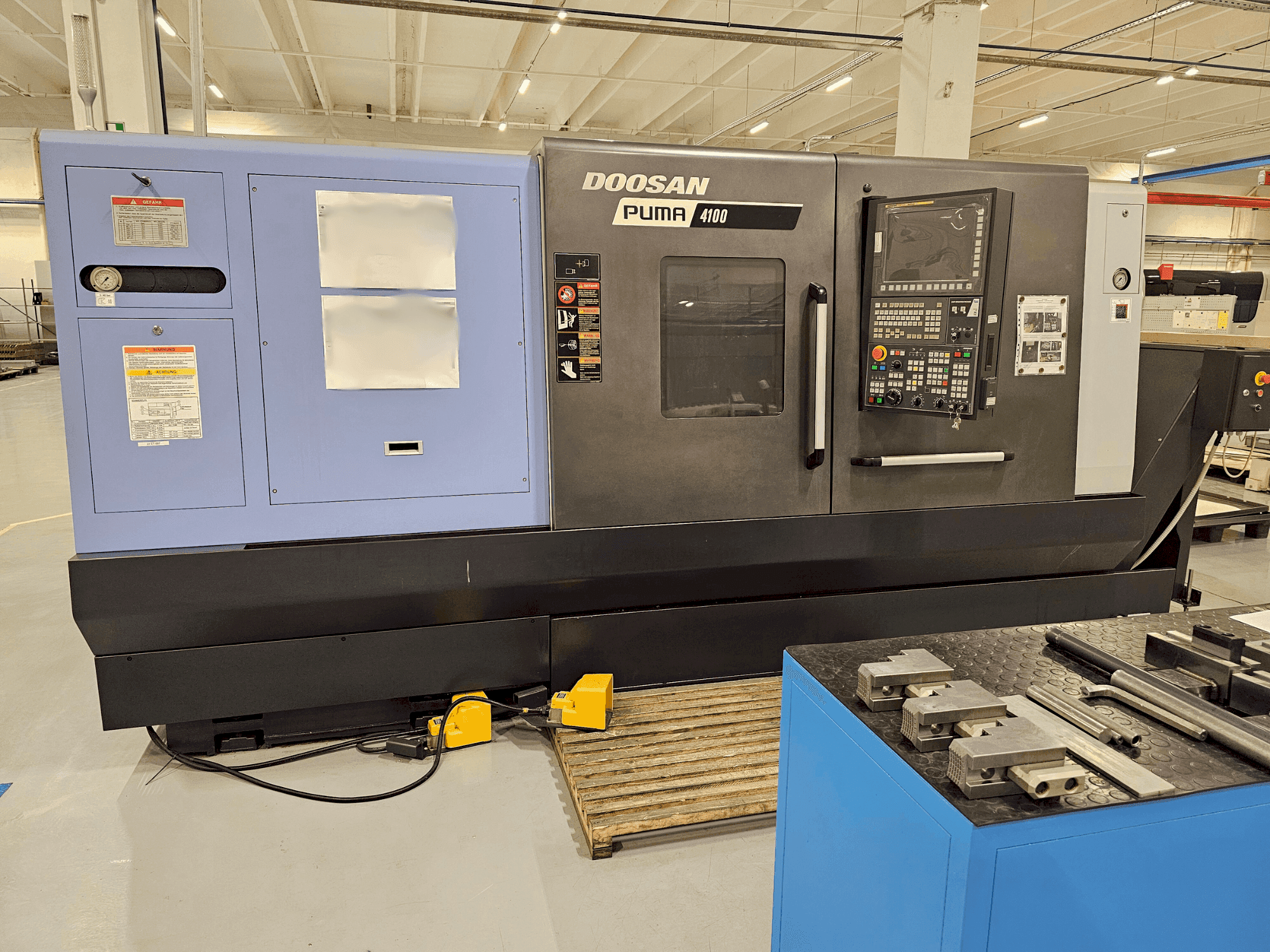

Front view of DOOSAN PUMA 4100B (2018)  machine

DOOSAN PUMA 4100B

DOOSAN - PUMA 4100B

2018

Rs. 10,938,200

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DOOSAN Puma 4100B Horizontal Lathe was manufactured in 2018 in South Korea. It is equipped with a maximum workpiece diameter of 550 mm and a maximum workpiece length of 1042 mm. Controlled by a FANUC 0i Series control, it offers a spindle speed of 2000 rpm with a spindle power of 35 kW (30 min) / 22 kW (continuous). This machine accommodates 10 tools and features a A2-11 ASA taper size, providing versatility and precision in machining operations. It comes with chip conveyor, hydraulic, lubrication and cooling system. The machine has a run time of 796 hours, is still under power and can be inspected at any time.

Overview

  • brand: DOOSAN
  • year: 2018
  • MODEL: PUMA 4100B
  • production hours: 796
  • application type: Turning
  • Location: Bulgaria
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: BG-TUR-DOO-2018-00001

Technical Information

General Data

  • Measurements width: 4654 mm
  • Measurements depth: 2056 mm
  • Measurements height: 2194 mm
  • Machine weight: 9950 kg

Control Unit

  • Brand: FANUC
  • Model: 0i Series

Main drive

  • Spindle speed range: 2000 1/MIN
  • Spindle motor power: 35/22 (30min/Cont.) kW
  • Tool taper: A2-11 ASA

Movement

  • X-AXIS Movement: 352mm
  • Z-AXIS Movement: 1105 mm

Tools

  • Number of stations: 10

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Hydraulic system // Tank capacity: 16 L, Viscosity grade of oil: ISO VG32
    • - Lubrication system // Tank capacity: 4.3 L, Discharge volume: 0,1 (50Hz) L/min, Viscosity grade of oil: ISO VG68
    • - Coolant system // Tank capacity: 365 L, Coolant oil type: Water soluble cutting fluid, Coolant pump motor power: 0.4 kW, Coolant pump max. pressure: 0,15/0,1 (60/50Hz) MPa, Coolant pump max. flow rate: 40 L/min
    • - Full enclosure chip and coolant shield
    • - Front door interlock Foot switch
    • - Hydraulic power unit
    • - Hydraulic chuck & actuating cylinde
    • - Work light
    • - Chip conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Swing over bed: 790mm // swing over saddle: 590mm
        • - Max turning diameter: 550mm
        • - Max turning length: 1042mm
        • - Bar working diameter: 116. 5mm
        • - Accuracy: positioning x, z: 0,01/0,02mm
        • - Repeatability: ±0,002 / ±0,003
        • - Drive mechanism - belt drive + gear box standard chuck size: 380(15”) mm // spindle nose: a2-11 asa // spindle bearing diameter (front): Ø180 mm // spindle through hole diameter: Ø132 mm // bore of draw tube: Ø117. 5 mm
        • - Max. Spindle torque for turning: 2379 n. M
        • - Tail stock - drive mechanism: programmable (drive bar + carriage) // quill diameter: Ø120 mm // quill travel: 120 mm // tail stock travel: 1000 mm // tail stock center: #5 dead center mt
        • - Turret - tool holder mount type: di base holder // number of tool stations: 10 ea // turret indexing type: servo driven type // turret indexing time – full station: 1. 9 // od tool size: 32x32 mm // max. Boring bar size: Ø60 mm // rapid traverse rate x, z - axis: 16/20 m/min // ballscrew (diameter x lead) – x axis: 40 x 8 mm // ballscrew (diameter x lead) – z axis: 50 x 10 mm // servo motor power x, , z – axis: 4,0 / 7,0 kw
      • Qualitative Machine Benefits:
        • - Tool holder & boring sleeve kit
        • - Easy operating system
        • - Doosan ez guide i
        • - Programmable tail stock
        • - Coolant pump 4 kw 1,0 mpa 30l/min
        • - Tool setter automatic
        • - Signal tower
        • - Oil skimmer
        • - Doosan tool load monitoring
        • - Arbitrary speed threading hardened & ground hard jaws

      Extra information

      • - Control power: 3Ph-AC220V/50Hz // Required power capacity: 42.25 kVA // Compressed air supply, pressure: 0.5 MPa // Display unit size 15” color // 380V – 220V Electric power transformer

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
