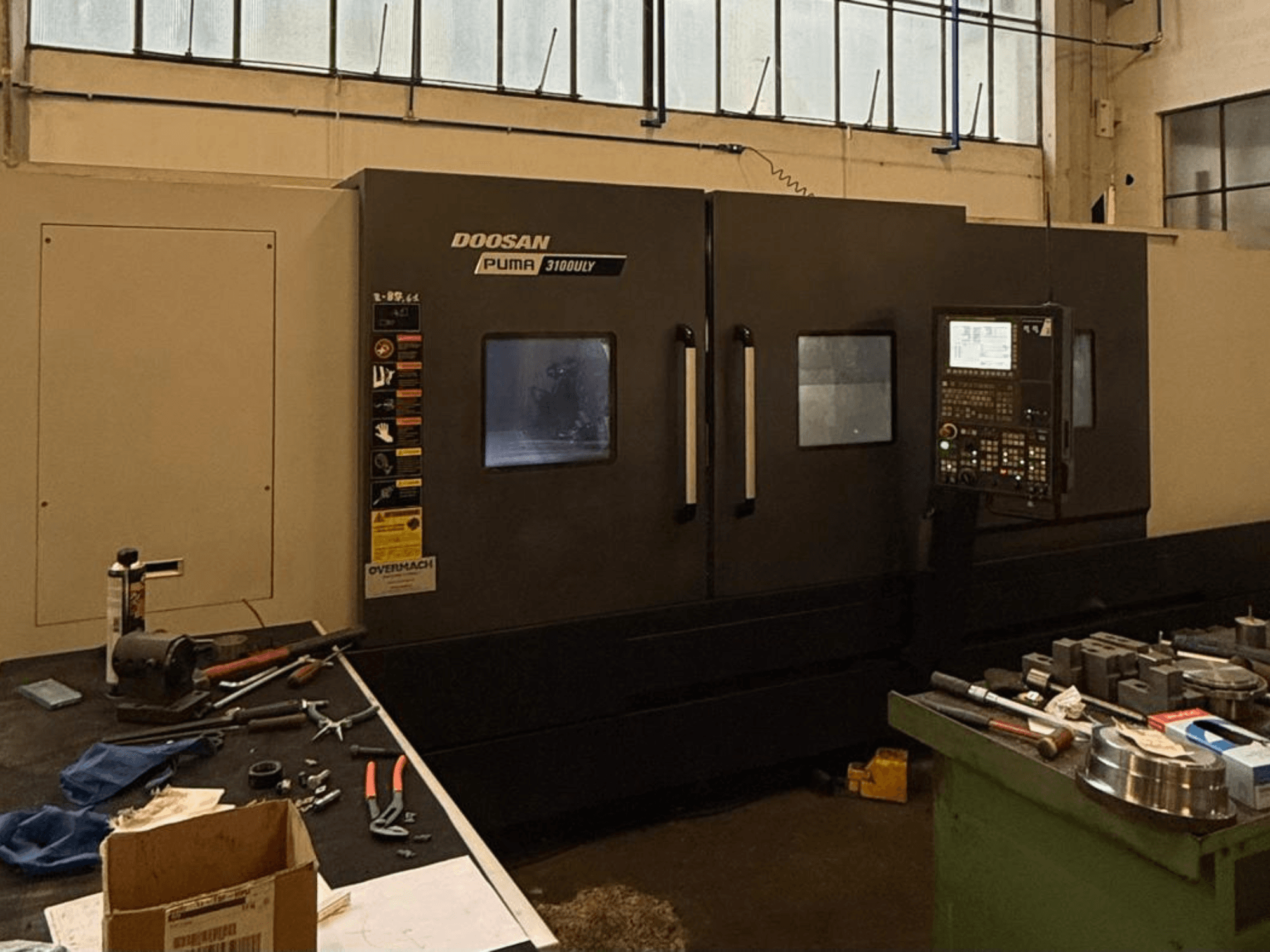

Horizontal turning machine manufactured in 2016. This DOOSAN Puma 3100 ULY was designed for precision with a maximum turning length of 3,100 mm and a turning diameter of 420 mm. It features a tool turret with 12 positions and a spindle chuck diameter of 315 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 3100 ULY machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: Puma 3100 ULY
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - DOOSAN Puma 3100 ULY
Movement
- Number of Axes: 2
- X-axis Travel: 300 mm
- Z-axis Travel: 3120 mm
Additional Information
Maximum turning length: 3,100 mm
Maximum turning diameter: 420 mm
Maximum bar capacity: 102 mm
Spindle chuck diameter (main spindle): 315 mm
Tool turret: 12 positions
Driven tool power: 7.5 kW
Number of axes: 2 (X, Z)
Additional equipment
High pressure system: 10 bar
Automatic presetting: Yes
Chip conveyor: Belt type
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
