DOOSAN - Puma 2600/500LV-TUR-DOO-2018-00001
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DOOSAN Puma 2600/500 For Sale | gindumac.com

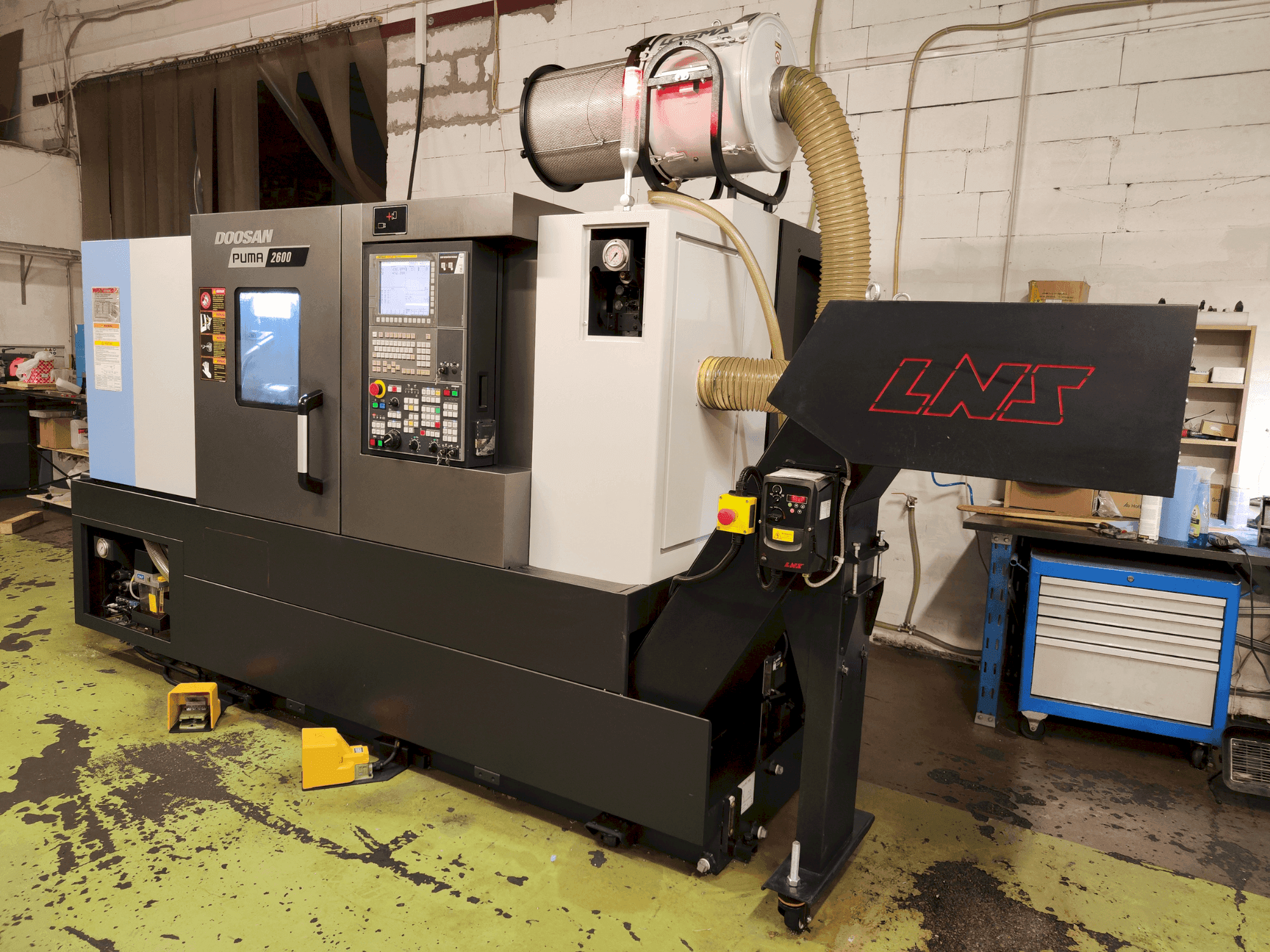

This 4-axis DOOSAN Puma 2600/500 horizontal turning machine was manufactured in 2018. It features a maximum turning diameter of 481 mm and a length of 755 mm, with rapid traverse rates of 30 m/min on the X, Z, and B axes. The spindle supports a speed of 2800 rpm and a through hole diameter of 115 mm. Ideal for precision turning operations. Contact us for more information about this machine.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: Puma 2600/500
- application type: Turning
- Location: Latvia
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN Puma 2600/500
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Depth: 3700 mm
- Machine Height: 1900 mm
- Machine Weight: 5950 kg
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Z-axis Travel: 830 mm
Technical Specification
- Spindle Speed: 2800 RPM
Additional Information
Swing over front door: 680 mm (26.8 in)
Swing over saddle: 630 mm (24.8 in)
Recommended turning diameter: 305 mm (12.0 in)
Maximum turning diameter: 481 mm (18.9 in) / 376 mm (14.8 in)
Maximum turning length: 755 mm (29.7 in) / 725 mm (28.5 in)
Bar working diameter: 102 mm (4.0 in)
Spindle nose: ASA A2-11
Spindle bearing diameter (Front): 160 mm (6.3 in)
Spindle through hole diameter: 115 mm (4.5 in)
Minimum spindle indexing angle (C-axis): 0.001°
OD tool size: 25 mm (1.0 in) {20 mm (0.8 in)*}
Boring bar diameter: 50 mm (2.0 in) {40 mm (1.6 in)*}
Turret indexing time (1st swivel): 0.15 s
Rotary tool spindle speed: 5000 rpm
Tailstock quill bore taper (live): MT#5
Compressed air supply: 100 mm (3.9 in)
Sub-spindle speed (Belt [Built-in]): 4500 rpm
Sub-spindle nose: ASA A2#5
Sub-spindle bearing diameter (Front): 90 mm (3.5 in)
Sub-spindle through hole diameter: 62 mm (2.4 in)
Sub-spindle minimum indexing angle (C-axis): 0.001°
Electric power supply (Rated capacity): 48.86 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
