- ➤ Used DOOSAN DNM 4500 For Sale | gindumac.com

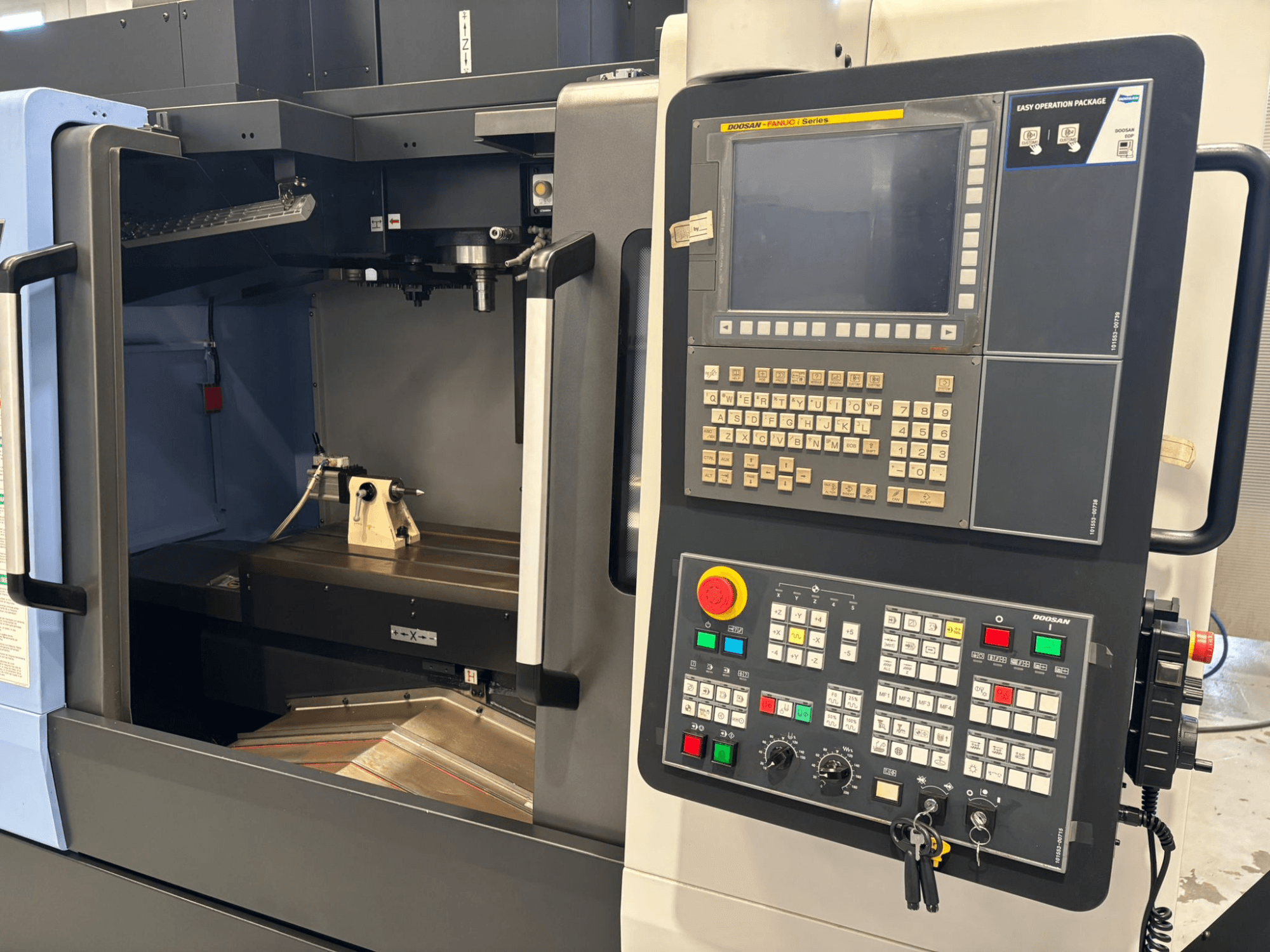

This 4-axis DOOSAN DNM 4500 was manufactured in 2016. It features X/Y/Z travel of 800 x 500 x 500 mm, a table size of 1000 x 500 mm, and a maximum table load of 400 kg. The spindle operates at 10,000 RPM with a BT40/CAT40 taper, complemented by a 24-position ATC. Rapid traverse rates are 30 m/min for X/Y and 18 m/min for Z. Includes a coolant system and full safety enclosure. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: DNM 4500
- production hours: 300
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM 4500
Control Unit
- Control Brand: FANUC
- Control Model: iSeries
Dimensions
- Table Load: 400 kg
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
Additional Information
Table size: 1000 x 500 mm
Tool changer: 24-position ATC
Rapid traverse (X/Y): 30 m/min
Rapid traverse (Z): 18 m/min
Coolant system: Included
Full safety enclosure
Additional equipment
NC rotary for 4th axis
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
