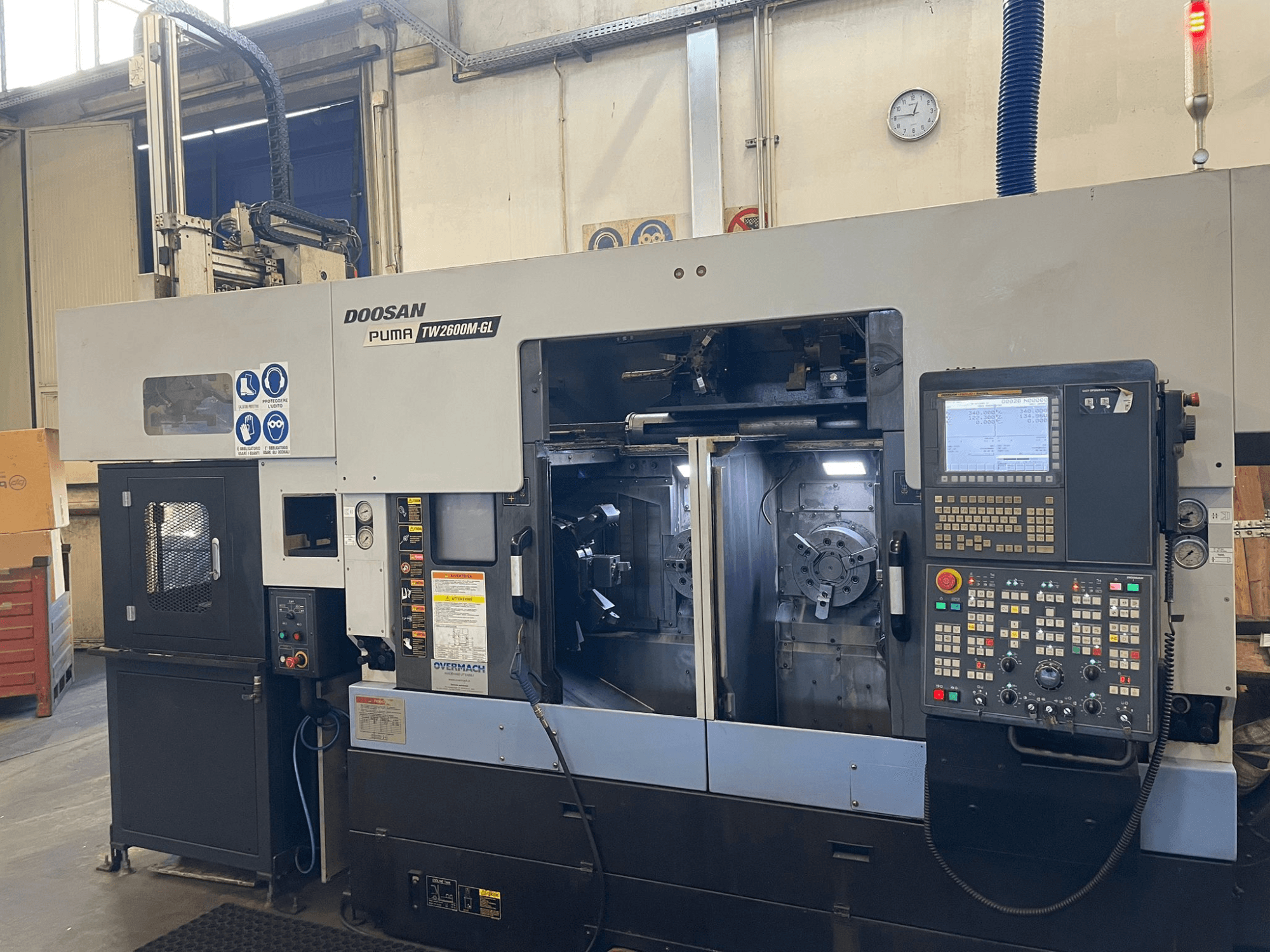

DOOSAN - TW2600 M-GL IT-TUR-DOO-2017-00006

• Control: Doosan-Fanuc i-Series (Digital FANUC, Manual Guide i, extended memory 512+512 KB, Ethernet, RS-232C, USB, rigid tapping, tool offset memory, feed rate override)

• Construction: Cast iron bed, twin separated structure (left/right), 0° inclination

Spindles and Capacity

• Spindle nose: ASA A2-6

• Chuck diameter: Ø 255 mm (dual chuck configuration)

• Bar capacity: Ø 66 mm

• Max turning diameter: Ø 350 mm

• Max turning length: 245 / 274 mm

• C1/C2 axis positioning accuracy: ±0.001° (hydraulic indexing)

• Distance between spindle centers: 450 mm

• Max load per spindle: 260 kg

Axes and Feeds

• Travels: X1/X2 = 190 mm; Z1/Z2 = 410 mm; C1/C2 = 360°

• Rapid traverse (X1/Z1, X2/Z2): 24 / 24 m/min

• Cutting feed (X1/Z1, X2/Z2): 12 / 12 m/min

• Rotary axis feed (C1/C2): 33 rpm

Turrets

• Right turret: BMT-55P motorized turret, 12 stations (all driven), max tool speed 5,000 rpm, driven tool motor 5.5 / 3.7 kW

• Tooling interface: Tool shank 25 × 25 mm; boring bar Ø 40 mm

• Indexing: 0.2 s per station, servo indexing with hydraulic clamping

Additional equipment

• Gantry loader Type A1:

  • Loading capacity: max 6 kg

  • Part diameter: Ø 25 to Ø 125 mm

  • Part length: 20–100 mm

  • Axis strokes (X/Y/Z): 710 / 215 / 220 mm

  • Typical load/unload cycle time: 9 s

  • Operating air pressure: 5–6 bar

• Parts magazine (recirculating pallet system, A1 type):

  • Number of pallets: 14

  • Max pieces per pallet: 15

  • Total capacity: up to 210 pieces

• Tooling package for both turrets:

  • Axial toolholders: 3 + 3

  • Radial toolholders: 1 + 1

  • Driven toolholders: 2 + 2

  • Reduction sleeves: ER-25, Ø 25 mm

• High-pressure coolant system

• Chip conveyor and splash guard
