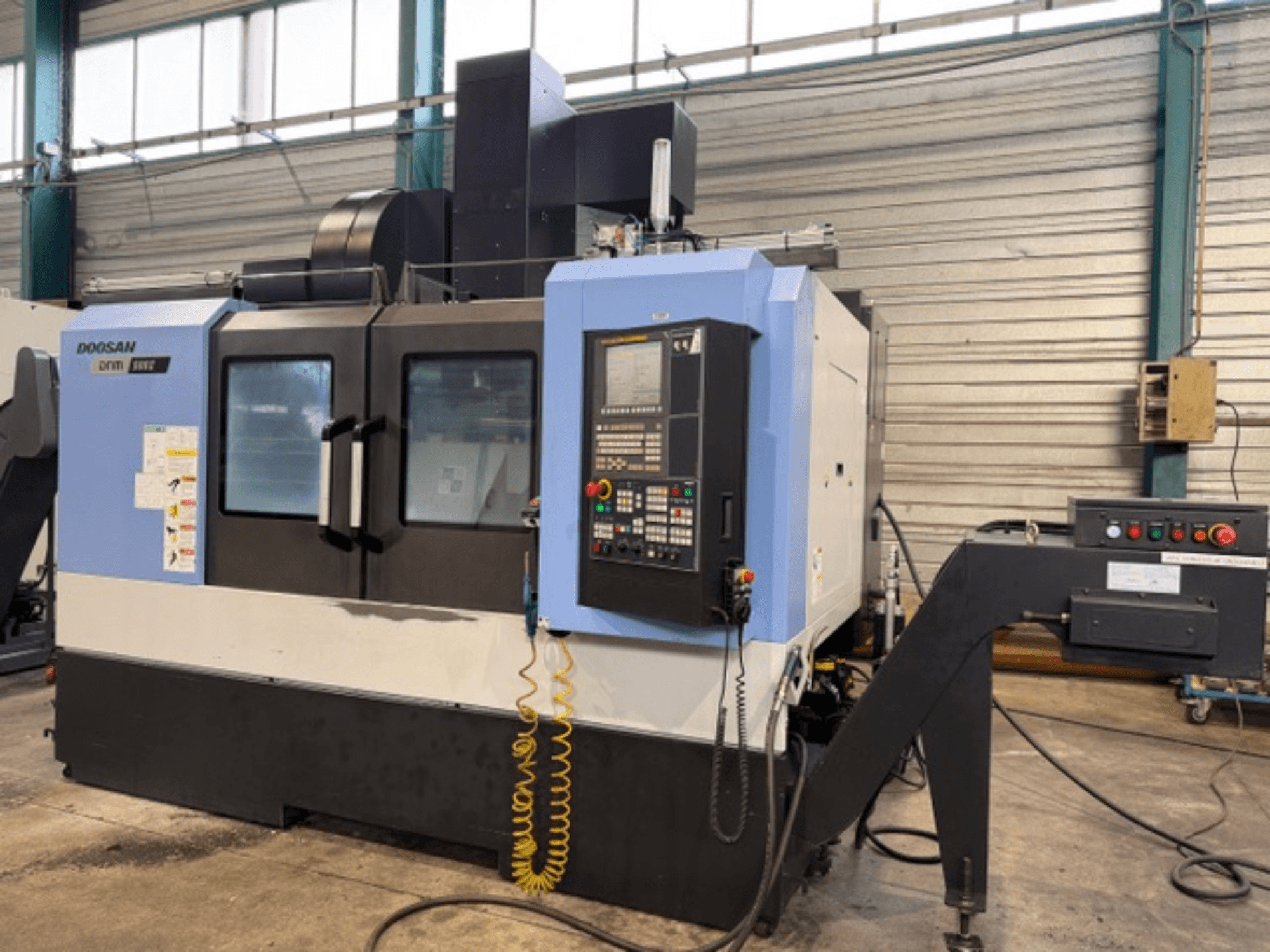

This 4s DOOSAN DNM 500II was manufactured in 2016, featuring a table size of 1200 × 540 mm and a maximum table load of 800 kg. With an X-axis travel of 1020 mm and a spindle speed of 12,000 rpm, this vertical machining center offers efficient machining capabilities. Consider the opportunity to buy this DOOSAN DNM 500II vertical machining center. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: DNM 500II
- application type: Milling
- Location: France
- machine type: Vertical Machining Centre
Technical Information - DOOSAN DNM 500II
Dimensions
- Machine Height: 2700 mm
- Machine Length: 3985 mm
- Machine Weight: 6500 kg
- Table Load: 800 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1020 mm
- Y-axis Travel: 540 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Operating hours: 4,500
Table size: 1200 × 540 mm
Rapid traverse: X/Y 36 m/min, Z 30 m/min
Tool changer: random arm, 30 stations
Coolant: through‑spindle coolant 20 bar, flood coolant
Preparation: 4th‑axis preparation
Control: FANUC Oi‑M Easy Guide; look‑ahead 200 blocks; electronic handwheel; USB port
Other: automatic door opening/closing; 3‑color status lamp; documentation and CD‑ROM
Condition: Good; perfect working condition
Availability: Immediately available
Additional equipment
4th axis: NIKKEN CNC202FA
Chip conveyor
Belt‑type oil skimmer
Air/coolant guns
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
