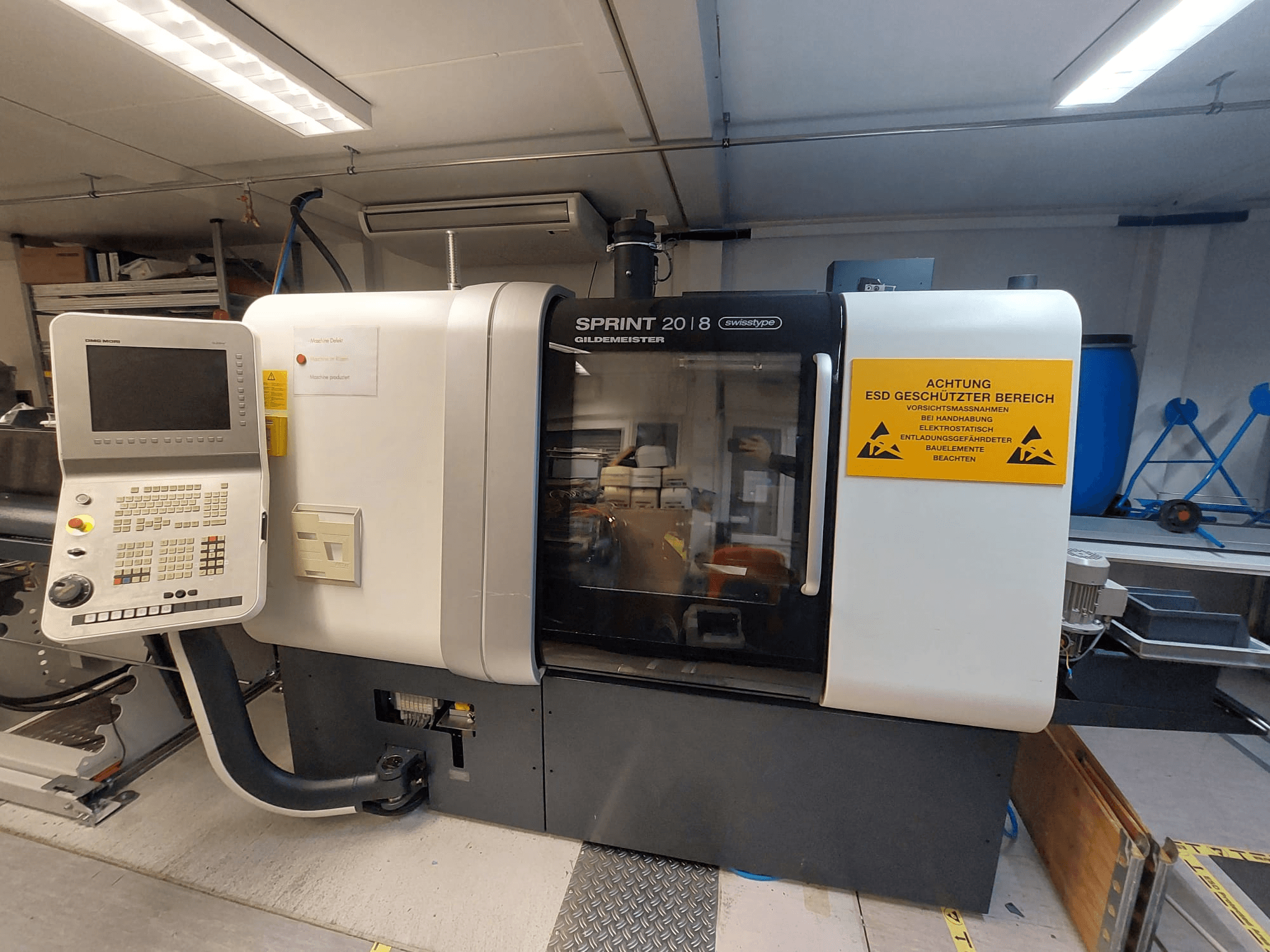

DMG MORI - Gildemeister Sprint 20/8 LinearDE-TUR-DMG-2016-00004

• Control / CNC: Fanuc 31i with 15" TFT color monitor

• CNC system: Fanuc 31i

• Axes: 6+2 axes / total 8 axes

• Y-axes: 2

• Channels: 2

• Spindles: 2

Spindle data

• Max bar diameter counter spindle: 20 mm (25 mm optional)

• Counter spindle speed max: 10,000 rpm

• Counter spindle power (S1): 3.7 kW

Travels / strokes

• Stroke Z1: 80 mm

• Stroke Z2: 300 mm

• Rapid traverse Y1: 40 m/min (30 m/min)

• Acceleration max X1: 10 m/s²

• Feed force S1 axes Z1 / Z2 / X2 / Y2: 250 daN

• Feed force S1 axis Y1: 500 daN

• Feed force linear axis X1: 60 daN

Slide 1

• Stroke X1: 50 mm

• Stroke Y1: 350 mm

• Tool positions: 6 positions, 12x12 mm

• Driven tools: 5 incl. spindle ESX16

Slide 2

• Stroke X2: 240 mm

• Tool positions external: 4 positions, 12x12 mm

• Tool positions internal: 4 positions, Ø20 mm

• Driven tools: 5 with ESX/16 (option)

Coolant

• Coolant type: Emulsion

• Coolant tank capacity: 250 l

• Coolant pump capacity max: 120 l/min

• Coolant pressure: 1.5 bar

Electrical data

• Electrical connection: 400 V ±10%

• Frequency: 50 Hz

• Fuse: 100 A

• Control voltage: 24 V DC

• Lighting voltage: 24 V DC

• Rated current: 86 A

• Power requirement: approx. 56 kVA

• Network type: TN-S required

Protection / operating conditions

• Protection class machine: IP67

• Protection class electrical cabinet: IP54

• Ambient temperature: +10 to +35 °C

• Max humidity: 75%

• Installation altitude max: 1000 m

• Noise level: <70 dBA

CNC functions

• Measurement system: Metric or inch

• Input resolution: 0.001 mm

• Feed range: 0.001 mm/rev to rapid

• Feed override: 0–120%

• Spindle speed: Programmable rpm

• Spindle orientation: M5 or M19

• Coordinate systems: Cartesian, polar, cylindrical

• Constant surface speed: Yes

• Tool programming: With tool data

• Tool offset memory: 200 offsets

• Radius compensation: G40 / G41 / G42

• Tool life monitoring: Yes (option)

• Tool monitoring: Load monitor (option)

• Program storage: 1 MB, up to 1000 programs

• Ethernet interface: Yes

• Program input/output: Serial, keyboard, PCMCIA, USB

• Cycles: Turning, facing, grooving, threading, drilling, polygon turning

• Subprogram levels: Up to 4

• Slide synchronization: Yes

• Variable programming: Up to 600 variables

• Diagnostics: Integrated PLC ladder display, oscilloscope

• Display: 15" TFT LCD

• Languages: Multiple

General data

• Machine dimensions: 2200 x 1050 x 1770 mm

• Operating hours: 12,276 h

• Program run time: 4,426 h

• Application: Magnesium machining

Machine features

• Pneumatic ejector

• Spindle synchronization

• C-axis

Additional equipment

• Chip conveyor

• Bar feeder table
