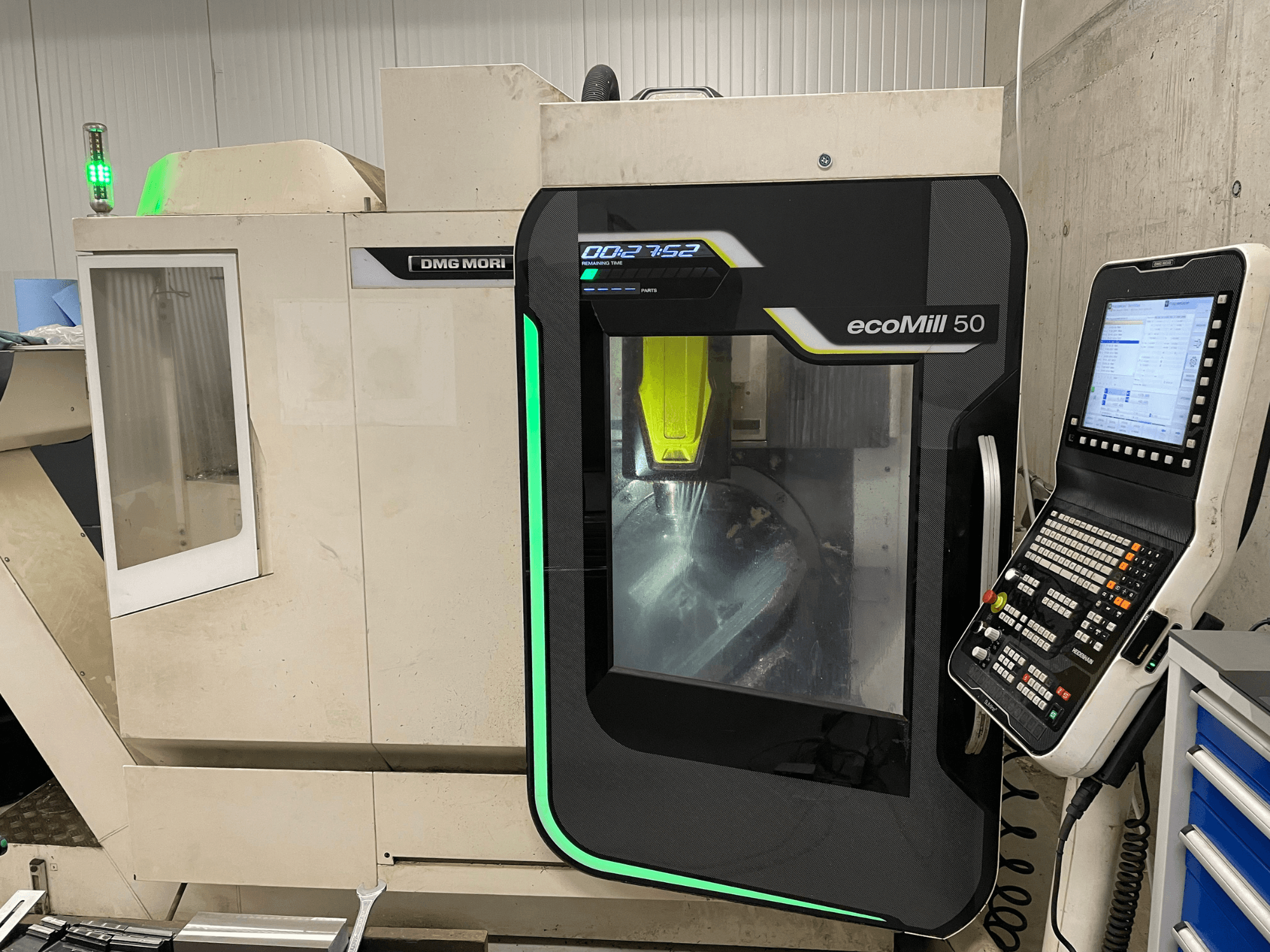

This 5-axis DMG MORI ecoMill 50 was manufactured in 2014. It features an X-axis travel of 500 mm, Y-axis travel of 450 mm, and Z-axis travel of 400 mm. The machine includes a table diameter of Ø630 mm and a rapid traverse rate of 24 m/min. If you are looking to get high-quality machining capabilities, consider the DMG MORI ecoMill 50 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2014
- MODEL: ecoMill 50
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - DMG MORI ecoMill 50
Dimensions
- Machine Height: 2465 mm
- Machine Length: 2775 mm
- Machine Weight: 4000 kg
- Machine Width: 3055 mm
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Additional Information
B-axis range: -5° to +110°
C-axis range: 360°
Table diameter: Ø630 mm
Center bore: Ø30 H7
Feed rate (X/Y/Z): up to 24,000 mm/min
Rapid traverse (X/Y/Z): 24 m/min
Drive system: AC servo motors on X, Y, Z axes
Connected load: 17 kVA
Operating voltage: 400 V
Frequency: 50 Hz
Required floor space: 4,935 × 5,500 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
