DMG MORI - DMU 75 MonoBlockHU-MIL-DMG-2019-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI DMU 75 MonoBlock | For Sale

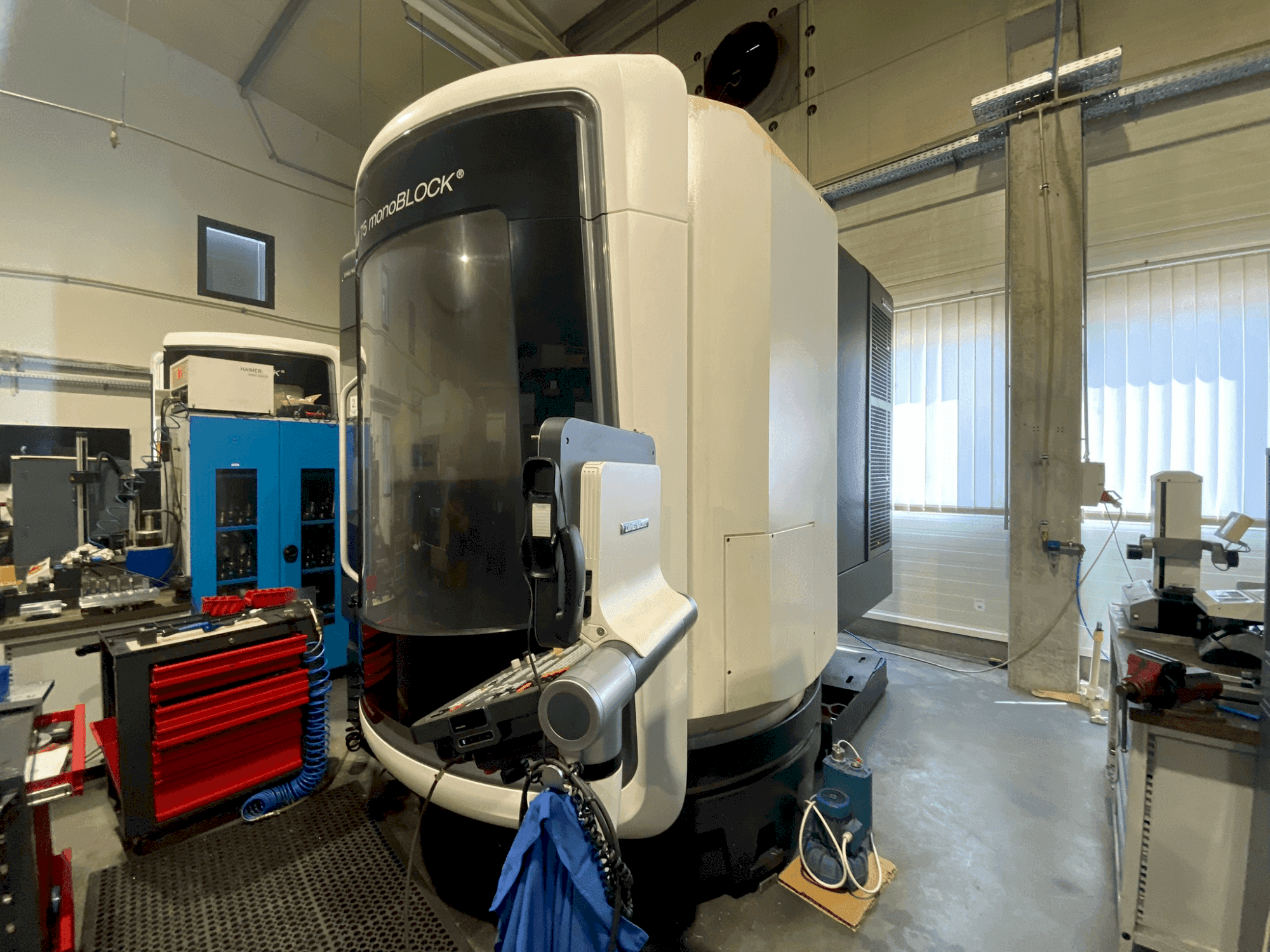

This DMG MORI DMU 75 MonoBlock was manufactured in 2019. A vertical machining center featuring a Heidenhain control and a spindle speed of 20,000 rpm. It offers X-axis travel of 750 mm, Y-axis of 650 mm, and Z-axis of 560 mm. A great opportunity to buy this DMG MORI DMU 75 MonoBlock vertical machining center. Contact us for further details regarding this vertical machining center.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: DMU 75 MonoBlock
- production hours: 5714
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 75 MonoBlock
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640 3D
Dimensions
- Machine Weight: 12300 kg
Movement
- Number of Axes: 5
- X-axis Travel: 750 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Power: 35 kW
- Spindle Speed: 20000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Precision and reliability with heidenhain control.
- Temperature compensation with 4 built-in sensors
- Direct measurement on x, y, z axes
- Max feed rate (x, y, z): 40,000 mm/min
- Rapid traverse rate (x, y, z): 40 m/min
- High spindle speed of 20,000 rpm
- High spindle power and torque
- Advanced control system with 3d capabilities
Technical Machine Benefits
- High spindle speed, 5-axis capability.
- Spindle motor power: 35 kw (40% duty cycle), 25 kw (100% duty cycle)
- Cooling pressure: 40 bar / tool capacity: 60 tools (sk 40) / tool change system: dual-arm tool changer
- Max tool weight: 8 kg / max tool length: 315 mm
- Rotary table (a & c axes):table diameter: 650 mm
- Maximum load: 600 kg
- A-axis tilt range: +120° to -120°
- C-axis rotation range: 360°
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
