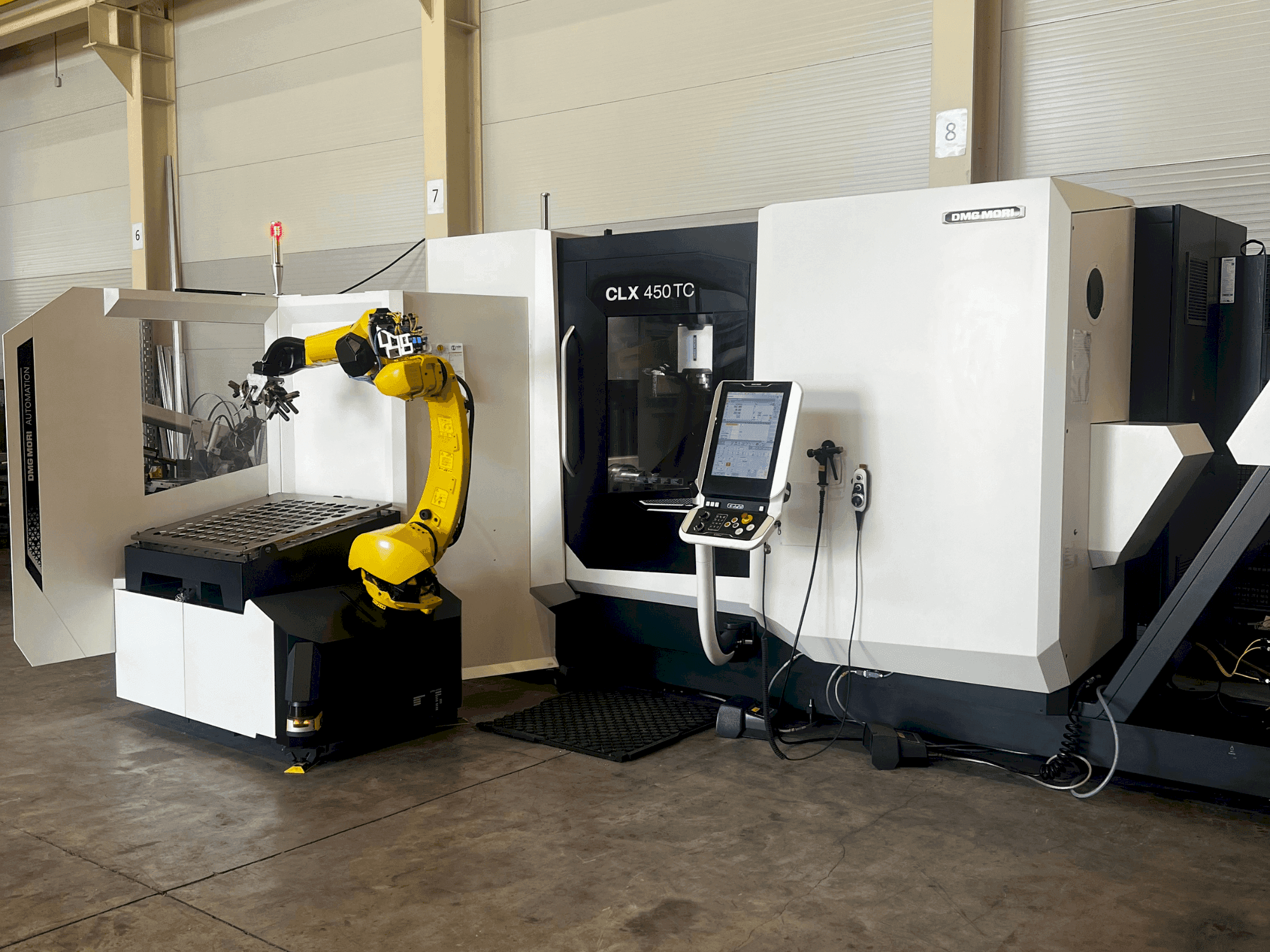

Front view of DMG MORI CLX 450 TC  machine

DMG MORI - CLX 450 TCHU-TUR-DMG-2024-00001

Rs. 45,473,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG MORI CLX 450 TC was manufactured in 2024. It features a universal turning/milling center with a main spindle speed of up to 5000 rpm and a milling spindle speed of up to 12000 rpm. The machine includes a B-axis of ±120°, Y-axis travel of ±100 mm, and a 30-fold chain magazine. It's equipped with Siemens 840D sl control for precision. Consider the opportunity to buy this DMG MORI CLX 450 TC turn-mill centre. Contact us for more information.

Overview

  • brand: DMG MORI
  • year: 2024
  • MODEL: CLX 450 TC
  • production hours: 82
  • application type: Turning
  • Location: Hungary
  • machine type: Turn-Mill Centre
  • availability: Immediately

Technical Information - DMG MORI CLX 450 TC

General Data

  • Measurements width: 2710 mm
  • Measurements depth: 3900 mm
  • Measurements height: 2470 mm
  • Machine weight: 10000 kg

Main drive

  • Spindle speed range: 5000 1/MIN
  • Spindle motor power: 14/17 kW
  • Number of axis: 5

    Additional equipment

    • - Dynamic two-pressure clamping for the main and counter spindle
    • - Tailstock function for the counter spindle with foot switch

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Torque: 275/345 nm
        • - Hollow clamping device: Ø67 mm
        • - B-axis: ±120°
        • - Y-axis: ±100 mm
        • - 30-fold chain magazine
        • - Tailstock: hydraulically operated with foot control pedal
        • - Document no. : 4224449

      Extra information

      • - Additional Information Power: 11 kVA Max Input Current: 16 A Short-Circuit Current: 1.25 kA Max Voltage: 440 V ±10% Control Voltage: 230 V Signal Voltage: 24 V Tools Turning-/milling spindle Drive power: 8.8/10.5 kW Torque: 73/90 Nm Speed range: 0-12000 rpm Reception: HSK-A 63 DIN 69893

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Alessandro Martini

    Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
