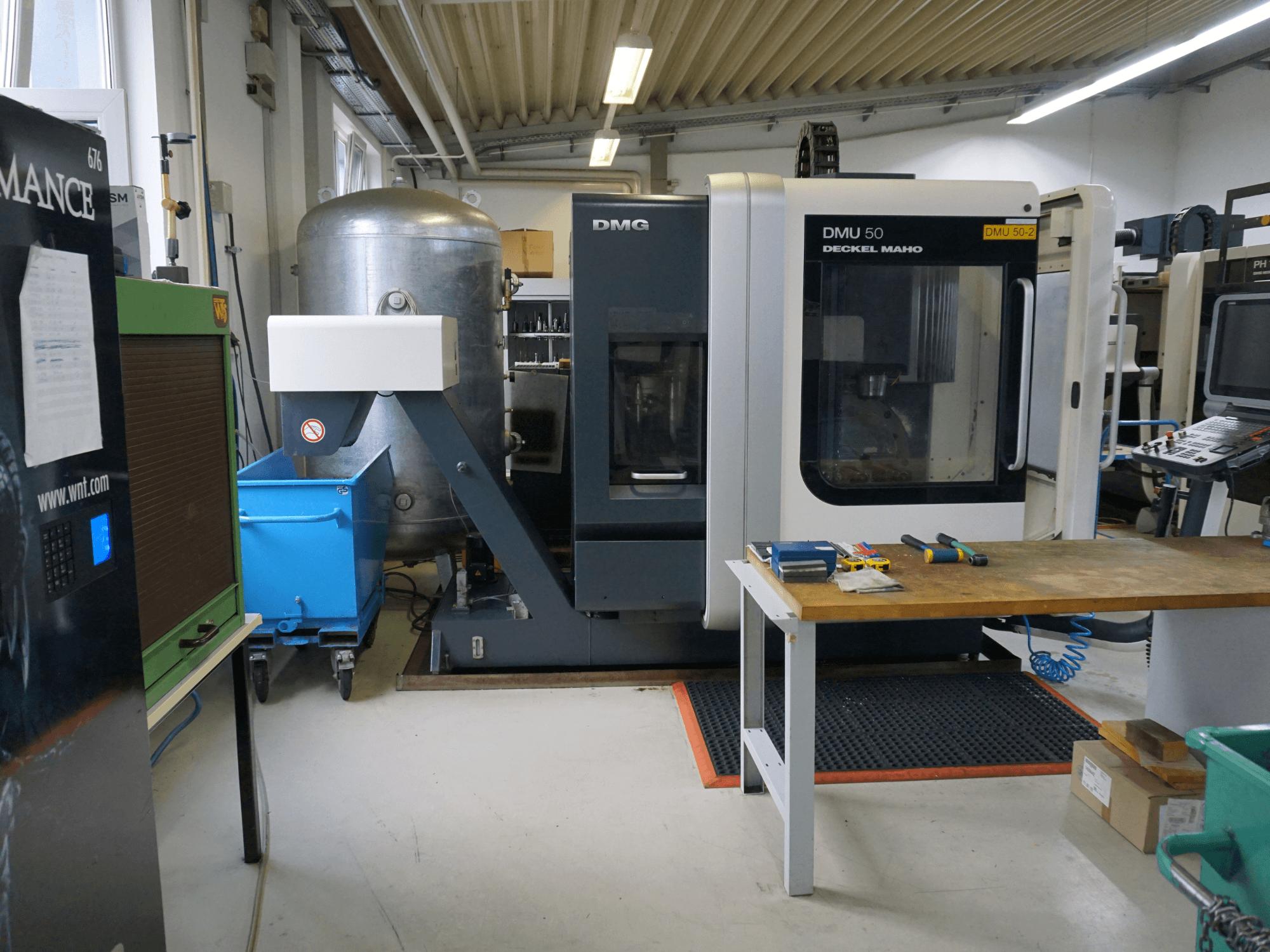

This 3+2-axis DMG DMU 50 was manufactured in 2008, featuring a Heidenhain ITNC 530 control system and a spindle speed of 10,000 rpm. It includes a 30-position tool changer and a rotary table. IIf you are looking to get high-quality milling capabilities, consider the DMG DMU 50 machine we have for sale. Contact us for more information.
Overview
- brand: DMG
- year: 2008
- MODEL: DMU 50
- production hours: 46380
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DMU 50
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Technical Specification
- Number of Tools: 30
- Spindle Power: 19 kW
- Spindle Speed: 14000 RPM
- Taper Size: SK 40
Additional Information
3+2 axis
SK 40 tool holder
NEW DMG Design
Travel X/Y/Z 500/450/400 mm
Rapid traverse 24 m/min
Spindle speed range 20 to 10,000 rpm
Motor spindle 13/9 kW (40/100% duty cycle)
Tool holder SK 40 according to DIN 69871
Tool clamping according to DIN 69872
Half enclosure
3D control
DMG ERGOline® Control
3D control Heidenhain iTNC 530
Operating interface
DMG ERGOline Control, 19" screen
Rotary table with digital drives
Maximum load 200 kg
Positioning operation only!
NC rotary table not possible!
Including automatic hydraulic table clamping, electronic angle display and plane transformation
Tool magazine with 30 magazine positions
Chain magazine with double gripper for SK40 tool holder DIN 62871
Direct linear encoders X/Y/Z
Coolant/air cooling switchover via M function
Chip flushing gun
Electronic handwheel
DXF import: Conversion of DXF files to NC programs, Supported DXF format: AC1009 (AutoCAD R12)
Supported elements: LINE, CIRCLE, ARC
Operating mode 4
Process monitoring in production
Additional cabin door on the right side of the machine
Documentation - 1 (German)
Screen text (German/English)
Packaging: Bottom with foil DMU 50
Dimensions:
310 x 240 x 275 cm
Gross weight: 5,000 kg
HDH control
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
